Auto CQ/Video-DSL Rate Prediction
38 AXS-200/610
Running CQ Auto Tests and Viewing Results

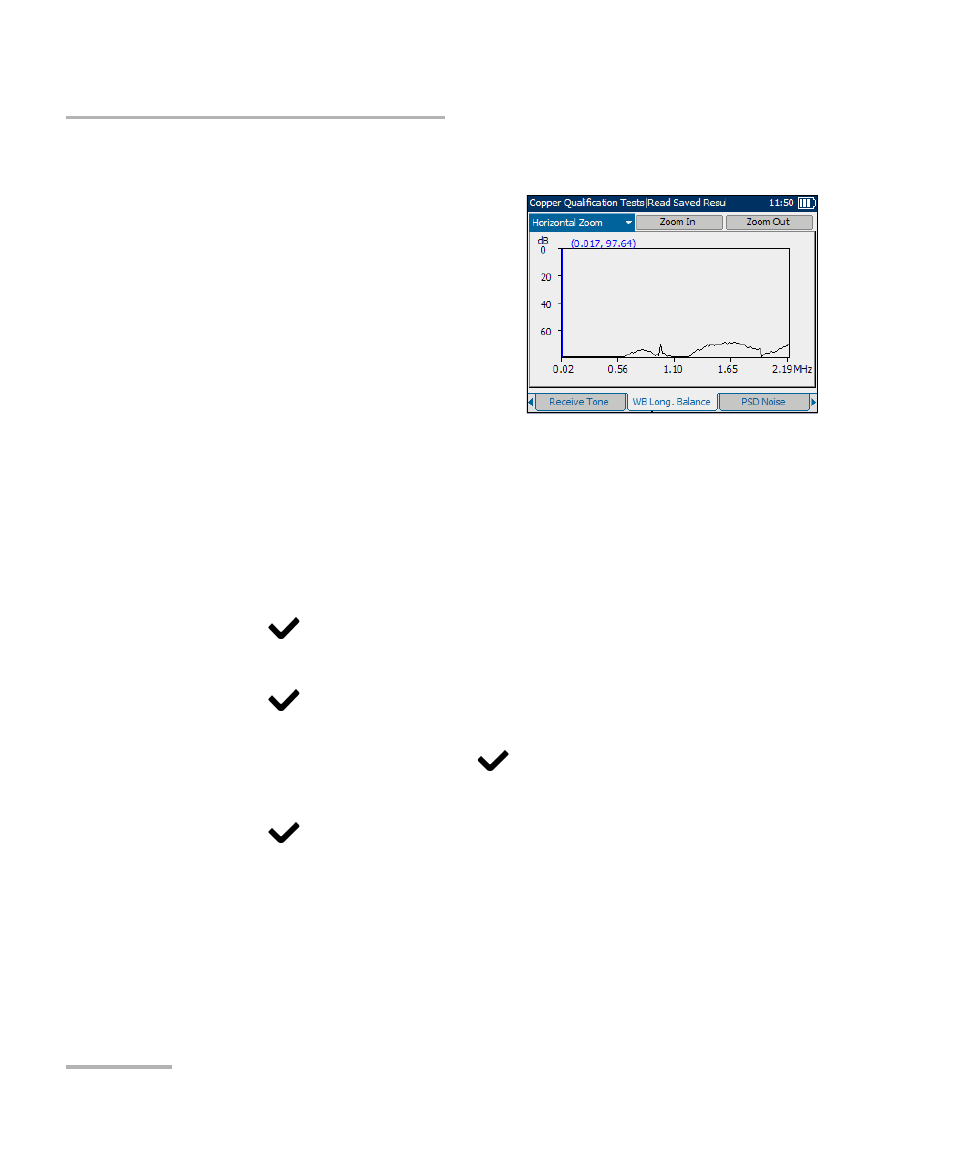

WB Longitudinal Balance
The WB Long. Balance tab displays in
graphical form the measured values
from the wideband longitudinal
balance tests.
The list and buttons on the tab are
described below:
³
(Zoom function List) allows you to
select the desired zoom function
Horizontal Zoom or Vertical
Zoom. The selected function is displayed in the box.
³
Zoom In allows you to increase the level of zoom for the selected
zoom function.
³
Zoom Out allows you to reduce the level of zoom for the selected
zoom function.
To zoom in or out:
1. Press
to display a list of zoom functions.
2. Press the up/down arrow keys to highlight the desired zoom function.
3. Press to select the zoom function.
4. Use the left/right arrow keys to highlight the Zoom In or Zoom Out
button as required, then press .
The graphical display zooms in or out accordingly.
5. Press repeatedly to continue zooming.
To move the screen pointer:
Press the left/right arrow keys to move the screen pointer. The pointer
value updates dynamically.
