Introducing the AXS-200/610 Copper Test Module
2 AXS-200/610
Typical Applications
Typical Applications
The AXS-200/610 can be configured to run the following series of tests to
see if the cable is suitable for carrying digital subscriber line (DSL)
technologies:
³
Auto tests
³
POTS auto test
³
DMM tests
³
VF tests
³
Fault location tests
³
Wideband tests
Cable Connections

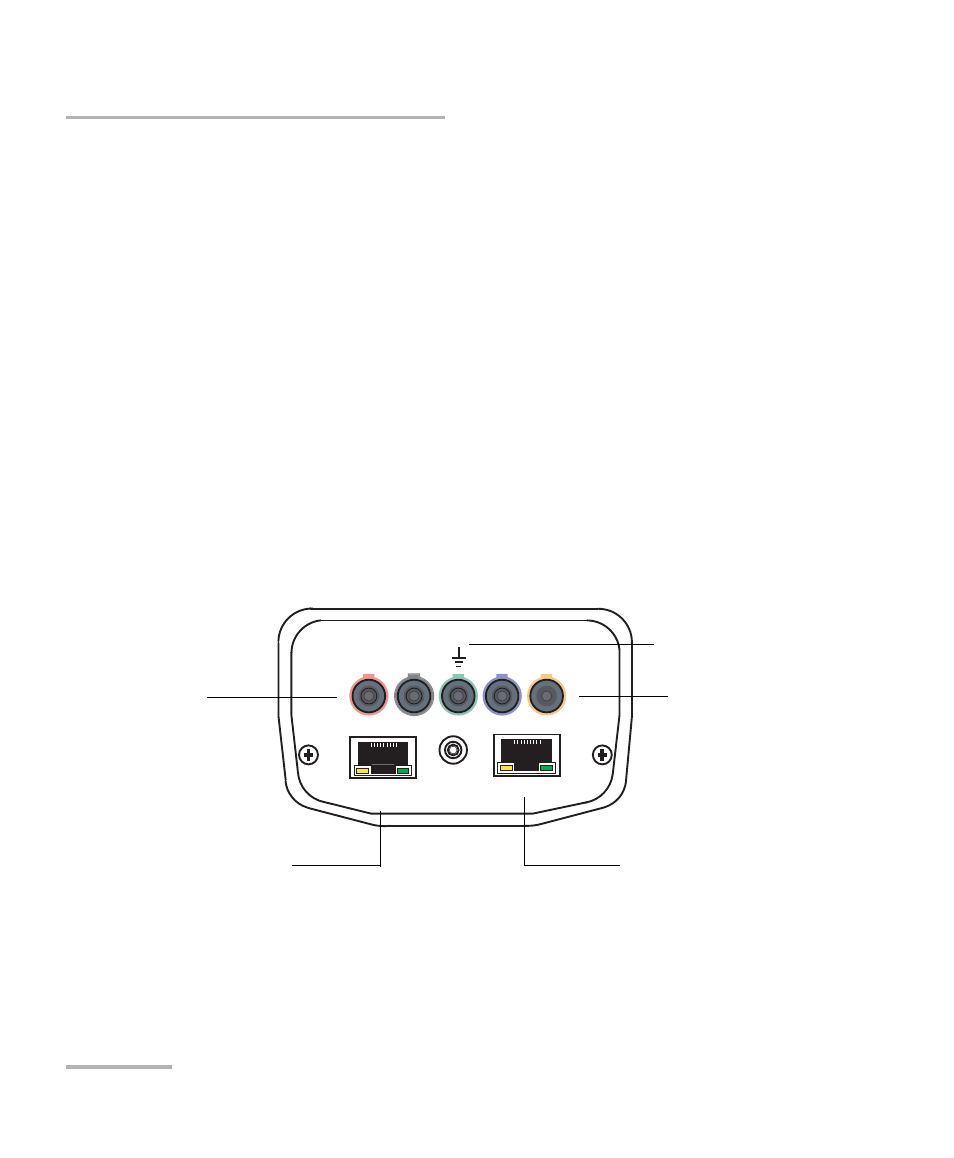

The graphic below shows the connectors on the AXS-200/610 device.
LAN Headset
DSL
WAN
R T R1 T1
Primary tip/ring
3-pin connectors
Secondary tip/ring
3-pin connectors
LAN connector for
Ethernet output WAN connector for Ethernet
and DSL input
Measuring ground
terminal
