1 - 14 System Map: Left View
Quick Start Guide
1

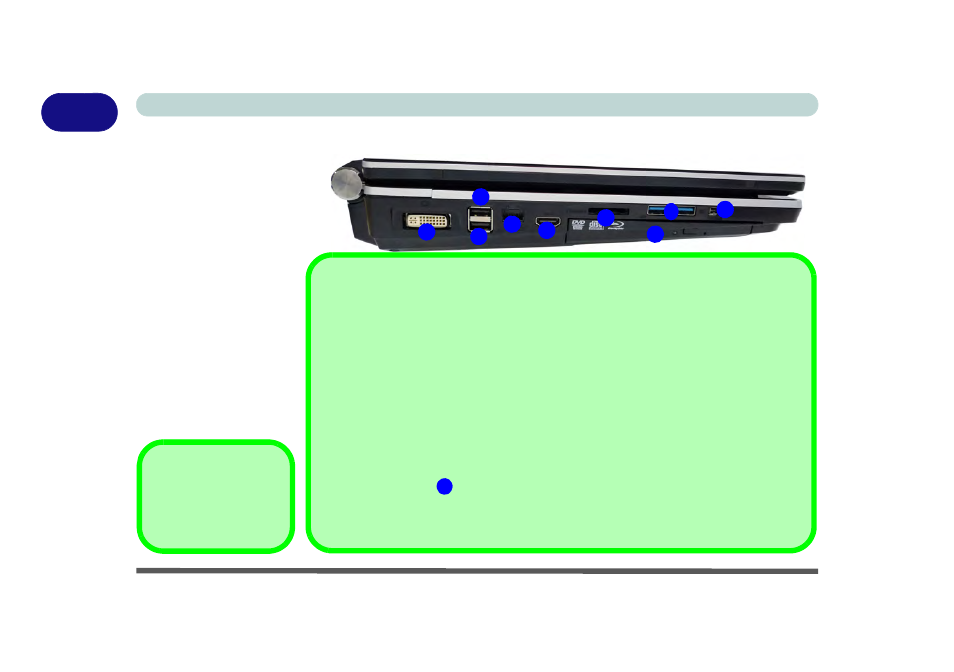

System Map: Left View
Figure 1 - 7
Left View
1. DVI-Out Port
2. USB 2.0 Port
3. USB 2.0 Port
(Powered)
4. RJ-45 LAN Jack
5. HDMI-Out Port
6. Multi-In-1 Card
Reader
7. 2 * USB 3.0 Ports
8. Mini-IEEE 1394a
Port
9. Optical Device
Drive Bay
See Appendix A for a more
detailed description of the
ports & jacks etc.

Mini-IEEE 1394a Port
The Mini-IEEE 1394 port
only supports SELF POW-
ERED IEEE 1394 devices.
1
2
4
5
6
7
9

Multi-in-1 Card Reader
The card reader allows you to use the most popular digital storage card formats:
MMC (MultiMedia Card) / RSMMC
SD (Secure Digital) / Mini SD / SDHC / SDXC
MS (Memory Stick) / MS Pro / MS Duo
HDMI Port
Note that the HDMI Port supports video and audio signals to attached external displays (also see “HD-
MI Audio Configuration” on page B - 18 ). Note that THX TruStudio Pro will be disabled when you are
connecting to an external display through an HDMI connection (see page 7 - 110 ).
USB 3.0 Ports & USB Port Power
USB 3.0 ports are denoted by their blue color; USB 2.0 ports are colored black. Note that the USB 3.0
port requires a driver installation (see
“USB 3.0” on page 4 - 7 ) and is not operational under DOS. The
powered USB 2.0 port can supply power when the system is off but still powered by the AC/
DC adapter plugged into a working outlet, or powered by the battery with a capacity level above
20% (this may not work with certain devices - see page
8 - 12 ). Toggle power to this port by
using Fn + power button.
3
8
3
