System Map: Right & Rear Views 1 - 13

Quick Start Guide

1

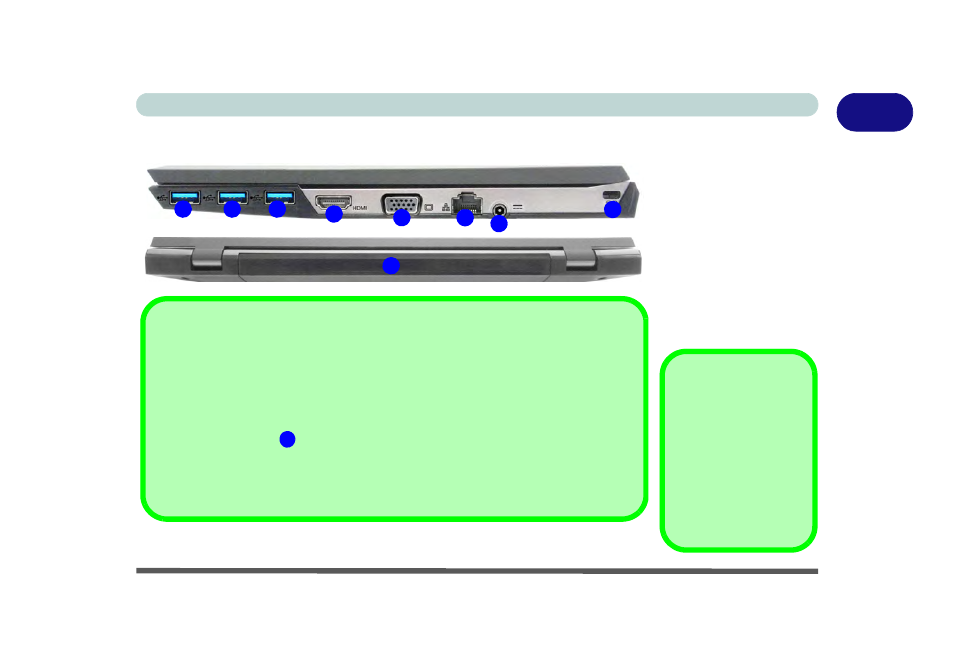

System Map: Right & Rear Views

Figure 1 - 6

Right & Rear Views

1. 1 * Powered (AC/

DC) USB 3.0 Port

2. 2 * USB 3.0 Ports
3. HDMI-Out Port
4. External Monitor

Port

5. RJ-45 LAN Jack
6. DC-In Jack
7. Security Lock Slot
8. Battery

HDMI Port

Note that the HDMI Port
supports video and audio
signals to attached external
displays. Note that Sound
Blaster audio will be dis-
abled when you are con-
necting to an external
display through an HDMI
connection (see page

7 -

37

).

1

3

6

4

5

8

7

USB 3.0 Port OR USB 2.0 Port

This model includes 1 * USB 2.0 port and 3 * USB 3.0 ports (including one AC/DC powered
USB 3.0 port). USB 3.0 ports are denoted by their

blue color

; USB 2.0 ports are colored

black.

Powered USB 3.0 Port

The powered USB 3.0

port can supply power (for charging devices only, not for op-

erating devices) when the system is off but still powered by the AC/DC adapter plugged
into a working outlet, or powered by the battery with a capacity level above 20% (this may
not work with certain devices - see page

8 - 12

). Toggle power to this port by using Fn +

power button.

1

2

2
