Moving a LonMaker Shape
The MPR-50 shape can be moved within a LonMaker drawing; the MPR-50 shape
moves as a unit that includes the five router shapes, the Monitor shape, and the
internal channel.
• To move the MPR-50 shape within a subsystem (page), drag the shape to its
desired location.
• To move an individual router to another subsystem, right-click the shape to move
and then click Change Subsystem on the shortcut menu.
Note: You cannot move LonMaker shapes using Visio's cut and paste commands.
Commissioning an MPR-50 Router

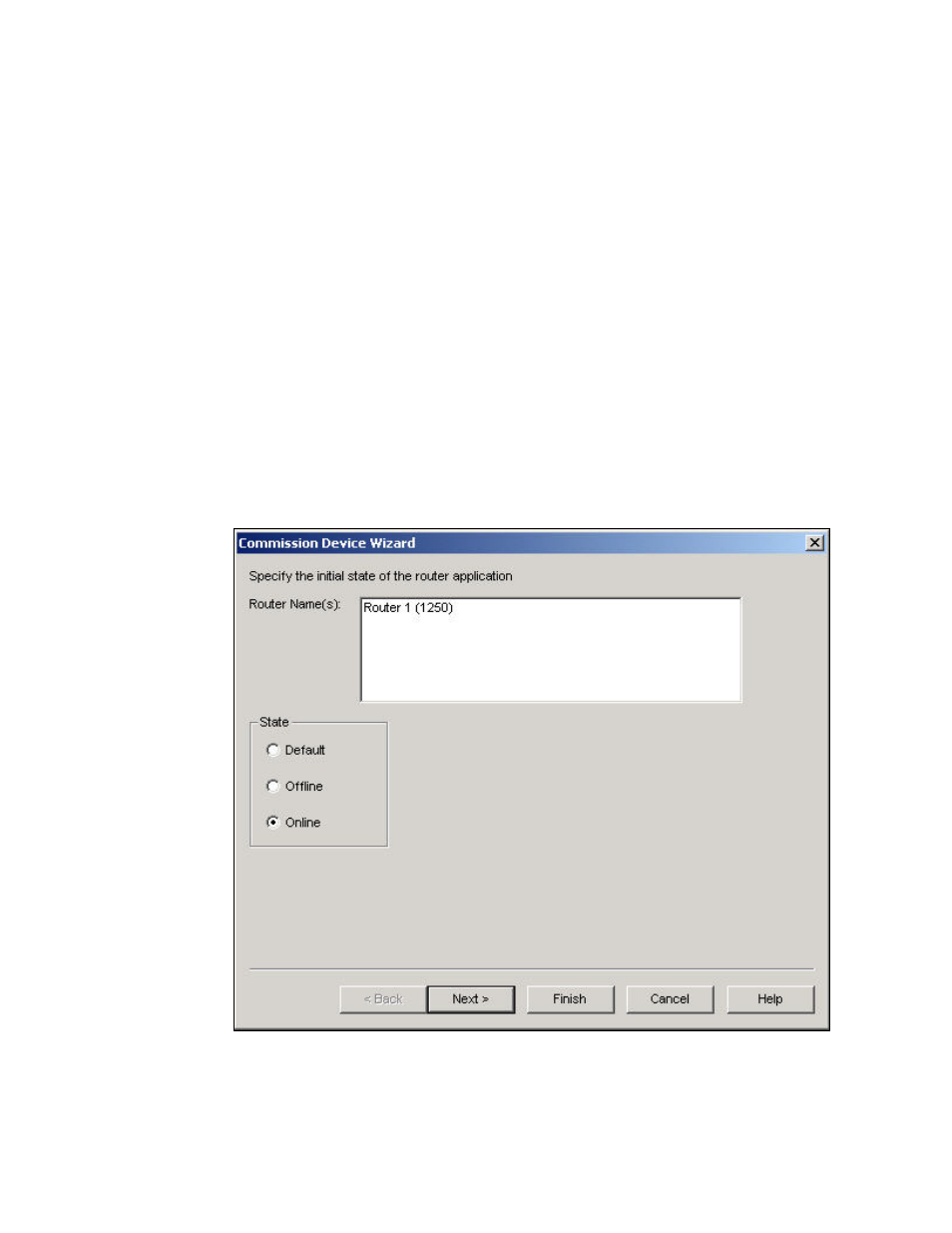

1. Right-click the shape of the router that you have connectivity to from your
LonMaker tool, and then click Commission. The Commission Device Wizard
appears. Note that you may have connectivity to any of the five routers—it is not
necessarily Router 1 as shown below.
2. Select whether the router application will be online or offline upon
commissioning. The router can forward packets between its channels only when
it is online. Most end-users will want to choose online.
