For mounting purposes, the following figure provides further dimensions of the

router. All measurements below are in millimeters.

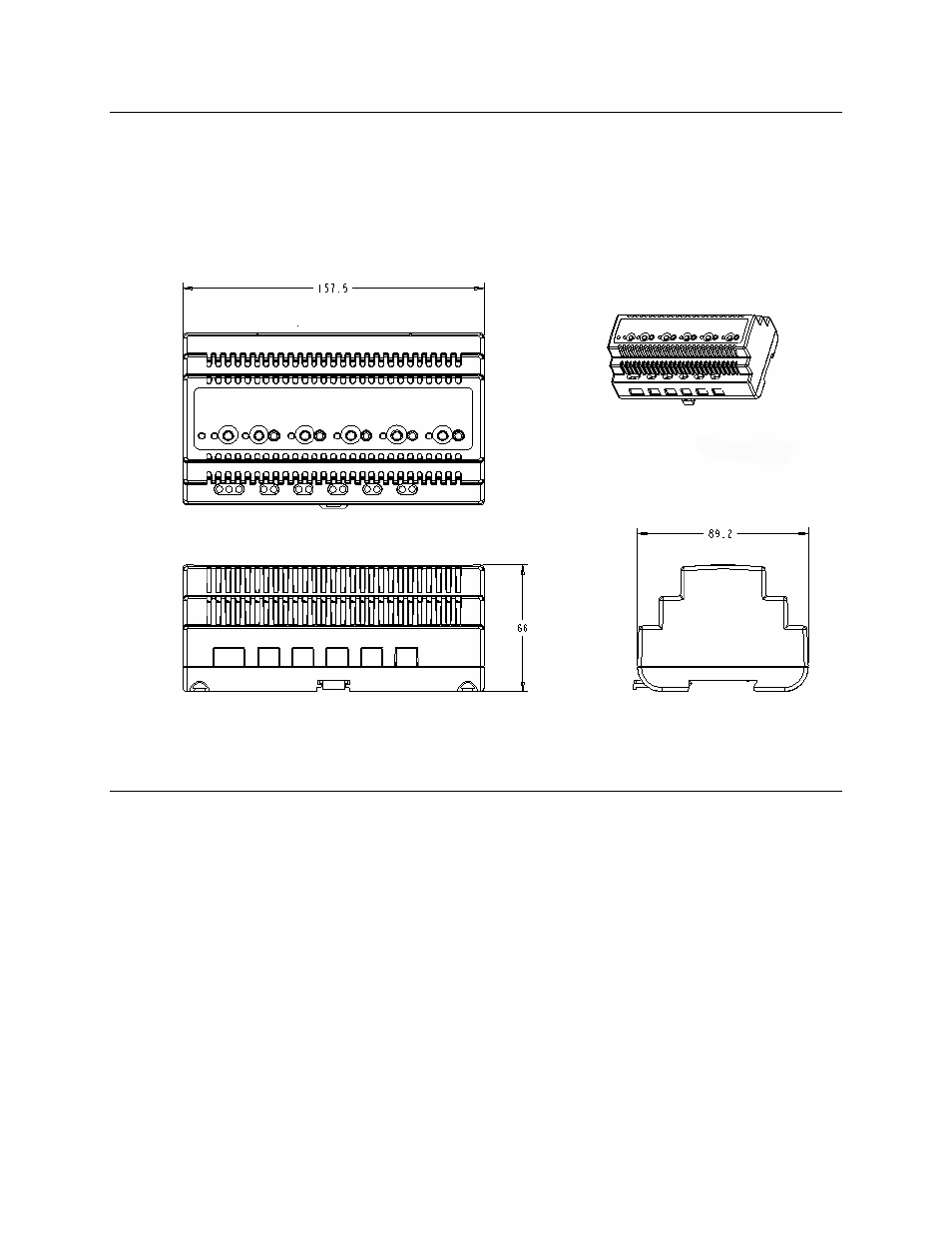

Figure 2.3 MPR-50 Multi-Port Router Dimensions

The screw terminals for connecting power and network wires are located on the

bottom edge of the enclosure. The screw terminals accept 0.34–4.0 mm

(22–

12AWG) gauge wire. The optimum tightening torque for the screw terminals is

0.75mm (6 lbs. in.) maximum. The ideal flathead screwdriver tip width for use

with the screw terminal connectors is 3mm (0.12”). Wires should be stripped to a

length of 7mm (0.28”). A soldering iron may be used to tin the stripped lengths of

any stranded wires to prevent fraying and inadvertent contact with adjacent

terminals, although this is not required.
