Echelon IP-852 Channel - Manual (Page 15)

IP-852 Channel User’s Guide 7

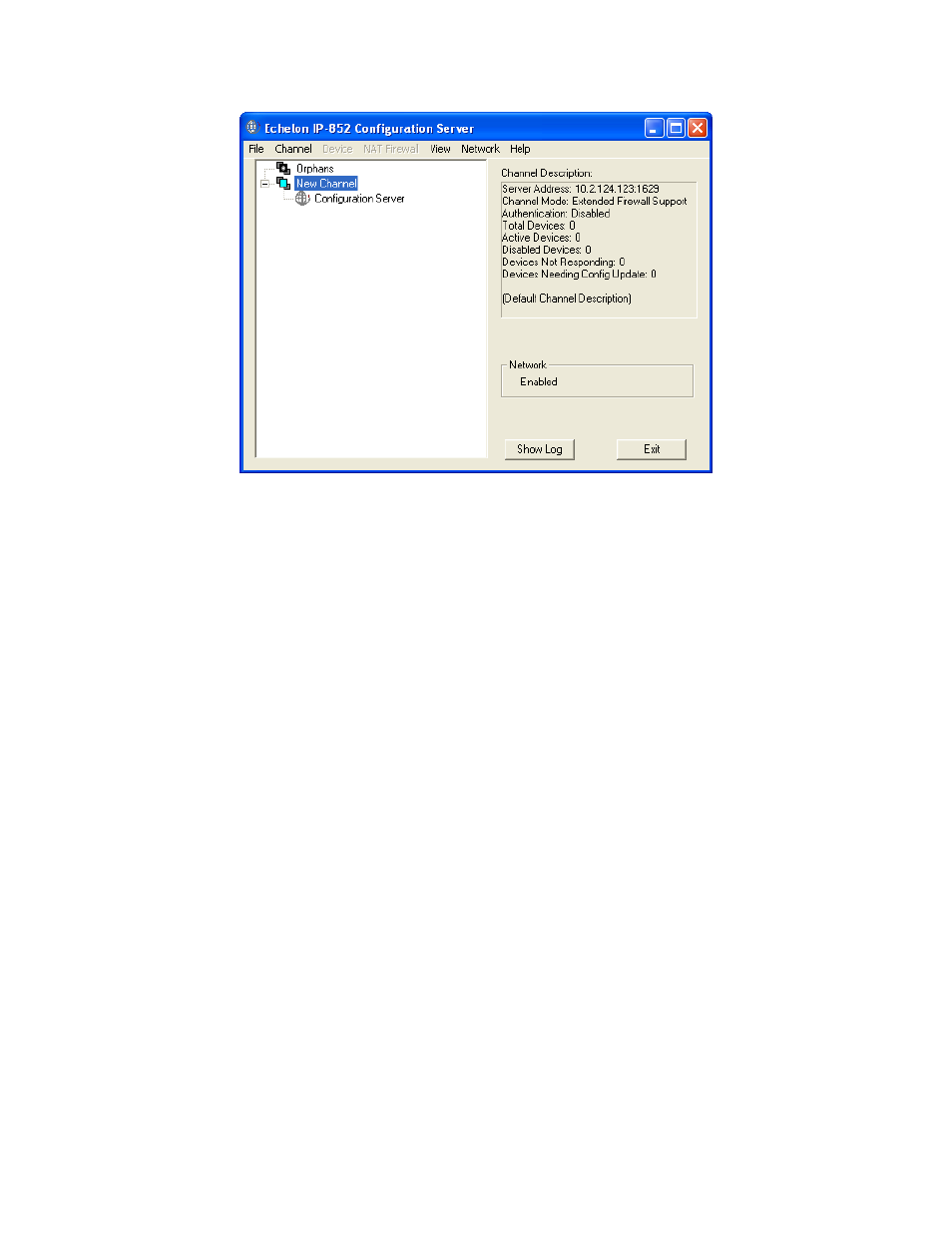

Figure 2.2 Echelon IP-852 Configuration Server
4. Verify that the IP-852 Configuration Server is attached to your IP network. The
Network status box should indicate Enabled. If it does not, select Enabled from
the Network menu. The IP-852 Configuration Server should correctly detect and
display the IP address of your computer in the Channel Description window.
To verify the IP-852 Configuration Server computer’s IP address, click Network and
then click Settings. The Network Settings dialog opens. Confirm that the IP
address of the IP-852 Configuration Server is shown in the IP Address or Host
Name property as shown in Figure 2.3.
