M4FM User Manual
Meters Tab

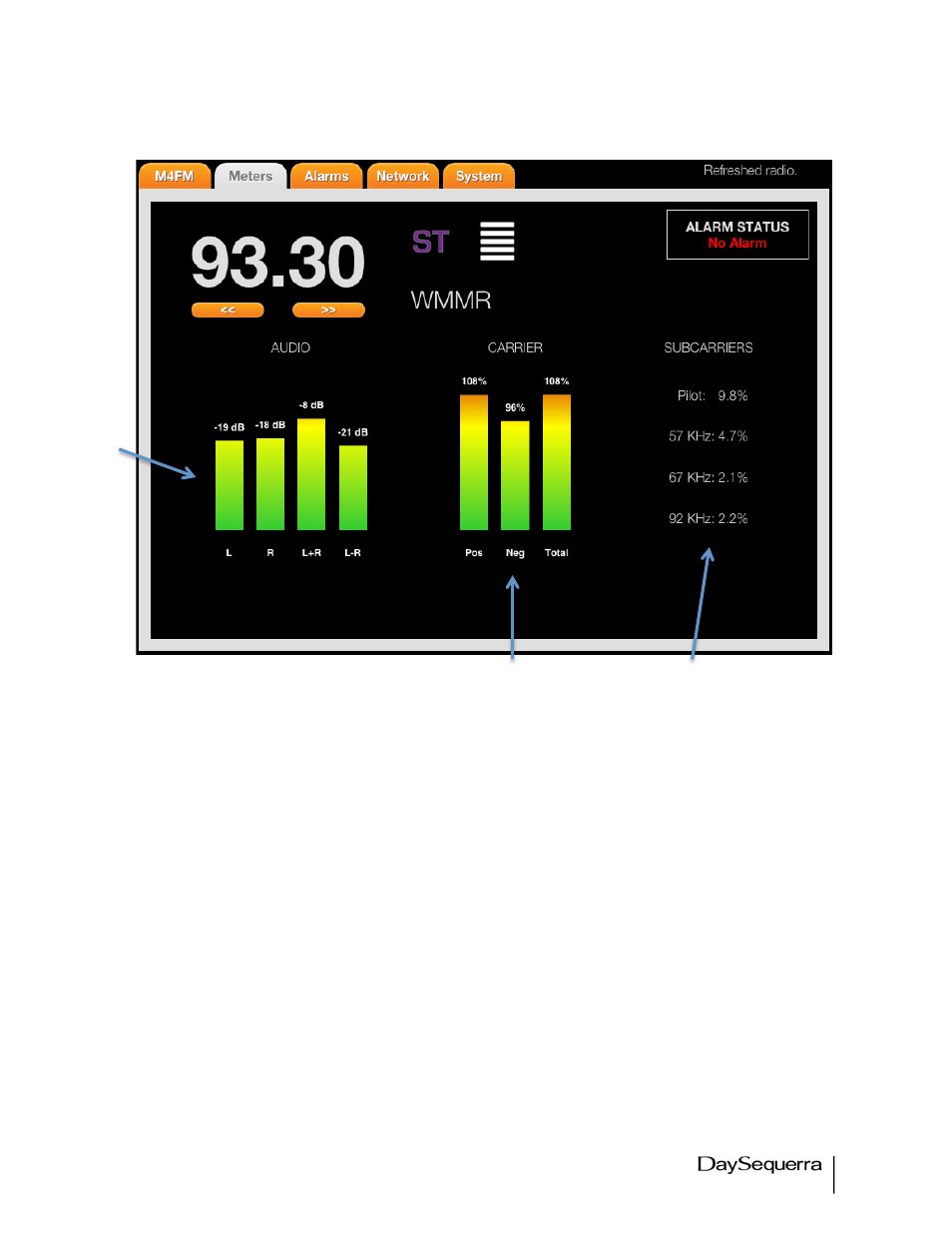

Figure 18.
1. Audio Measurements (Bargraph) – displays Left, Right, Left + Right and Left – Right channels
in dB. Integer values of these measurements are available in the M4FM’s meters submenu.
2. Carrier Measurements (Bargraph) – displaying Positive, Negative and Total Positive +
Negative in percent. Integer values of these measurements are available in the M4FM’s meters
submenu.
3. Subcarrier Measurements (Integer) – displaying Pilot, 57 KHz, 67 KHz, and 92 KHz levels in
percent
