M4FM User Manual

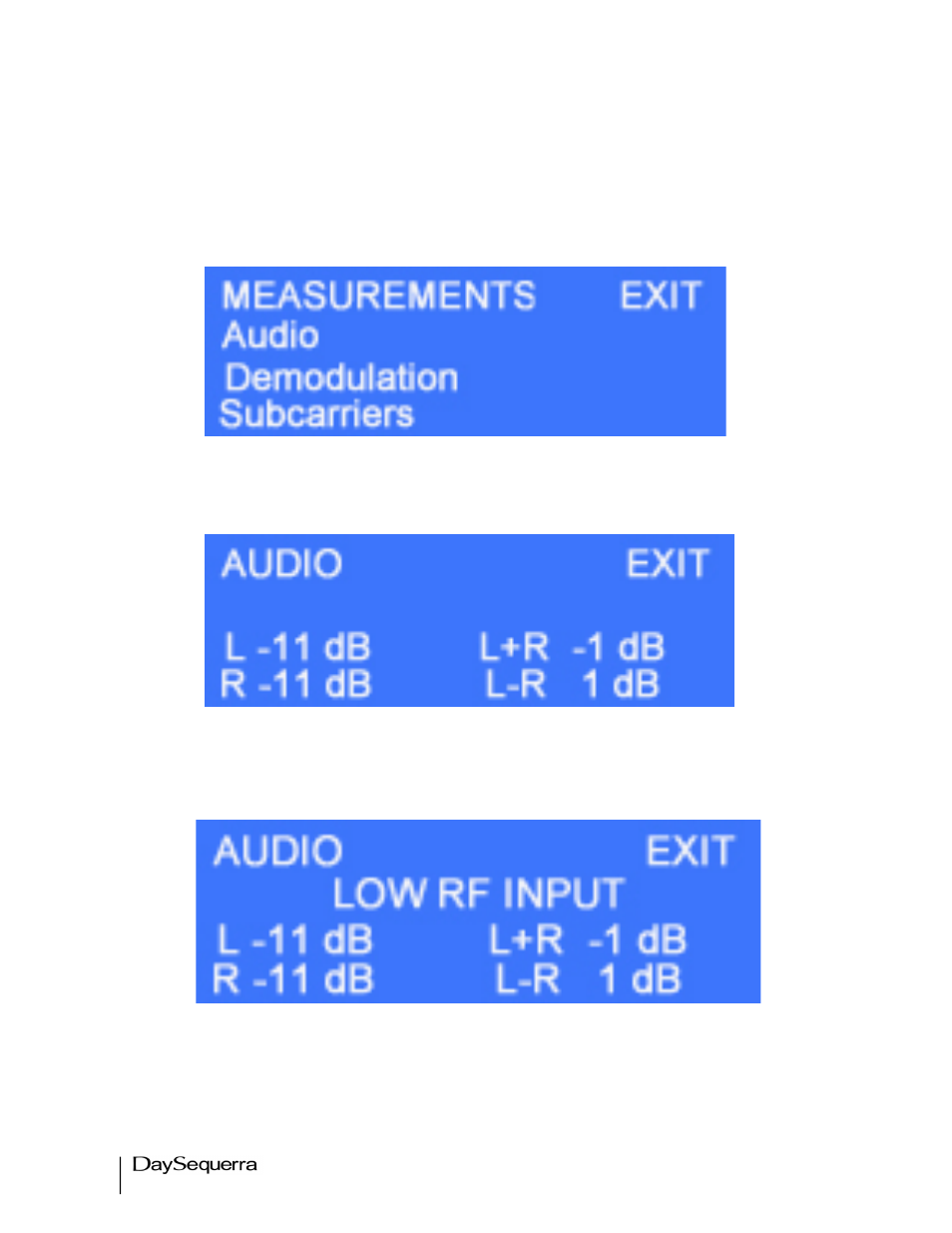

Modulation Measurements
A series of read-only submenus displaying audio, demodulation and subcarrier measurements. To exit
to the previous menu enter selection mode and toggle the arrow up to EXIT and press the CENTER
button to revert back to the home screen. (Graphical representations of these are available in the
meters of the webserver)
Figure 4.
Audio
Figure 5.
Integer values for Left, Right, Left + Right and Left – Right are displayed in dB. This is a read-only
submenu.
Figure 6.
