Denon DVD-3800 - Manual (Page 9)

9
ENGLISH

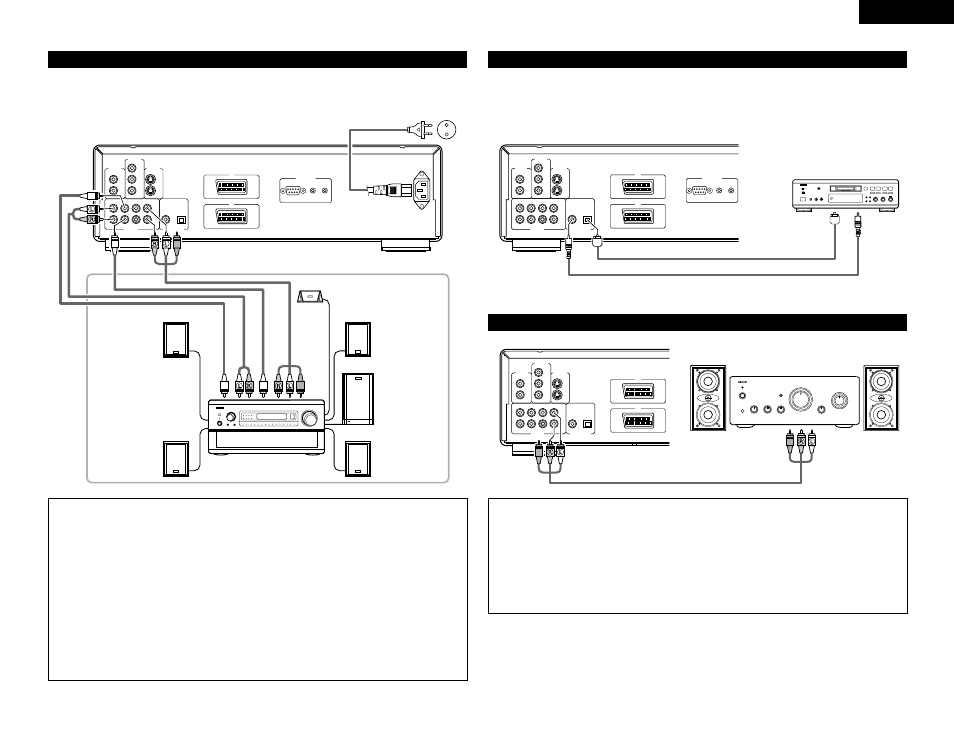

(6) Connecting to a Digital Recorder (MD Recorder, DAT Deck, etc.)
RS-232C ROOM TO ROOM
IN OUT
REMOTE CONTROL
DIGITAL OUT
COAXIAL
FR1 FR2 SW SR
FL1 FL2 C
1
2
1
2
P B /C B
Y
P R /C R
SL OPTICAL
(PCM / BIT STREAM) AUDIO OUT
VIDEO OUT S-VIDEO OUT
COMPONENT
VIDEO OUT
AV1
AV2
8 9
B
✽ Set the “AUDIO SETUP” default setting as shown below. (See page 18.)
• “DIGITAL OUT”
→ “PCM”
“LPCM (44.1 kHz / 48 kHz)” → “ON”
Playing DVDs with incorrect settings may result noise that could damage your ears or the speakers.
DVD-3800
75 Ω /ohms pin-plug cable (commercially available)
Optical fiber cable (commercially available)
Digital audio
input
connector
(COAXIAL)
Digital audio input
connector (OPTICAL)
(7) Connecting to a Stereo Component
DIGITAL OUT
COAXIAL
FR1 FR2 SW SR
FL1 FL2 C
1
2
1
2
P B /C B
Y
P R /C R
SL OPTICAL
(PCM / BIT STREAM) AUDIO OUT
VIDEO OUT S-VIDEO OUT
COMPONENT VIDEO OUT
AV1
AV2
DVD-3800
Stereo component
NOTES:
• When connecting to a 2-channel audio stereo device, set “AUDIO CHANNEL” under “AUDIO SETUP” at
“SETUP” to “2 CHANNEL” (see page 17). For multi-channel sources, the signals are down-mixed into two
channels (analog). (Only the front left and right channels are output for sources for which down-mixing is
prohibited.)
• Set “LPCM (44.1 kHz/48 kHz)” under “AUDIO SETUP” at “SETUP” to “OFF”. (See page 18.)
(If set to “ON”, analog audio signals converted to 48 kHz will be output for linear PCM or packed PCM
sources.)
• Set “DIGITAL OUTPUT” at “PURE DIRECT MODE” to “OFF”. (See page 23.)
(If set to “ON”, analog audio signals converted to 96 kHz/88.2 kHz will be output when playing sources
recorded at 196 kHz/176.4 kHz.)
(5) Connecting a basic 5.1-channel surround system
Analog 5.1-channel audio signals can be output from the DVD-3800.
The multichannel audio signals recorded in packed PCM can be played when an AV amplifier equipped with
analog 5.1-channel audio inputs is connected.
AC IN
RS-232C ROOM TO ROOM
IN OUT
REMOTE CONTROL
DIGITAL OUT
COAXIAL
FR1 FR2 SW SR
FL1 FL2 C
1
2
1
2
P B /C B
Y
P R /C R
SL OPTICAL
(PCM / BIT STREAM) AUDIO OUT
VIDEO OUT S-VIDEO OUT
COMPONENT
VIDEO OUT
AV1
AV2
PHONES DIRECT STEREO
ANALOG EXT. IN
DOLBY SURROUND DTS SURROUND WIDE SCREEN CINEMA / MUSIC 6.1 / 7.1 SURROUND VIDEO ON / OFF
STATUS
M-ZONE 1
FUNCTION CONTROL
INPUT
MODE
5CH / 7CH
STEREO DSP SIMULATION TONE
DEFEAT
MODE
SELECT
REC / M-ZONE 2
SURROUND MODE
INPUT REC SELECT / M-ZONE
MULTI FUNCTION
DVD-3800
To power outlet
Front speaker (left)
Center speaker
Front speaker (right)
Subwoofer
Surround speaker (right)
AV amplifier with 5.1-channel
input terminals
Surround speaker (left)
FRONT SUBWOOFER SURROUND CENTER
NOTES:
• For multi-channel connections, set “AUDIO CHANNEL” under “AUDIO SETUP” at “SETUP” to “MULTI
CHANNEL” and make the “SPEAKER CONFIGURATION”, “CHANNEL LEVEL” and “DELAY TIME”
settings.
• Set “LPCM (44.1 kHz/48 kHz)” under “AUDIO SETUP” at “SETUP” to “OFF”. (See page 18.)
(If set to “ON”, analog audio signals converted to 96 kHz/88.2 kHz will be output when playing sources
recorded at 196 kHz/176.4 kHz.)
• When playing DVDs that are not copyright-protected and the unit is set to output digital and analog audio
signals simultaneously, for some discs only the signals below 96 kHz for the front two channels will be
output for the analog part.
When playing DVDs that are not copyright-protected, set “DIGITAL OUTPUT” at “PURE DIRECT MODE”
to “OFF”. (See page 23.)
• When playing DVDs recorded in MPEG audio format, the audio signals are down-mixed to 2 channels for
output.
• With the DVD-3800, we recommend turning the digital output off and only outputting analog signals in
order to keep interference from the digital output circuitry to the minimum and allow you to enjoy high bit,
high sampling frequency, high quality multi-channel sound.
