Denon DVD-3800 - Manual (Page 17)

17
ENGLISH

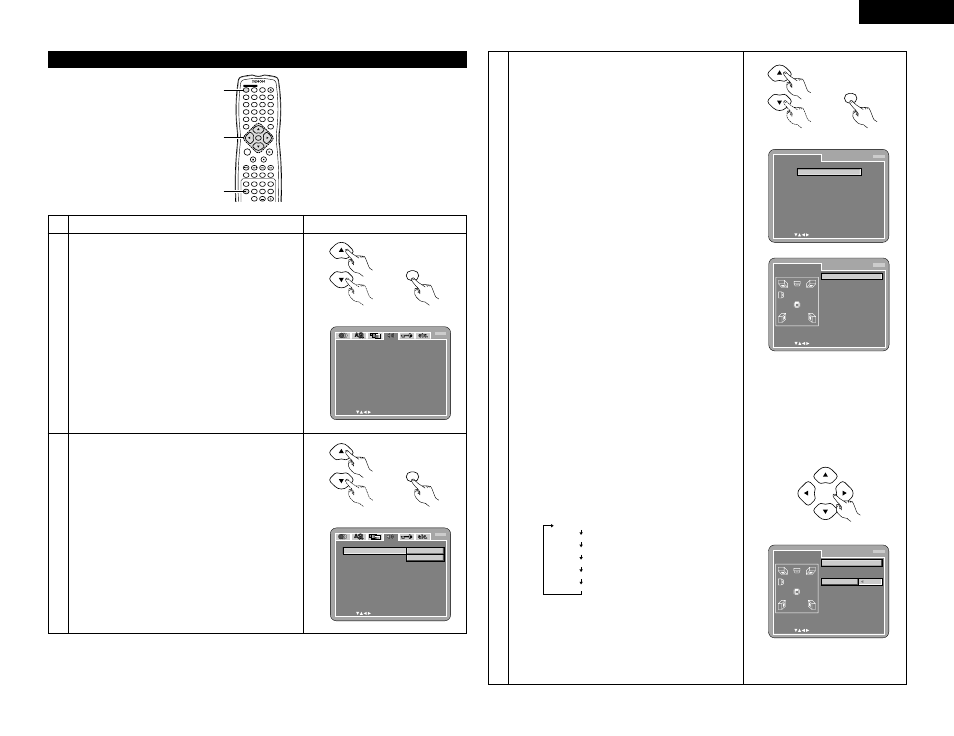

When “AUDIO SETUP” is selected
4 5 6
ENTER
ON OFF
REMOTE CONTROL UNIT RC-553
TOP MENU DISPLAY
MARKER RANDOM
PAGE
A-B
ZOOM
DIMMER
REPEAT
SETUP
NTSC / PAL OPEN / CLOSE
CALL RETURN
SKIP SLOW / SEARCH
POWER
ANGLE SUBTITLE AUDIO SEARCH MODE
PLAY
STILL /
PAUSE STOP
PIC.ADJ
1
7
0
2
8
+10
3
9
PROG / DIR
V.S.S.
CLEAR
P.D.MEMORY
MENU
1, 2, 3
1
1
2
Use the • and ª cursor buttons to select the desired
setting, then press the ENTER button.
AUDIO CHANNEL
Use this to adjust for the connected speaker systems.
DIGITAL OUT
Use this to select the digital output’s signal format.
LPCM (44.1 KHz / 48 kHz)
Use this to set the digital audio output when playing DVDs
recorded in linear PCM audio.
BASS ENHANCER (2 CHANNEL)
Set whether or not to output audio signals from the
subwoofer when playing two-channel audio signals.
3
Use the • and ª cursor buttons to select the desired
setting, then press the ENTER button.
q When “AUDIO CHANNEL” is selected:
B Use the • and ª cursor buttons to select the item to
be set, then press the ENTER button.
MULTI CHANNEL (Factory default)
Select this for systems in which three or more
speakers are connected.
When MULTI CHANNEL is set, the speaker settings
(SPEAKER CONFIGURATION), speaker output level
adjustment (CHANNEL LEVEL) and speaker distances
(DELAY TIME) can be set.
2 CHANNEL
Select this for systems in which only two speakers
are connected.
1 See page 12.
Remote control unit
ENTER
Remote control unit
AUD I O SE TUP
SE L EC T : DE C I S I ON : ENT E R BUT TON
AUD I O CHANNE L
D I G I TAL OUT
L PCM (4 4 . 1 kH z / 4 8 kH z )
E X I T SE TUP
BASS ENHANCE R(2 CHANNEL)
MUL T I CHANNE L
NORMAL
OF F
OF F
B
Remote control unit
ENTER
Remote control unit
AUD I O SE TUP
SE L EC T : DE C I S I ON : ENT E R BUT TON
AUD I O CHANNE L
D I G I TAL OUT
L PCM (4 4 . 1 kH z / 4 8 kH z )
E X I T SE TUP
BASS ENHANCE R(2 CHANNEL)
MUL T I CHANNE L
2 CHANNE L
B
3
B When “MULTI CHANNEL” is selected, use the • and ª cursor
buttons to select the item to be set, then press the ENTER button.
SPEAKER CONFIGURATION
Use this to select the types of the different speakers.
CHANNEL LEVEL
Use this to adjust the output level of the different speakers.
DELAY TIME
Use this to set the distance from the different
speakers to the listening position.
✽ To exit the SPEAKER SETUP mode
Use the ª cursor button to select “AUDIO SETUP” then
press ENTER button.
B When “SPEAKER CONFIGURATION” is selected,
use the • and ª cursor buttons to select the speaker
to be set then press the ENTER button.
• The type of speaker used for the front speakers,
center speaker, subwoofer and surround speakers can
be set. Use the • and ª cursor buttons to select the
speaker type, then press the ENTER button.
LARGE: Select this when a large speaker is connected.
SMALL: Select this when a small speaker is connected.
NONE: Select this when no speaker is connected.
YES:
Select this when a subwoofer is connected.
NO: Select this when no subwoofer is connected.
When “FILTER” is selected:
ON (Factory default)
Select this when connecting a subwoofer, for example
for playback in the Dolby Digital or DTS modes.
Set to “ON” for normal multi-channel playback.
OFF
Set this to play DVD audio 6-channel sources recorded
with “all channel full band frequency”.
When “OFF” is set, the speaker size is set to “LARGE” for all
the speakers and the subwoofer setting is set to “YES”.
To play this type of software, read the software’s
instructions carefully and make analog connections.
✽ Press the RETURN button to return to the
“SPEAKER SETUP” menu.
B When “CHANNEL LEVEL” is selected, use the • and ª
cursor buttons to select the speaker to be adjusted, then
use the
0 and 1 cursor buttons to set the level.
TEST TONE
• Use the
0 and 1 cursor buttons to select off, 2 seconds,
5 seconds or 10 seconds for the test tone, then output
the test tone using the procedure described below.
• The volume level output from the front speakers (left and
right channels), center speaker, surround speakers (left
and right channels) and subwoofer can be adjusted.
• The volume level can be adjusted between 0 and -10
dB in steps of 1 dB.
✽ Press the RETURN button to return to the
“SPEAKER SETUP” menu.
Front speaker (L)
Center speaker
Front speaker (R)
Surround speaker (R)
Surround speaker (L)
Subwoofer
Remote control unit
Remote control unit
ENTER
Remote control unit
SP EAKE R SE TUP
SE L EC T : DE C I S I ON : ENT E R BUT TON
SPE AK ER CONF I GURAT I ON
CHANNE L L E VE L
DE L AY T I ME
AUD I O SE TUP
B
SP EAKE R SE TUP
SE L EC T : DE C I S I ON : ENT E R BUT TON
SPE AK ER CONF I GURAT I ON
F RONT SP
CENT ER SP
SUBWOOF ER
SURROUND SP
L ARGE
L ARGE
Y ES
L ARGE
F I L T ER ON
B
SP EAKE R SE TUP
SE L EC T : DE C I S I ON : ENT E R BUT TON
CHANNE L L E VE L
T E S T TONE
F RONT L c h
CENT ER
F RONT R c h
OF F
0 dB
0 dB
0 dB
0 dB
0 dB
0 dB
SURROUND R c h
SURROUND L c h
SUBWOOF ER
B
