ENGLISH

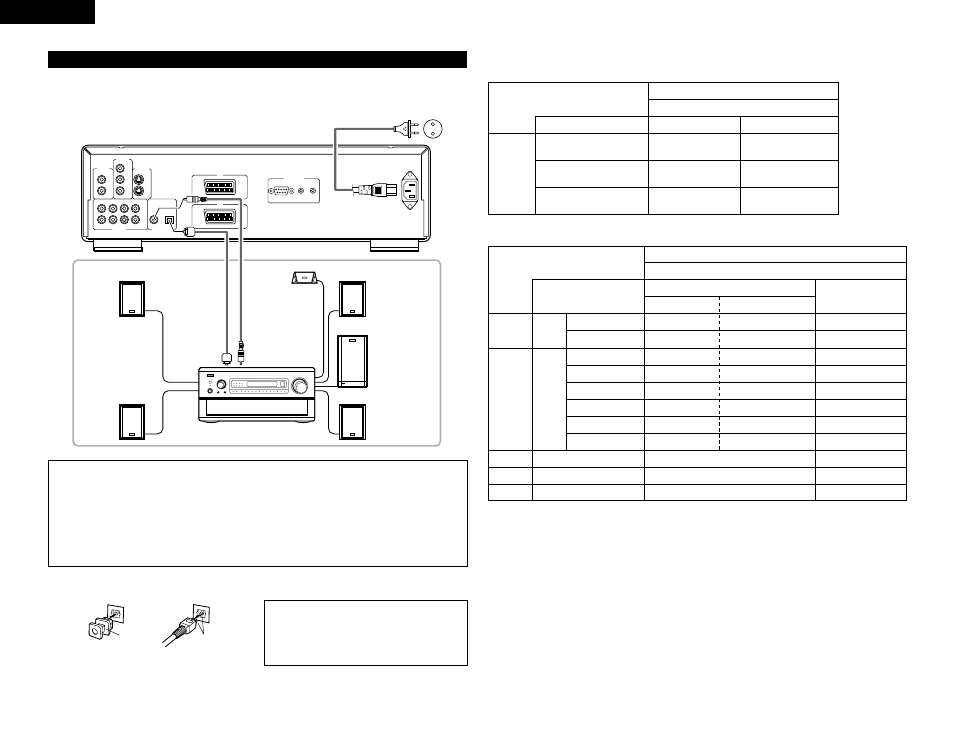

(4) Connecting to a AV amplifier with a Built-in decoder
When DVDs recorded in Dolby Digital or DTS are played, Dolby Digital or DTS bitstream signals are output from
the DVD player’s digital audio output connectors. If a Dolby Digital or DTS decoder is connected, you can
achieve sound with the power and sense of presence of a movie theater or concert hall.
AC IN
RS-232C ROOM TO ROOM
IN OUT
REMOTE CONTROL
DIGITAL OUT
COAXIAL
FR1 FR2 SW SR
FL1 FL2 C
1
2
1
2
P B /C B
Y
P R /C R
SL OPTICAL
(PCM / BIT STREAM) AUDIO OUT
VIDEO OUT S-VIDEO OUT
COMPONENT VIDEO OUT
AV1
AV2
PHONES DIRECT STEREO
ANALOG EXT. IN
DOLBY SURROUND DTS SURROUND WIDE SCREEN
CINEMA / MUSIC 6.1 / 7.1 SURROUND VIDEO ON / OFF
STATUS
M-ZONE 1
FUNCTION CONTROL
INPUT
MODE
5CH / 7CH
STEREO DSP SIMULATION
TONE
DEFEAT
MODE
SELECT
REC / M-ZONE 2
SURROUND MODE
INPUT REC SELECT / M-ZONE
MULTI FUNCTION
DVD-3800
Digital audio input
connector
(OPTICAL)
Optical fiber cable
(commercially available)
75 Ω /ohms pin-plug
cable
(commercially available)
Front speaker (left)
Center speaker
Front speaker (right)
Digital audio input
connector (COAXIAL) Subwoofer
Surround speaker (left)
AV amplifier with a built-in decoder
(AV control center)
Surround speaker (right)
2 Connecting an optical fiber cable (commercially available) to the digital audio input connector (OPTICAL)
Dust cap Line up in proper direction
Remove the dust cap, line up the cable in the proper
directly, then insert it securely as far as it goes.
NOTE:
• Store the dust cap in a safe place, and be careful
not to lose it.
When not using the terminal, attach the cap to
protect the terminal from dust.
NOTES:
• Harsh noise that could harm your ears or damage the speakers is generated when a DVD recorded in DTS
is played while using a decoder, etc., that is not DTS-compatible.
• When playing copyright-protected linear PCM or packed PCM DVDs, in consideration of copyrights, no
digital signals are output for sources exceeding 48 kHz/16 bits. When playing such sources, either set
“LPCM (44.1 kHz/48 kHz)” under “AUDIO SETUP” at “SETUP” to “ON” (see page 18) or make analog
connections. (See page 9.)
• When making digital connections to an AV amplifier that is not compatible with 96 kHz/88.2 kHz signals,
set “LPCM (44.1 kHz/48 kHz)” under “AUDIO SETUP” at “SETUP” to “ON”. (See page 18.)
To power outlet
8
2 Sound output from the DVD-3800’s digital audio output connectors
In the case of bit stream output
NORMAL Audio recording format
Dolby Digital
DTS
MPEG Audio
DIGITAL OUT
2 channels PCM
(48 kHz / 16 bit)
2 channels PCM
(48 kHz / 16 bit)
2 channels PCM
(48 kHz / 16 bit)
PCM
DVD video
Dolby Digital bitstream
DTS bitstream
2 channels PCM
(48 kHz / 16 bit)
Settings
In the case of PCM output
OFF
DVD
audio
Audio recording format
Linear
PCM
Video CD
Music CD
MP3 CD
44.1 kHz / 16 bit PCM
44.1 kHz / 16 bit PCM
192 kHz / 16 ~ 24 bit
176.4 kHz / 16 ~ 24 bit
MPEG 1
44.1 kHz / 16 bit Linear PCM
MP 3 (MPEG-1 Audio Layer 3)
96 kHz / 16 ~ 24 bit
88.2 kHz / 16 ~ 24 bit
48 kHz / 16 ~ 24 bit
44.1 kHz / 16 ~ 24 bit
96 kHz / 16 ~ 24 bit
48 kHz / 16 ~ 24 bit
LPCM SELECT
48 kHz / 16 bit PCM
44.1 kHz / 16 bit PCM
48 kHz / 16 bit PCM
44.1 kHz / 16 bit PCM
48 kHz / 16 bit PCM
44.1 kHz / 16 bit PCM
48 kHz / 16 bit PCM
48 kHz / 16 bit PCM
ON
DVD
video
44.1 kHz / 16 bit PCM
44.1 kHz / 16 bit PCM
No output data
No output data
No output data
No output data
No output data (*1)
No output data (*2)
No output data
No output data (*1)
32 ~ 48 kHz / 16 bit PCM
Copy protection ON
88.2 kHz / 16 ~ 24 bit PCM
96 kHz / 16 ~ 24 bit PCM
88.2 kHz / 16 ~ 24 bit PCM
48 kHz / 16 ~ 24 bit PCM
96 kHz / 16 ~ 24 bit PCM
Copy protection OFF
32 ~ 48 kHz / 16 bit PCM
48 kHz / 16 ~ 24 bit PCM
44.1 kHz / 16 ~ 24 bit PCM
96 kHz / 16 ~ 24 bit PCM
Linear PCM or Packed PCM
Settings
*1 Only 48 kHz/16-bit sources are output.
*2 Only 44.1 kHz/16-bit sources are output.
• Down-mixed to 2 channels for multi-channel PCM sources. (Only the front left and right channels are output
for sources for which down-mixing is prohibited.)
• When “OFF” is selected, digital signals are not output from the digital audio output at this time.
• Linear PCM audio is a signal recording format used for music CDs.
While signals are recorded at 44.1 kHz/16 bit for music CDs, for DVDs they are recorded at 44.1kHz/16bit to
192kHz/24 bit, providing higher sound quality than music CDs.
• Packed PCM signals are high sound quality compressed PCM signals that are decompressed with virtually no
loss of data.
