Standard electrical hookup produces standard output operation. FIGURE 3 illustrates ideal voltage
output versus cylinder travel and the corresponding output actions. Notice that the analog output is
minimum when the cylinder is fully retracted and increases as the cylinder is extended. This is standard
output action. For an in-depth discussion of the effects that Jumper J1 (Latching Jumper) has on the
output operation, refer to Section II B of this manual.
NOTE: Outputs 1 and 2 are adjustable along the full range of cylinder movement and Set Point 1
can be adjusted beyond Set Point 2. If the Continuous Cycle Mode is used, Set Point 2 must be
adjusted beyond Set Point 1 as in FIGURE 3.

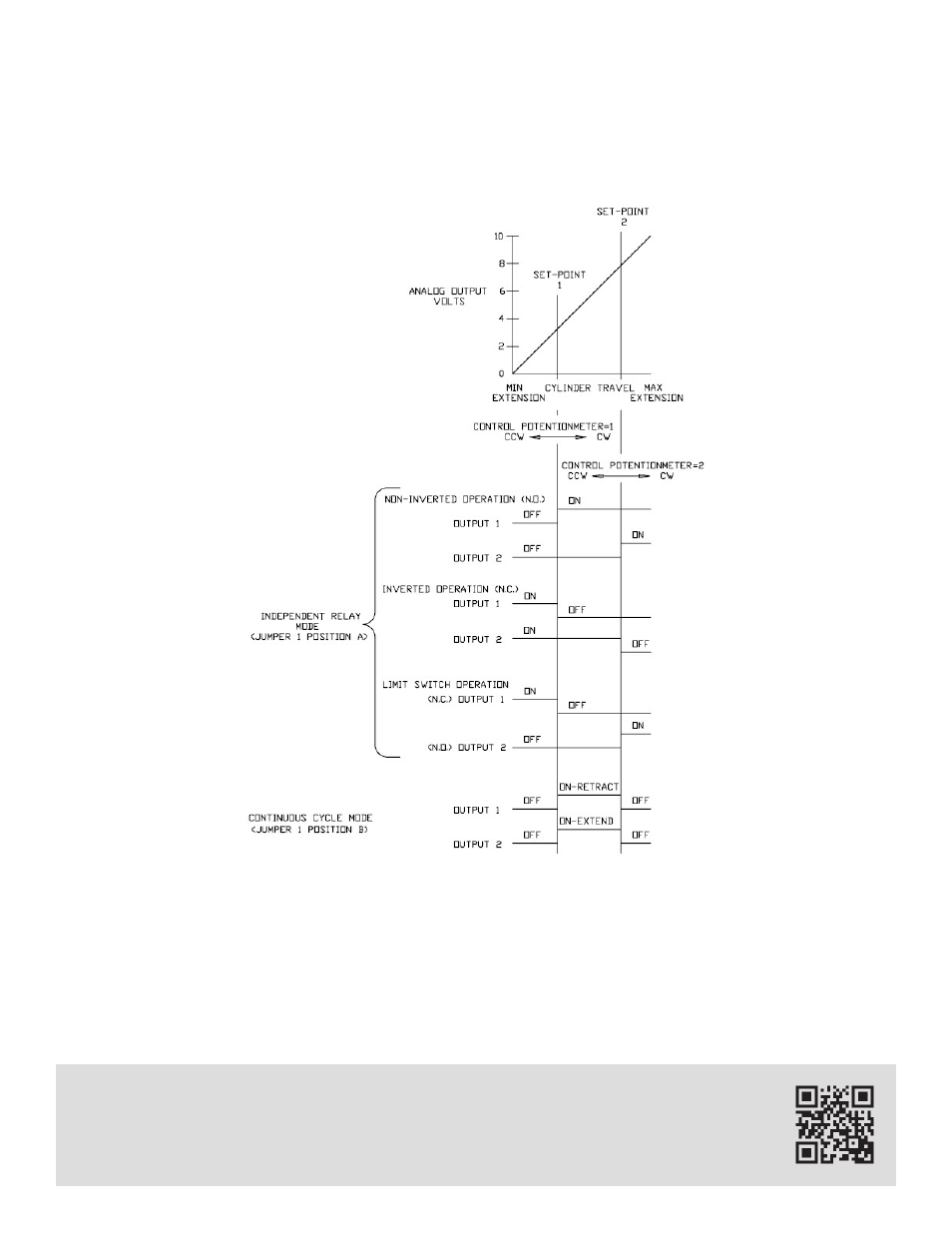

FIGURE 3
OUTPUT CONFIGURATIONS
