V. SYSTEM SPECIFICATIONS
AUXILIARY POWER REQUIREMENT:
AC MODELS.......................................................................................100 TO 135 VAC (115 VAC INPUT)
200
TO 270 VAC (230 VAC INPUT)
DC MODELS ...................................................................................11.8 TO 26 VDC (12/24 VDC INPUT)
POWER REQUIREMENT:
AC MODELS............................................................................ 5 VA MAXIMUM (120 TO 230 VAC)
DC MODELS ...................................................................................... 1.2 VA MAXIMUM (12 VDC)
2.4 VA MAX (24 VDC)
FREQUENCY RANGE ................................................................................................................50/60 HZ
TRANSDUCER EXCITATION VOLTAGE ..................................................................... 10 VDC (NOMINAL)
ELECTRICAL CONNECTIONS ........................................13 POSITION EURO STYLE TERMINAL BLOCK
DIELECTRIC STRENGTH:
AC MODELS.........................................................................2000 VAC (ALL INPUTS TO ALL OUTPUTS)
2000 VAC (TERMINALS TO CASE)
DC MODELS ....................................................................2000 VAC (ALL INPUTS TO RELAY OUTPUTS)
2000 VAC (TERMINALS TO CASE)
NOTE: THE NEGATIVE POWER SUPPLY CONNECTION IS COMMON TO THE ANALOG SIGNAL OUTPUT.
TRANSIENT PROTECTION ......... ALL INPUTS AND OUTPUTS ARE DESIGNED TO WITHSTAND
TRANSIENT ENERGY LEVELS NORMALLY ASSOCIATED WITH CATEGORY III SERVICE LOCATIONS
AS DEFINED BY IEC 644. INDUSTRIAL INSTALLATIONS THAT ARE TYPICAL OF THIS ENVIRONMENT
WOULD INCLUDE MOST DISTRIBUTION, FEEDER OR BRANCH CIRCUIT CONNECTIONS THAT ARE
NOT LOCATED AT THE IMMEDIATE SERVICE ENTRANCE.
SHIPPING WEIGHT ...................................................................................................... APPROX. 12 OZ.
OPERATING TEMPERATURE RANGE ........................................... (-30° C TO +70° C) -22° F TO 160° F
(0° C TO +70° C) 32° F TO 160° F FOR 12 VDC OPERATION
STORAGE TEMPERATURE RANGE ............................................... (-40° C TO +85° C) -40° F TO 185° F

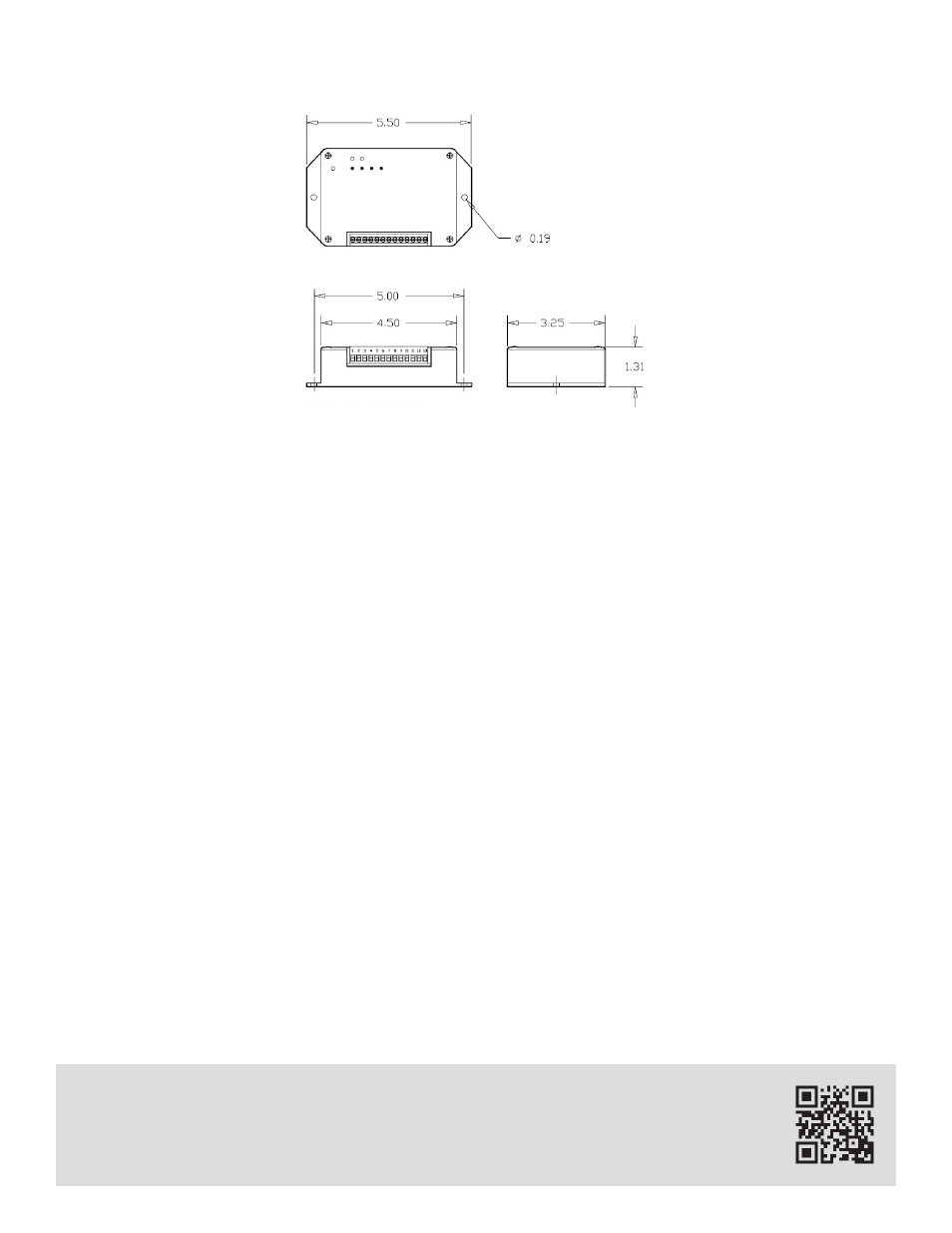

ENCLOSURE DIMENSIONS ....................................................................... 1.31" H X 5.50" W X 3.25" D
