When the cylinder is fully retracted, Relay 2 is turned on. Pushing the manual extend push button will
cause the cylinder to extend until it reaches the set point (14"). At this time, Relay 2 will turn off and
motion will cease. Relay 1 will be on and depressing the retract switch will cause the cylinder to retract
until Relay 1 turns off at 4". When Relay 1 turns off, motion will cease and the process can be repeated
whenever desired.

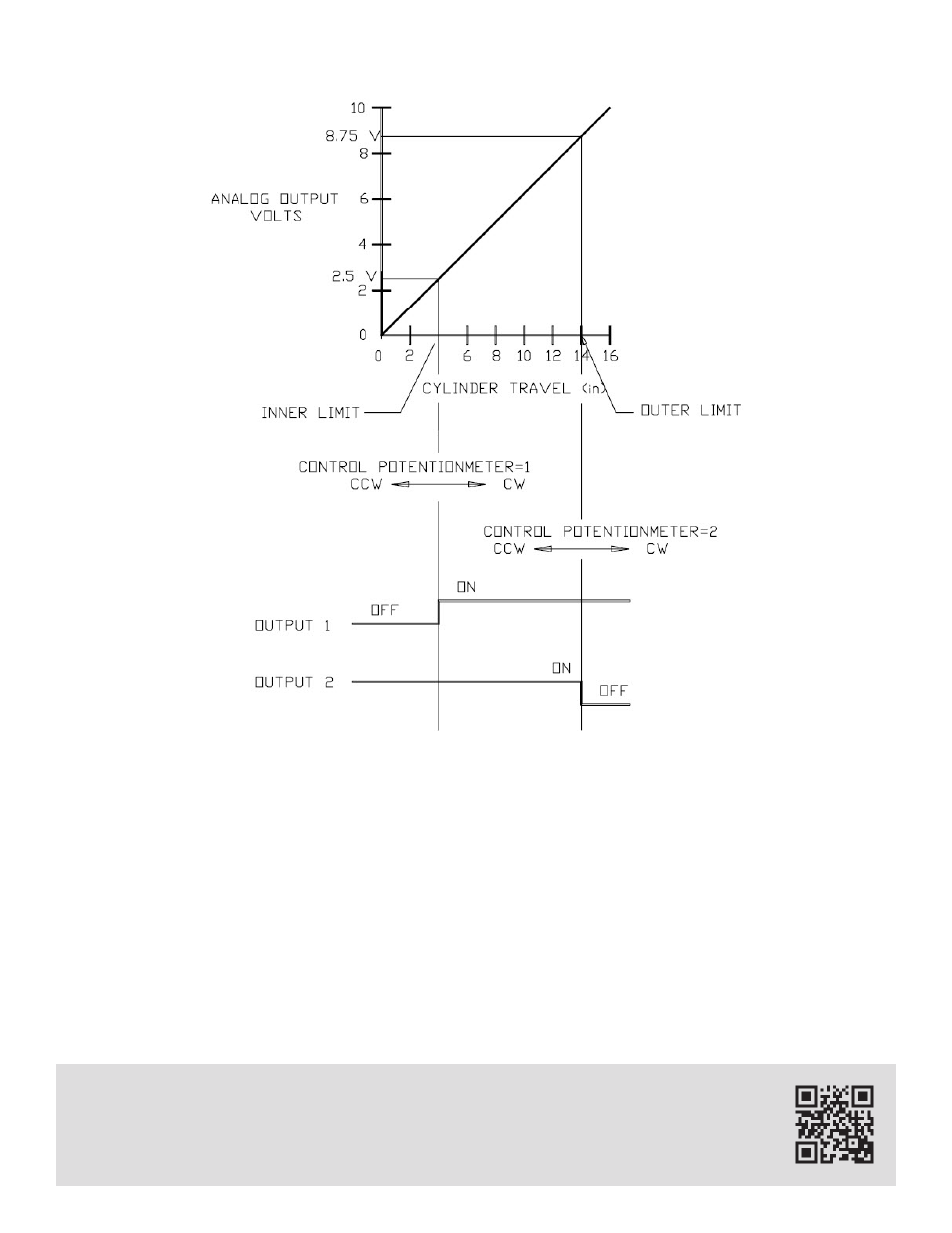

FIGURE 18 illustrates the relay operations and the ideal voltage output versus piston travel (seen at
Terminals 6 and 7). Control potentiometer 1 is used to set the inner limit (4") and control potentiometer
2 is used to set the outer limit (14"). Relay 1 is energized any time the cylinder is extended more than 4".
Relay 2 is energized any time the cylinder is less than 14". These two points are the boundaries of cylin-
der travel.
FIGURE 18
