A. Standard Installation

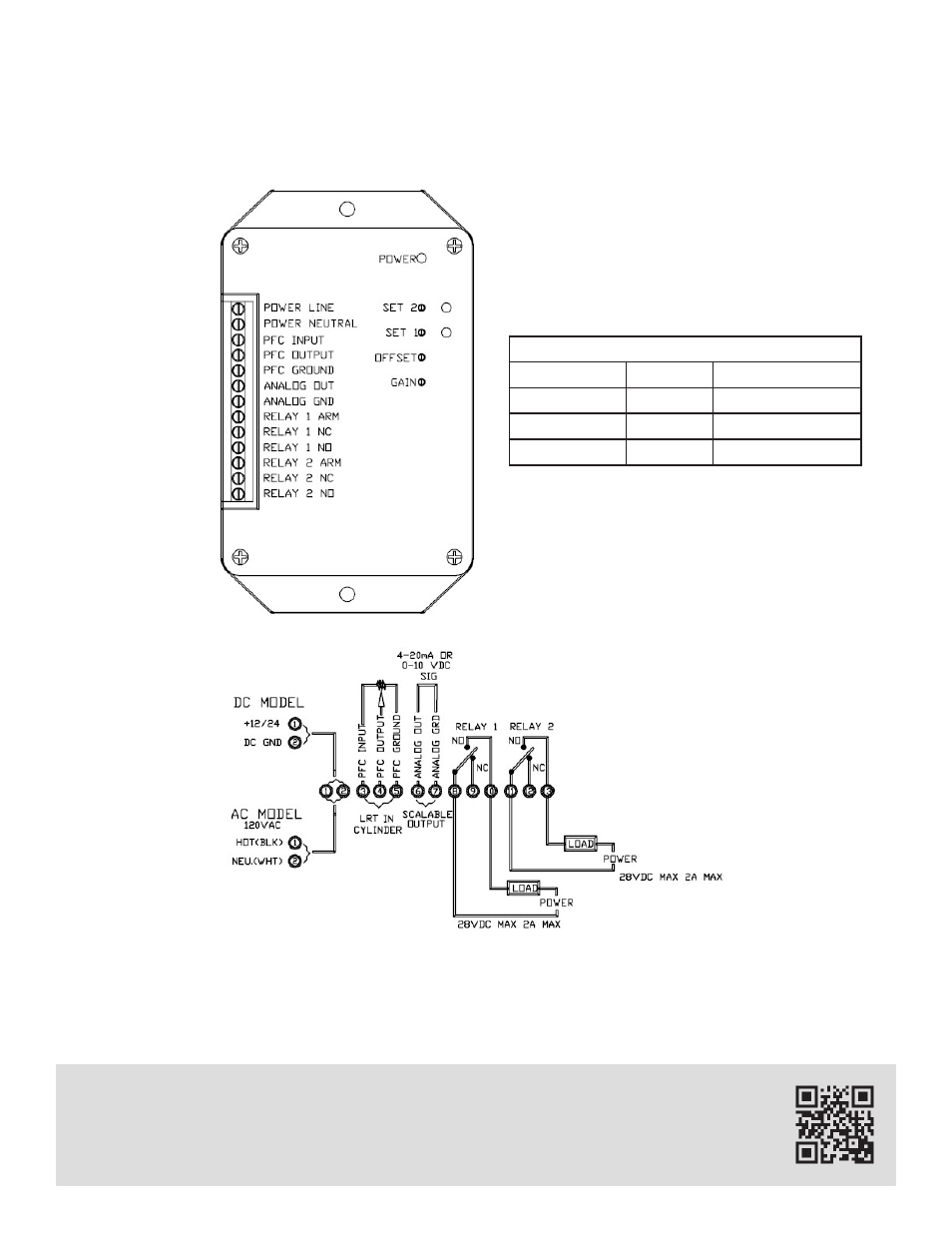

Standard electrical hookup for each dual output unit is illustrated in FIGURE 2.
Wire Colors
Wires 6" Leads 3 Pin Connector
PFC Input Red Blue
PFC Output White Brown
PFC Ground Black Black
FIGURE 2
PIN LAYOUT
