C. Continuous Cycling Between Two Adjustment Limits
DESIRED RESULTS: A cylinder/stream that will cycle between two adjustable limits.
OPERATING SITUATION EQUIPMENT:
3-position valve
DC solenoids (2 amp max.)
Bimba Controller (using the Continuous Cycle Mode) and the inverted mode on relay
12" cylinder (any bore)

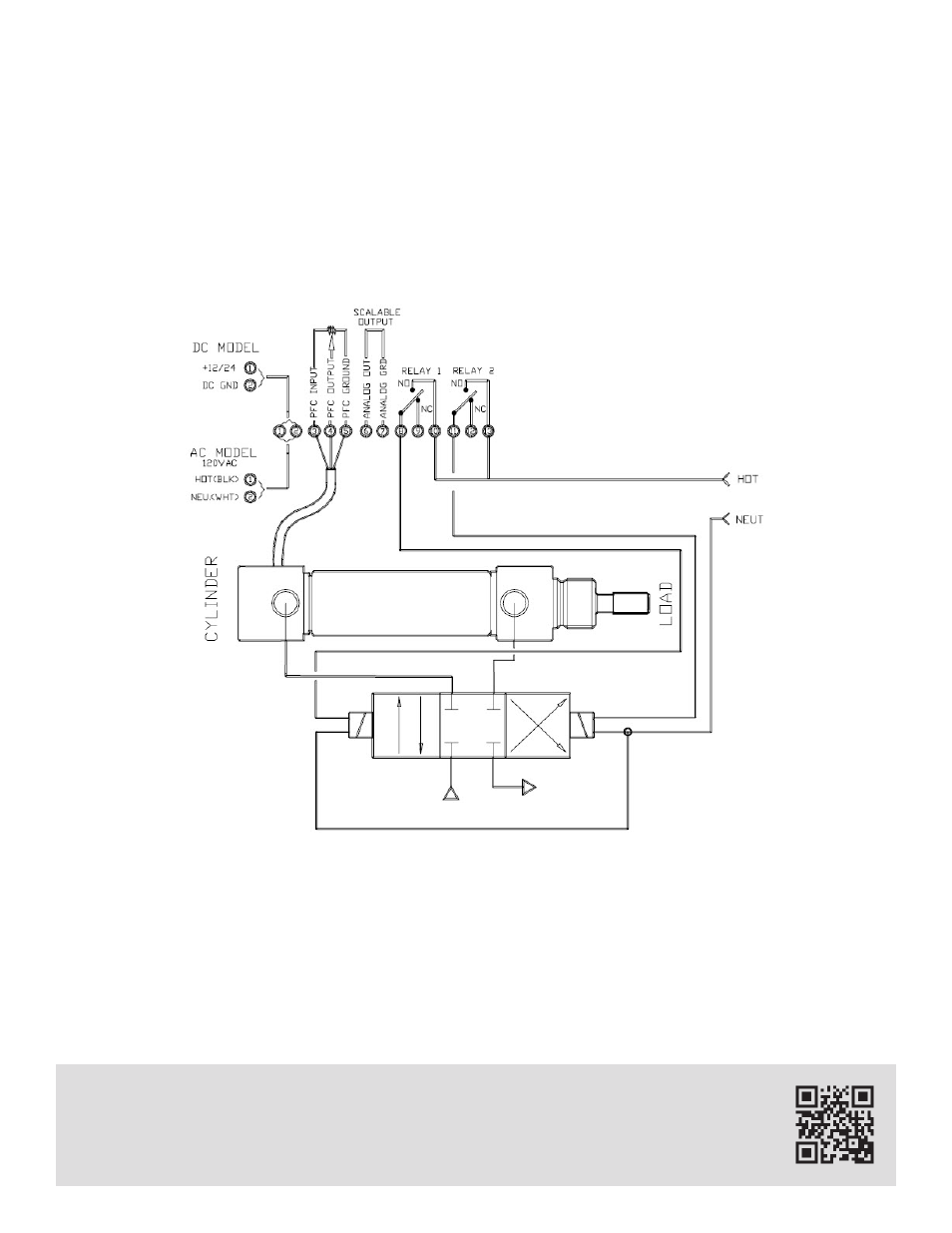

FIGURE 19 illustrates a typical pneumatic application. In this application, cylinder will continually cycle
between boundaries of 2" and 10" of overall cylinder stroke.
FIGURE 19
