VI. APPLICATIONS
A. Single-Solenoid Two-Position Valve
DESIRED RESULTS: A cylinder/system that will cycle between two adjustable limits.
EQUIPMENT:
Single Solenoid (12 VDC) 2-position valve
Bimba Controller (Continuous Cycle Mode)
10" Stroke cylinder (any bore)

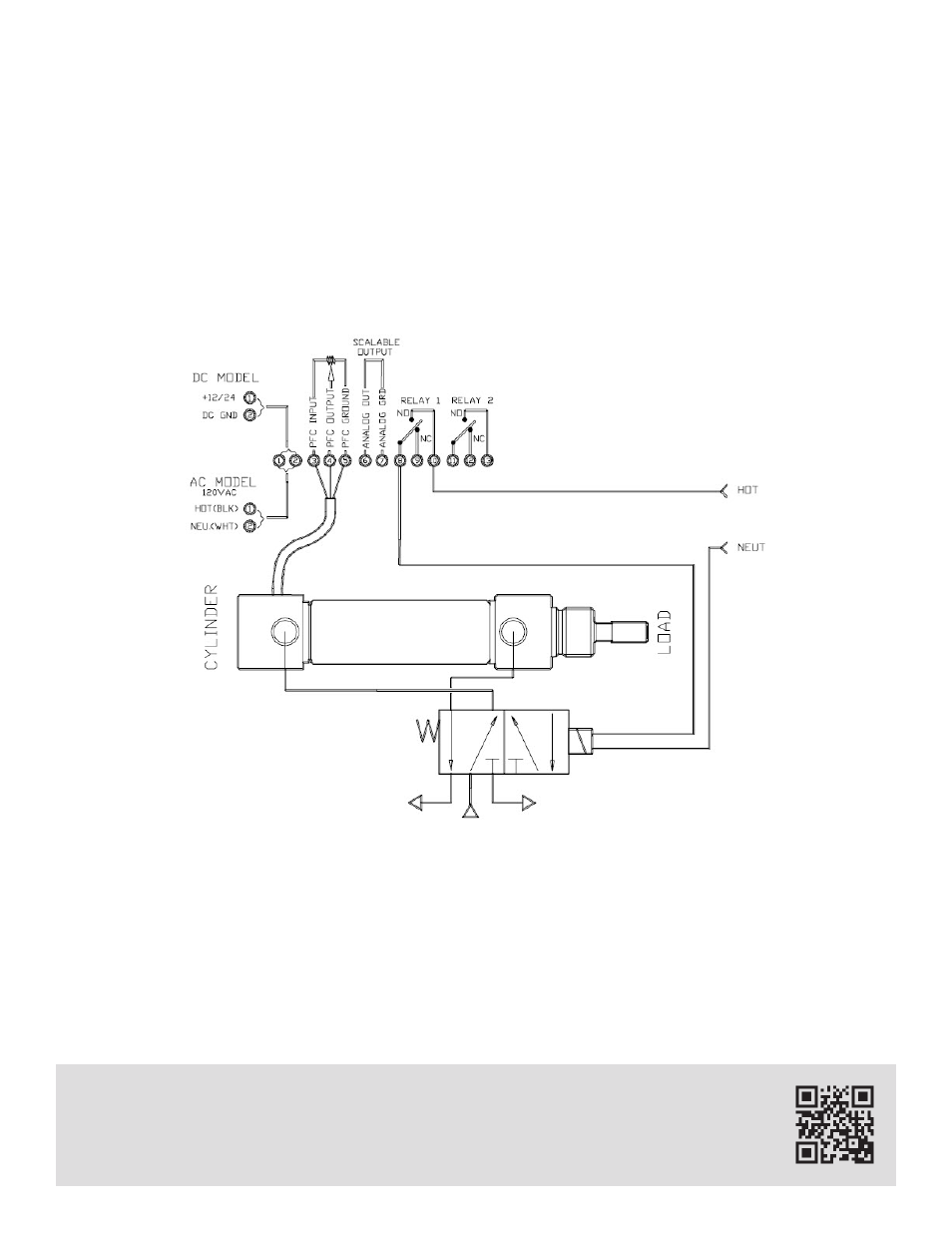

FIGURE 15 illustrates a typical pneumatic operating system. Movement of the 10" cylinder is controlled
by the single solenoid two-position valve. When the solenoid is energized, the cylinder will retract. When
the solenoid is not energized, the cylinder will extend.
FIGURE 15
