www.austin-hughes.com UM-X-ISM-Q414V3 P.32

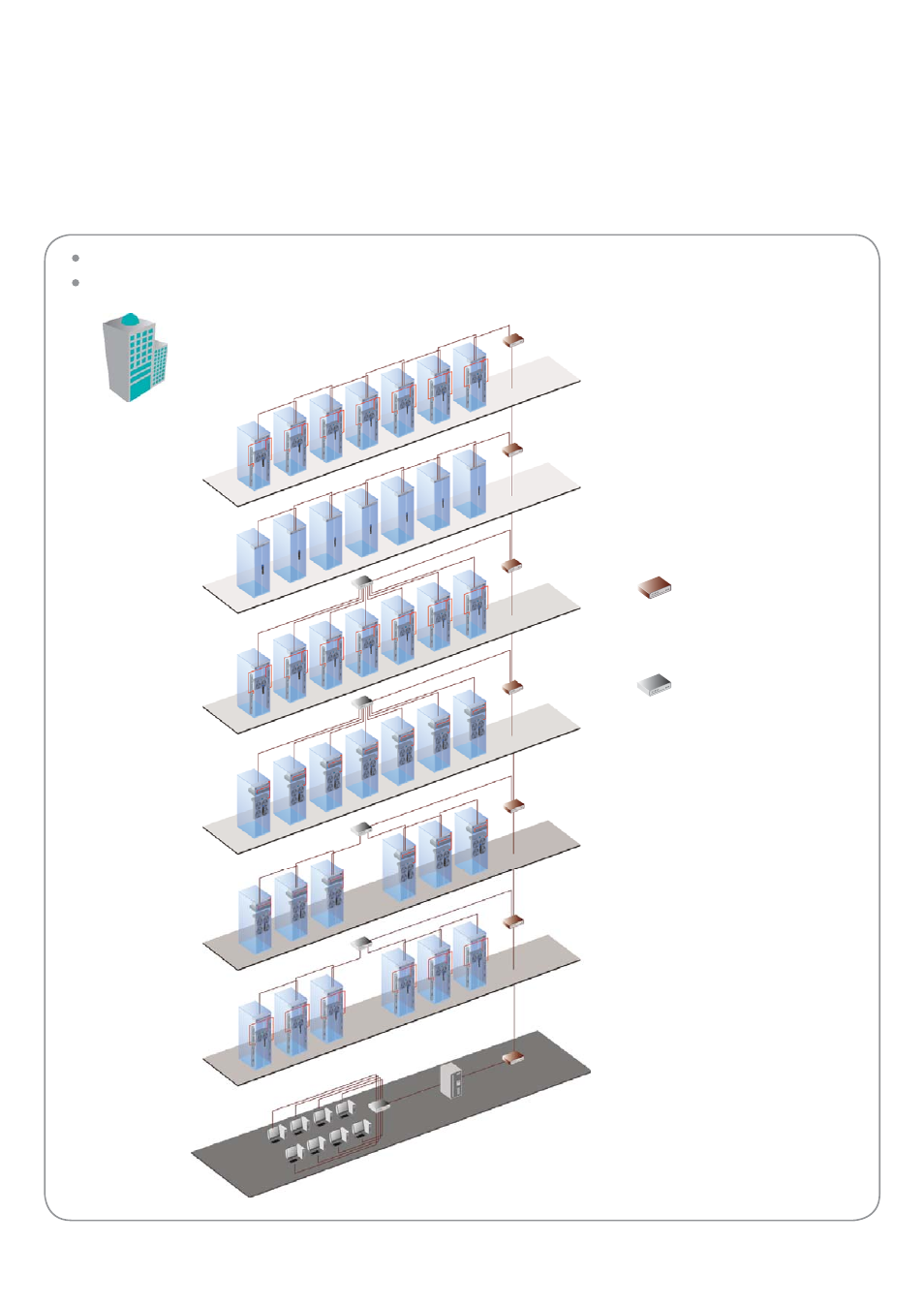

< 6.2 > Intelligent Building
It is essential for a Multi-Storey Intelligent Building to be applied with a centralized management system for the building’s
mechanical and electrical equipment such as security, power, ventilation, and lighting systems, etc.
InfraSolution X system allows equipment to be distributed throughout a building simply by deploying an Ethernet network.
To keep capital costs down, InfraSolution X can also be cascaded between boxes up to 100m over a Cat5/6 cable. Signal
weakness problem for long distance between InfraBoxes can be solved by applying network hubs with repeater function.
Management
PC
Client PCs
Backbone Network /
Fiber Switch
Network Switch for Star / Mixed
Connection
Daisy Chain Scenario
(Up to 50)
Star Connection
(Up to 50)
Mixed Connection
(Up to 50)
Daisy Chain Scenario
(Up to 50)
Star Connection
(Up to 50)
Mixed Connection
(Up to 50)
Control Room
Connect the InfraSolution X network in each fl oor via the network ethernet / fi ber switch
Up to 3000 Infraboxes / Cabinets
