www.austin-hughes.com UM-X-ISM-Q414V3 P.17

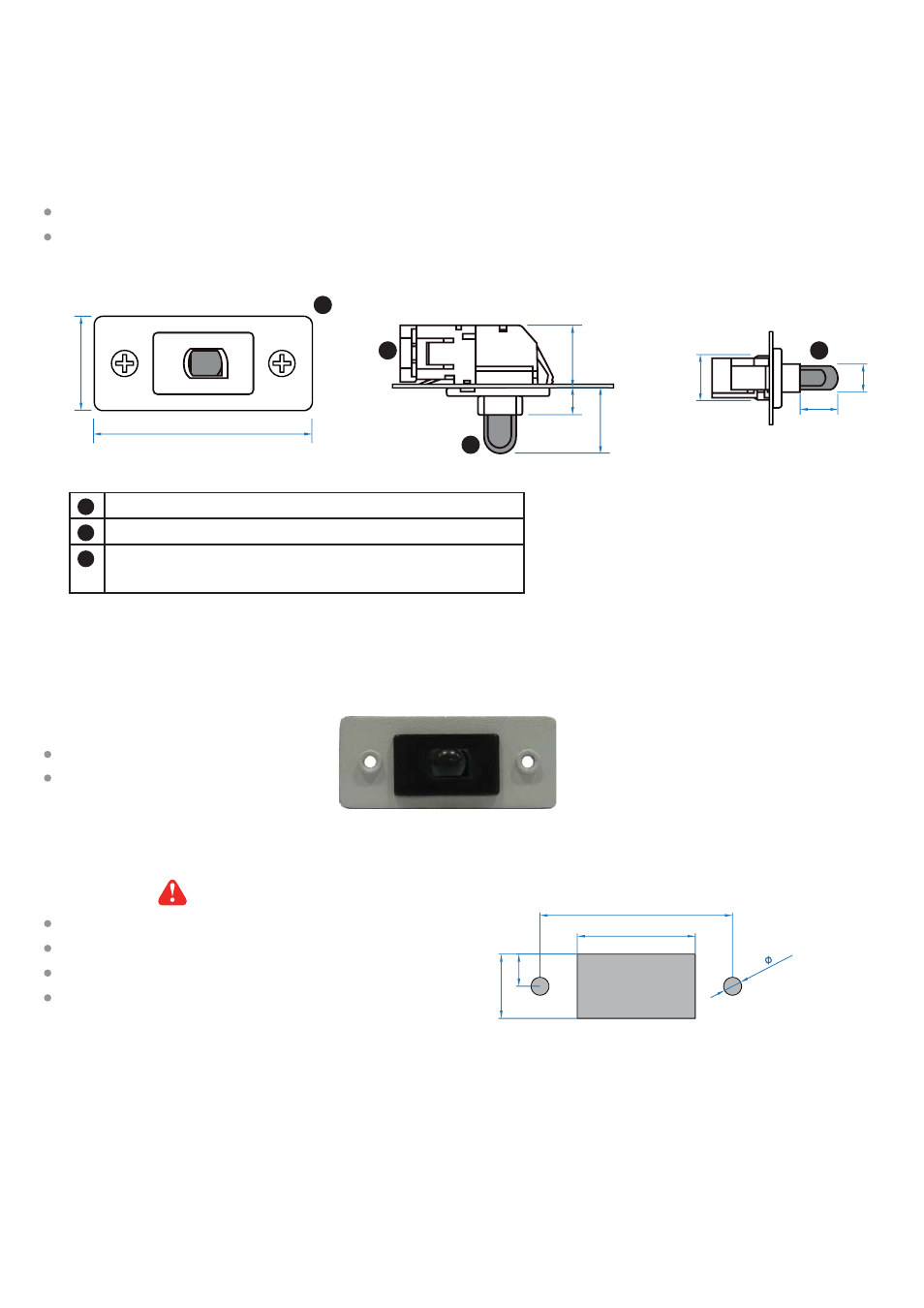

Dimension of door cutting hole
- circle hole x 2 for screw mounting
- rectangle hole x 1 for sensor installation
Side View Front View Top View
Mechanical Door Sensor ( S-DSW )
Features
Requirements
Package content
low cost / precise
cost effi cient integration to new cabinet
unit : mm
unit : mm
custom hole cutting required on doors
ordering a sample for custom cutting is highly suggested
min. actuation distance : 3.00 mm
total travel distance : 9.25 mm
Mechanical sensor w/ 2m cable x 2
Mounting screws 6#32x4.5mm x 2
37.5
23
2-
3.5
12.5
6.3
6.5
15.0
15.75
52.0
22.5
1
3
3 2
Steel mounting plate with 2 screw holes
Cable connector
Press button ( total travel distance : 9.25 mm )
( min. actuation distance : 3.00 mm )
2
3
1
11
7.3
9.25
< 2.4 > Door Sensor
- Mechanical
