www.austin-hughes.com UM-X-ISM-Q414V3 P.9

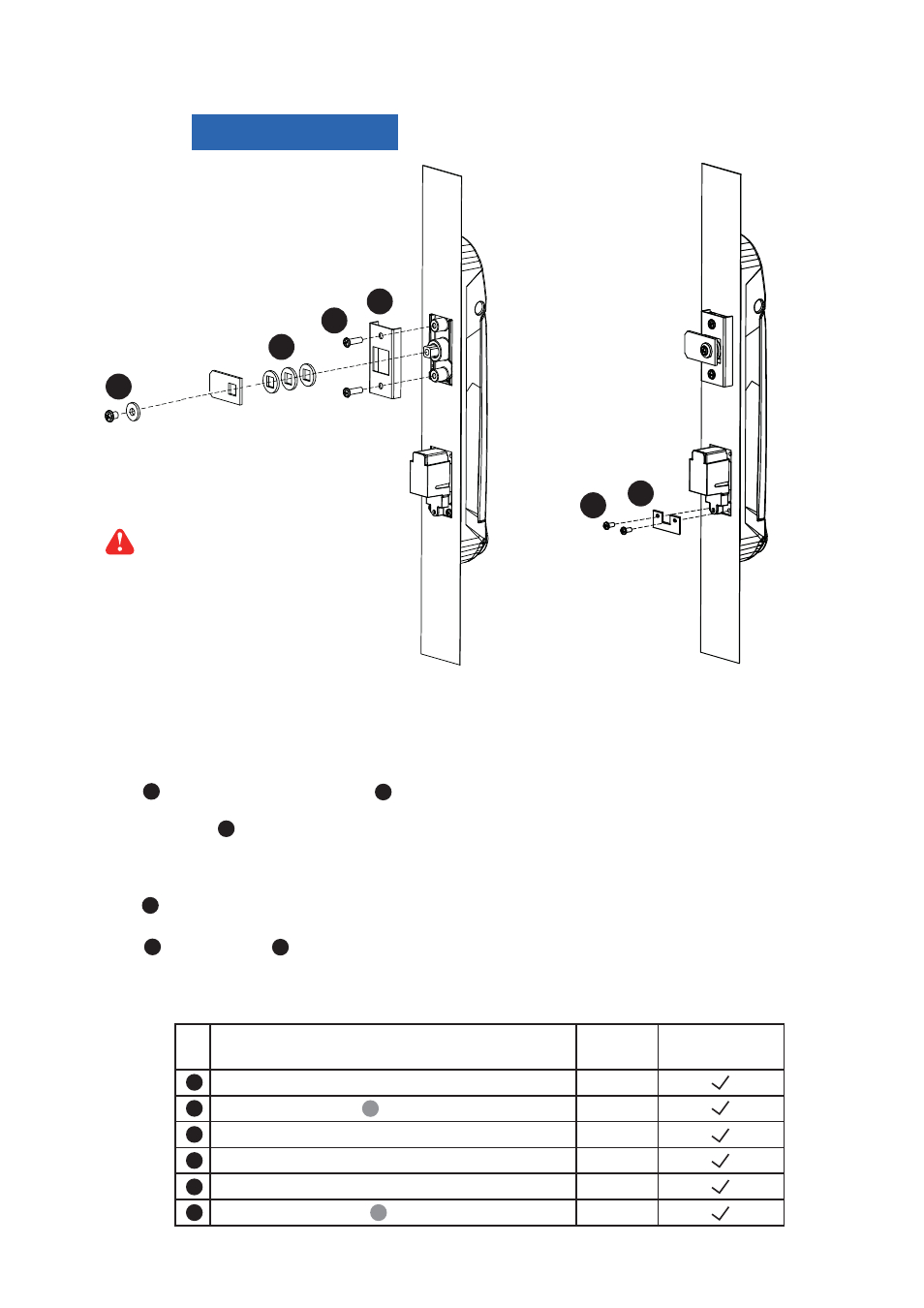

Installation for Single Point Lock
< 2.3 > Handle
X-800P / X-800M
1. Mount the smartcard handle to the universal mounting position.
2. Place the handle mounting bracket with M4 x 9mm screw x 2 to secure the handle.
3. Attach the Cam with square hole washer(s) to adjust and to fi t the cam locking position.
Note : - If the cam cannot fi t the locking position after adjustment, customization for the cam is required.
- Cam customization service upon your request, please contact your sales representative
4. Insert the M5 x 10mm screw x 1 with circle hole washer to secure the Cam to the handle.
5. Place the U bracket with M3 x 10mm screw x 2 to further secure the handle in place.
1
3
2
5 6
4
Handle mounting screw set for single point lock
Qty. Single Point
Lock
Handle mounting bracket 2
M4 x 9mm screw for 4
Square hole washer 6
Circle hole washer w/ M5 x 10mm screw 2
U bracket 2
M3 x 10mm screw for 4
2
3
4
5
6
1
1
1
2
3
5
6
4
Cabinet
door
Cam
>>>>>
>>>>>
5
While insert the screws to secure
the handle with electronic screw-
driver
, please set the torque NOT
exceed 8 kgf/cm
