www.austin-hughes.com UM-X-ISM-Q414V3 P.29

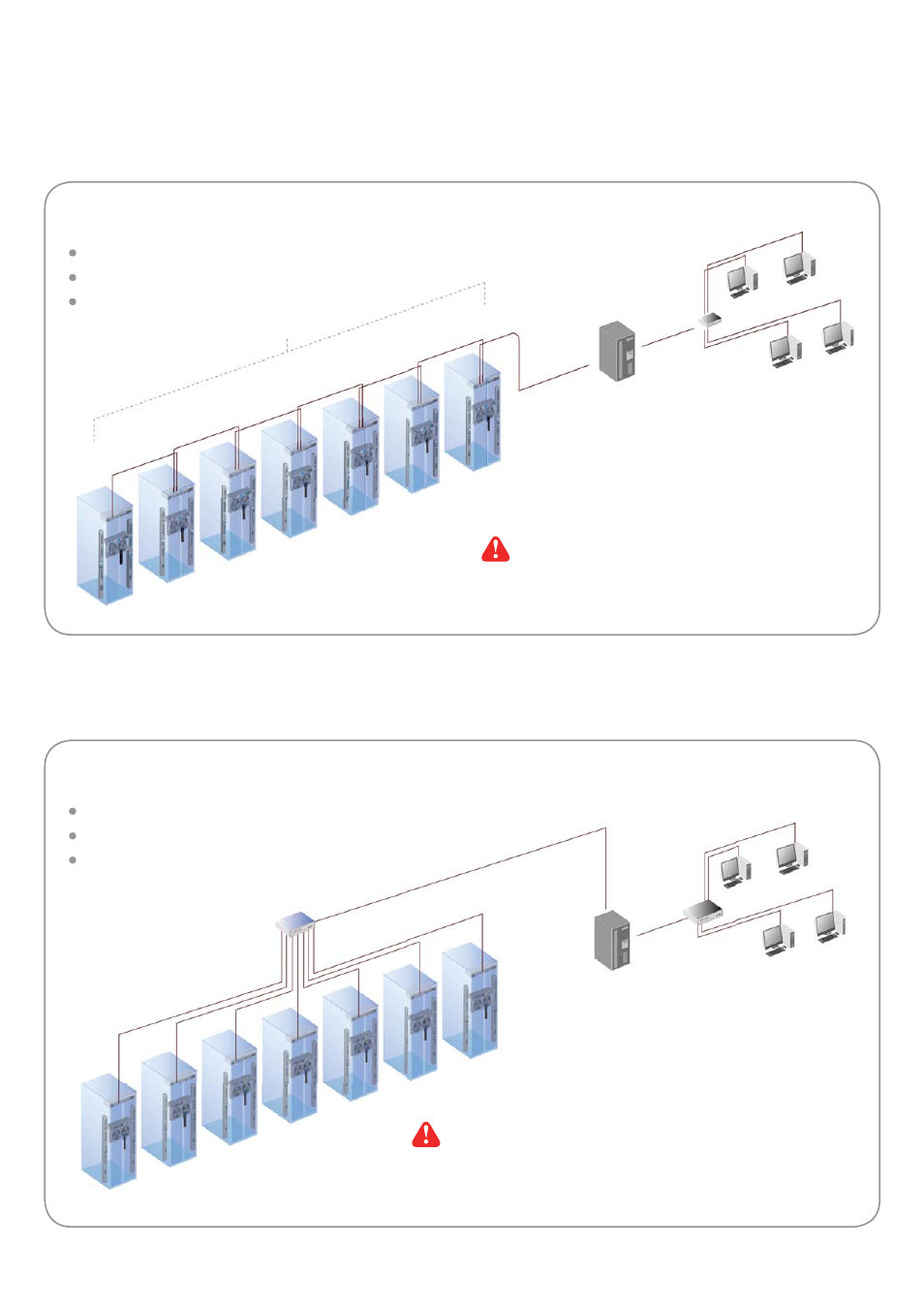

Network Connection
< 5.1 > Daisy Chain
Key Benefi ts
Connect all InfraBoxes by Cat5/6 cable, and no any network switch required
Simple connection
No network switch required
Appropriate for small networks
Quantity of InfraBox / Cabinet : Up to 50
Total distance in a single daisy chain : Up to 100M
Management
PC
Client PCs
InfraSolution X provides 3 connection ways - Daisy Chain, Star , Mixed.
Which connection applied is subject to the site scale, environment and users’ requirements.
< 5.2 > Star
Key Benefi ts
Connect to network switch by a point-to-point connection
Appropriate for large networks
Increased fault tolerance
Easy for troubleshooting
Management
PC
Network
Switch
Client PCs
Network switch required
Total distance for each InfraBox to Network Switch : Up to 100M
