AMT Datasouth M5DT Plus User Manual
Page 9
7

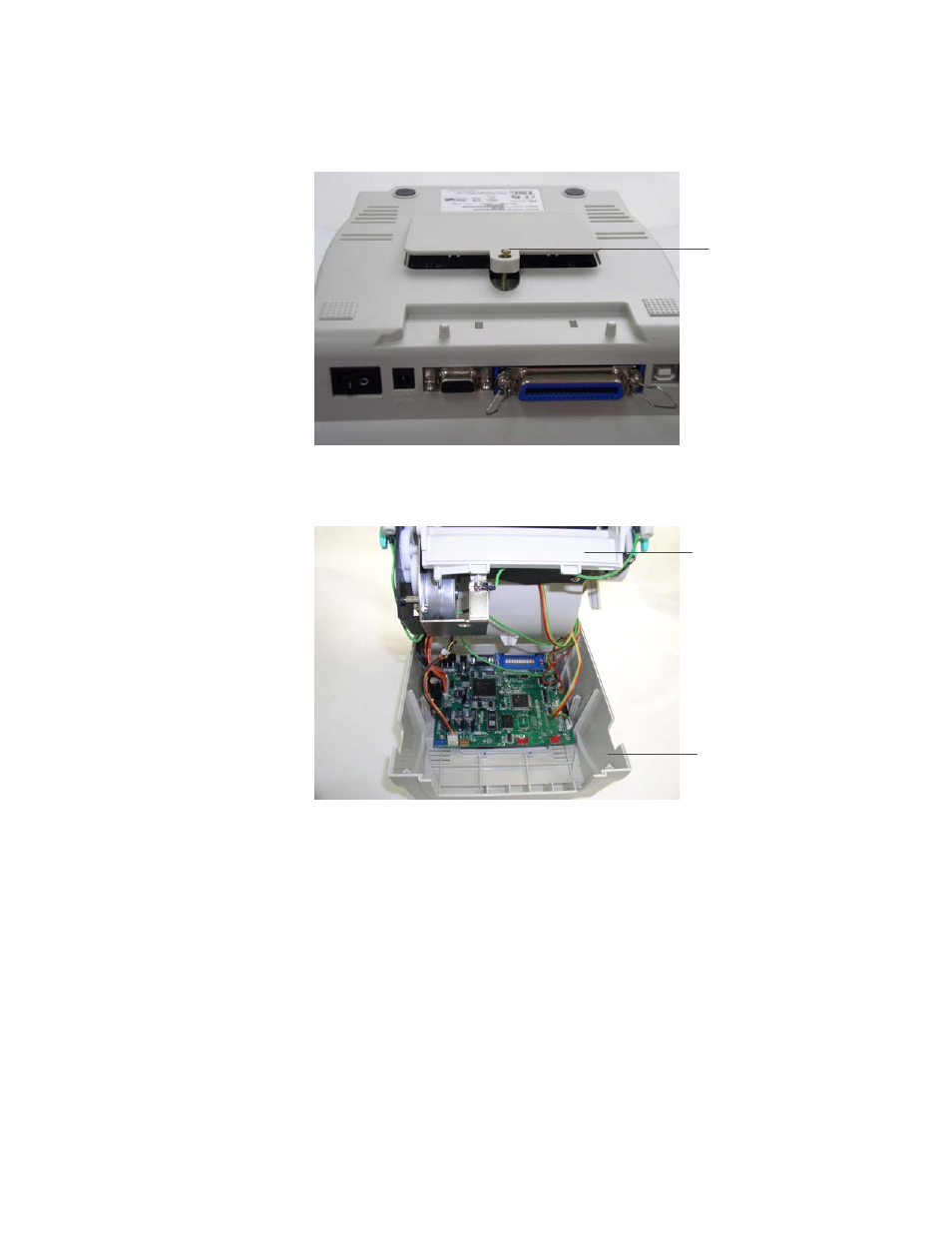

5. Remove the screw at memory card cover.
6. Separate the top, inner, and the lower cover.
7. Thread the cable red connector through the inner cover opening located near the front
of the printer. Insert the red cable connector into location JP17 (M5 DT) / JP19 (M5 DT
PLUS) on the main board. Install the peel-off module onto the lower inner cover slot.
Lower inner
cover
Lower cover
Screw
