AMT Datasouth M5DT Plus User Manual
Page 13
11
3. Feed the media (printing side face up) into the external opening located at the rear of the
printer and then through the media guides.

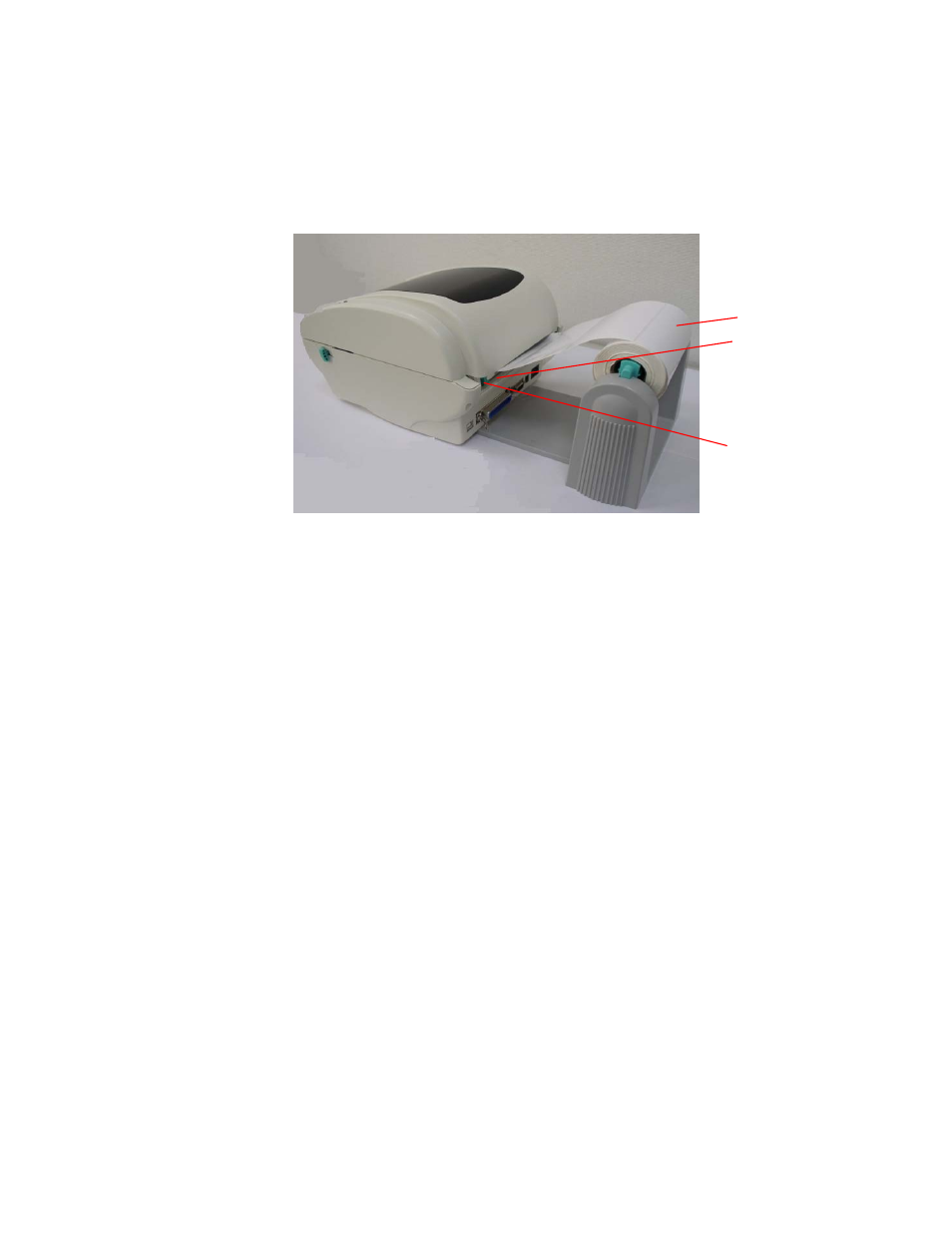

Fig. 13 External label roll mount installation (II)
4. Open the printer top cover by pulling the top cover open levers.
5. Continue feeding the media through the internal printer guides and place it on top of the
platen.
6. Adjust the media guides by turning adjustment knob to fit the edge of the media/backing.
7. Close the printer top cover
.
External Media
Feed Opening
Rear Media Guide
