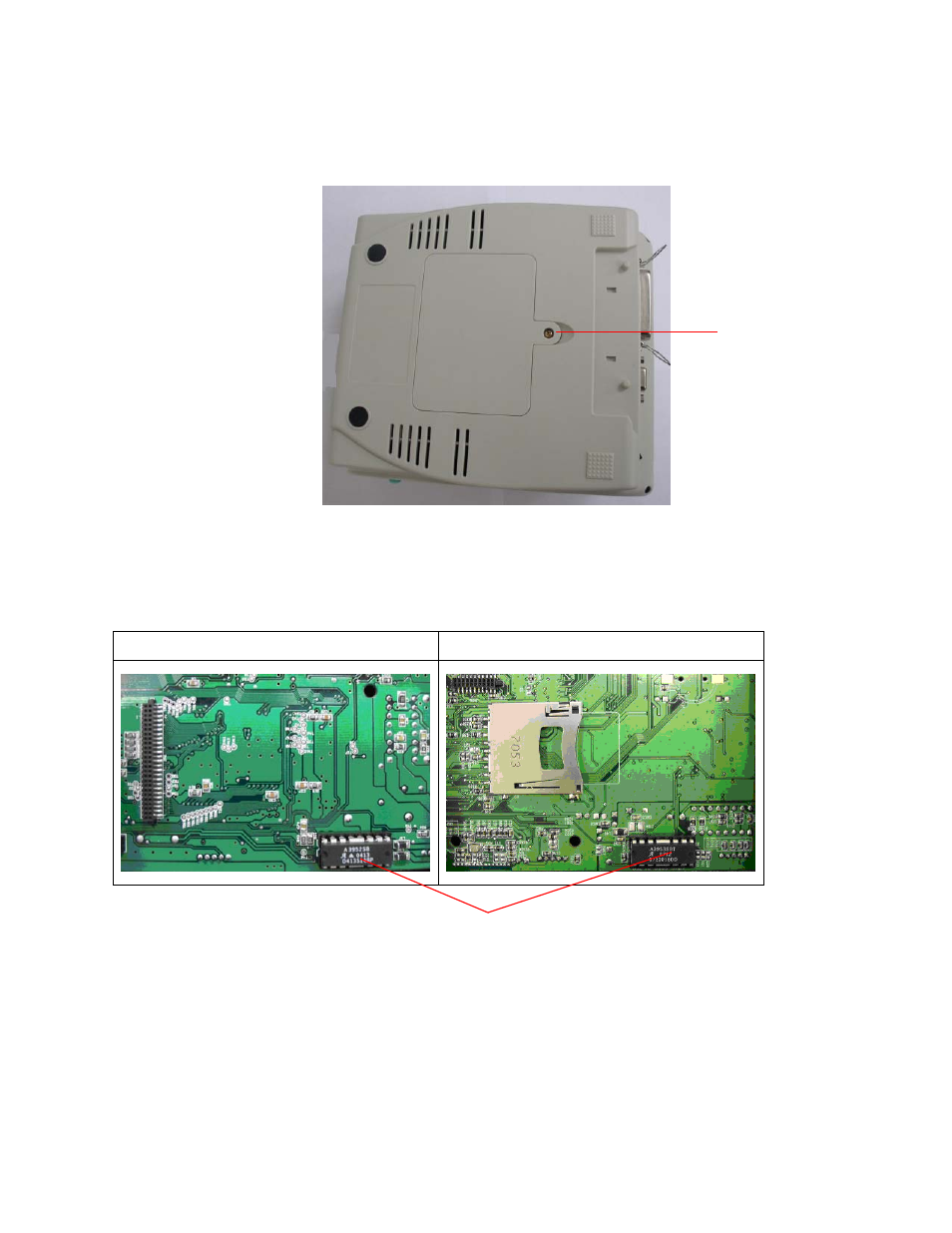

6. Remove the screw from the memory card cover, and left the cover off.
7. Plug in the Cutter Driver IC at U14(M5 DT) / U30(M5 DT PLUS) socket on the main
board.
M5 DT Model
M5 DT PLUS Model
Note:
For Non-RoHS PCB, use cutter driver IC A3952SB
For RoHS PCB, use cutter driver IC A3953SB
Memory Card
Cover Screw
