3
2.3 Printer Parts
2.3.1 Front View

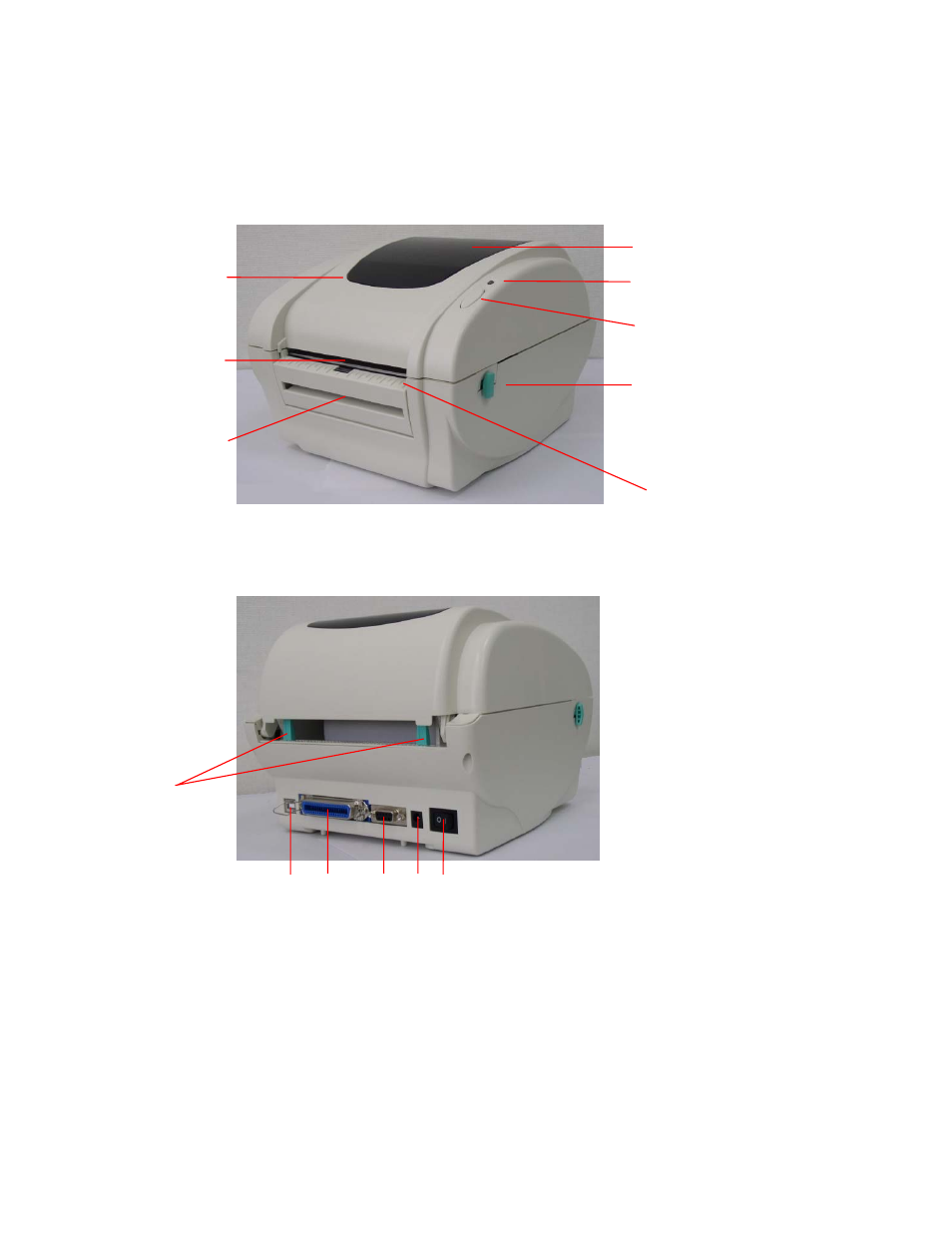

Fig.1 Top Front View
2.3.2 Rear View
3 Setup
3.1 Setting Up the Printer
1. Place the printer on a flat, secure surface.
2. Make sure the power switch is off.
1 2 3 4 5
6
1. USB Interface
2. Centronics Interface
3. RS-232C DB-9 Interface
4. Power Jack
5. Power Switch
6. Rear Label Guide
Top Cover Open Lever
LED Indicator
Feed Button
Top Cover
Clear Window
Backing Paper Opening
Label Opening
Front Panel
Fig.2 Rear View
