4 loading labels for peel-off mode (option) – AMT Datasouth M5DT Plus User Manual
Page 11
9
Peel-Off Panel
3.4 Loading Labels for Peel-off Mode (Option)
1. Open the peel-off module by pulling it forward.

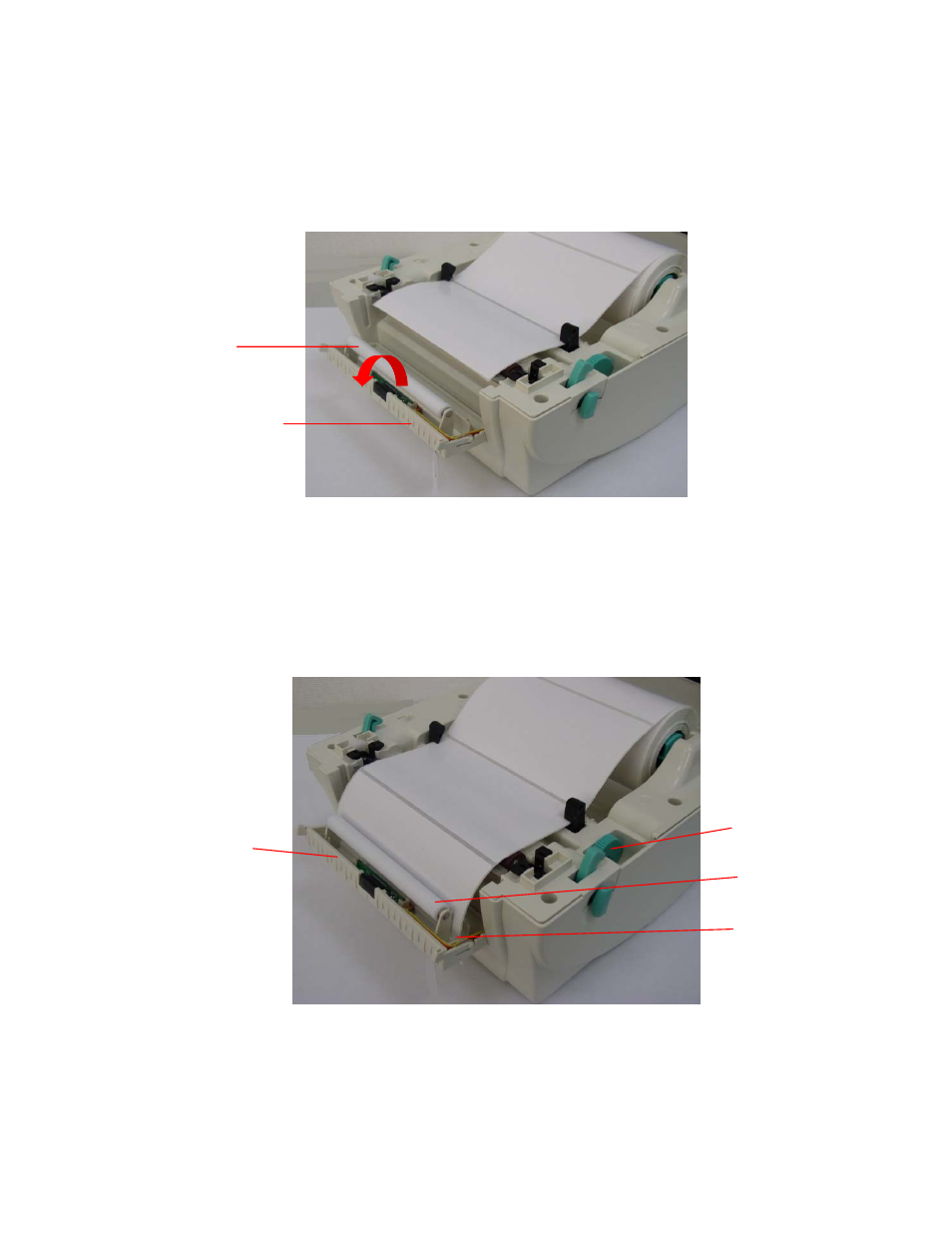

Fig. 9 Open the peel-off panel
2. Thread the label, printing side facing up, through the support guides.
3. Thread the label through the liner opening, which is beneath the roller.
4. Adjust the black center-biased media guides by turning the adjustment knob to fit the
edge of the label/backing.
Fig. 10 Loading Labels for peel-off mode
5. Lift the peel-off panel up and back into the closed position.
Peel-off Panel
Peel-off Roller
Roller
Adjustment Knob
Liner Opening
