7 loading media in cutter mode – AMT Datasouth M5DT Plus User Manual
Page 17
15
3.7 Loading Media in Cutter Mode
1. Open the printer top cover.
2. Insert the spindle into the media roll.
3. Install a media roll onto the roll mount.
4. Thread the media, printing side face up, through the guides, platen and cutter module
outlet.

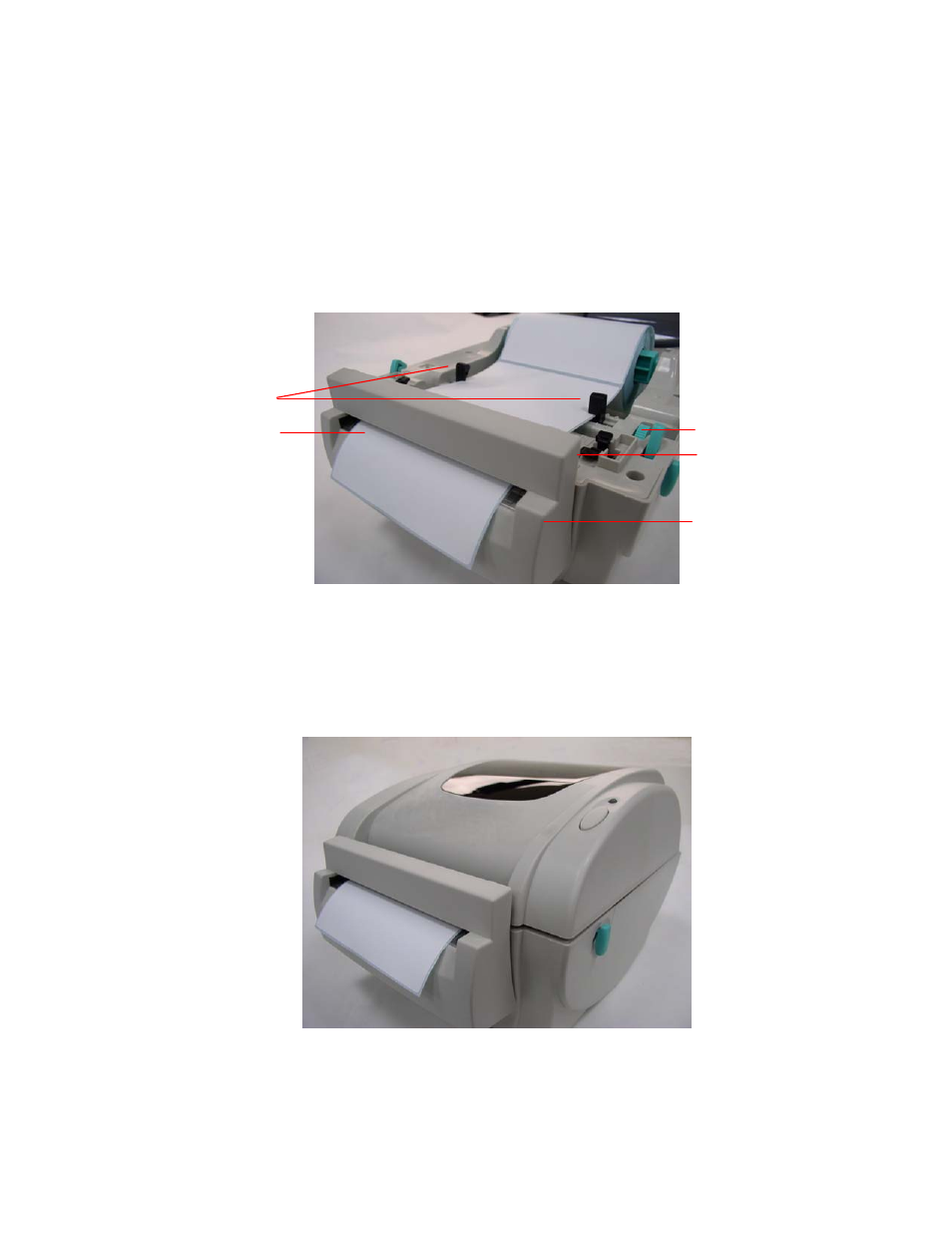

Fig. 18 Media installation in cutter mode
5. Adjust the black center-biased guides to fit edge of the media/backing.
6. Close the top cover
.
Fig. 19 Media installation in cutter mode completed
Media Guide
Cutter Media Opening
Platen
Adjustment Knob
Cutter
