AMT Datasouth M5DT Plus User Manual
Page 19
17

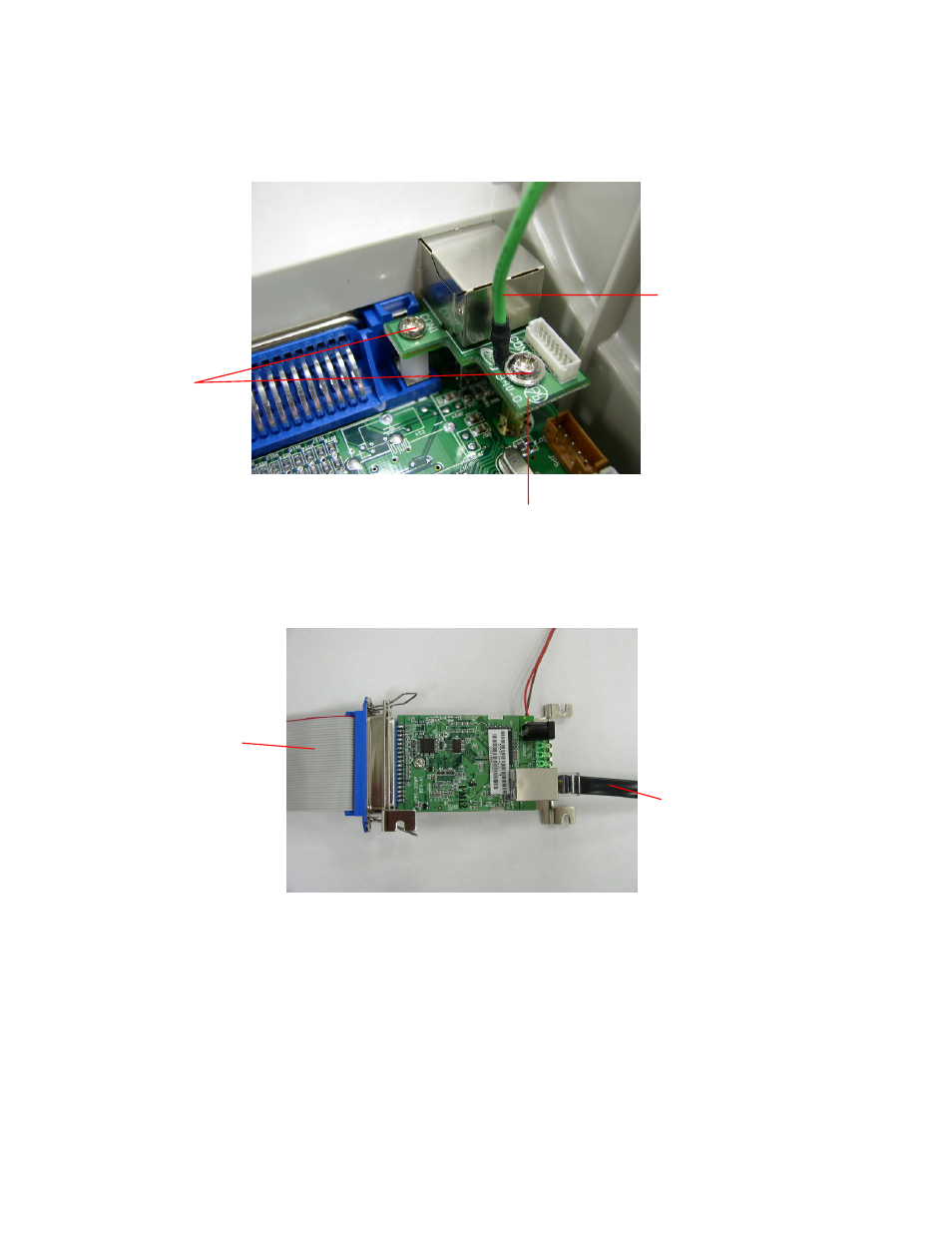

3. Fasten the RJ45 connector daughter board on the plastic and metal standoff. The ground
wire from the mechanism must be screwed on the daughter board with metal standoff.
Ground wire
Screws
RJ45 connector daughter board
4. Connect the print server module interface cable (36PIN) and RJ45 interface cable to
print server module.
Print server module
interface cable
RJ45 interface cable
