43

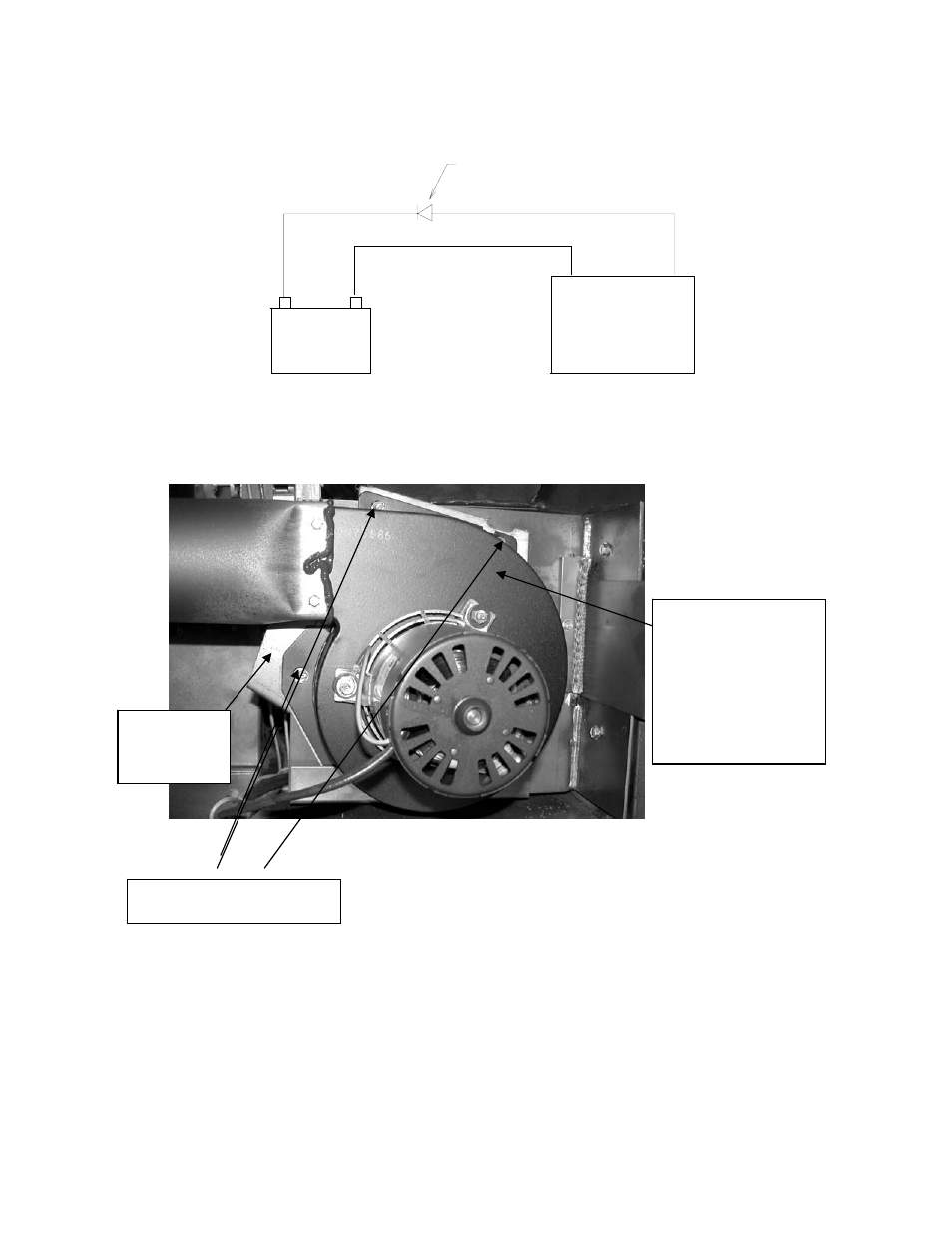

OPTIONAL SOLAR PANEL CONNECTIONS
WARNING: Use a 3 AMP, 50 volt diode on the “+” positive lead between the solar panel and battery as
shown in the diagram below.
12 VOLT
BATTERY
12 VOLT
SOLAR PANEL
-
- +
+
NEG.
NEG. POS.
POS.
3 AMP / 50V DIODE
DRAFT SLIDE GATE ADJUSTMENT
NOTE: Draft Slide Gate does not come with unit. This is a add-on only done by a qualified technician
The normal operation of the MagnuM appliances would be with the Draft Slide Gate open fully as shown.
When the gate is in the fully open position, the plate will be against the mounting plate as shown.
If the unit needs a draft correction adjustment, loosen the bolts (see above) and then rotate the slide gate a
few degrees at a time until the proper operation of the unit is achieved.
NOTE: This adjustment must be made by a qualified MagnuM Service Technician.
When rotating the slide gate, be careful not to damage the gasket. Re-tighten the bolts and check for
leaks.
Draft Slid
Gate
(option e
al)
Exhaust Draft Motor
(AC model shown)
located inside of right
side panel.
NOTE: Always
disconnect power
before making this
adjustment.
# 10 bolt with 5/16 hex head
