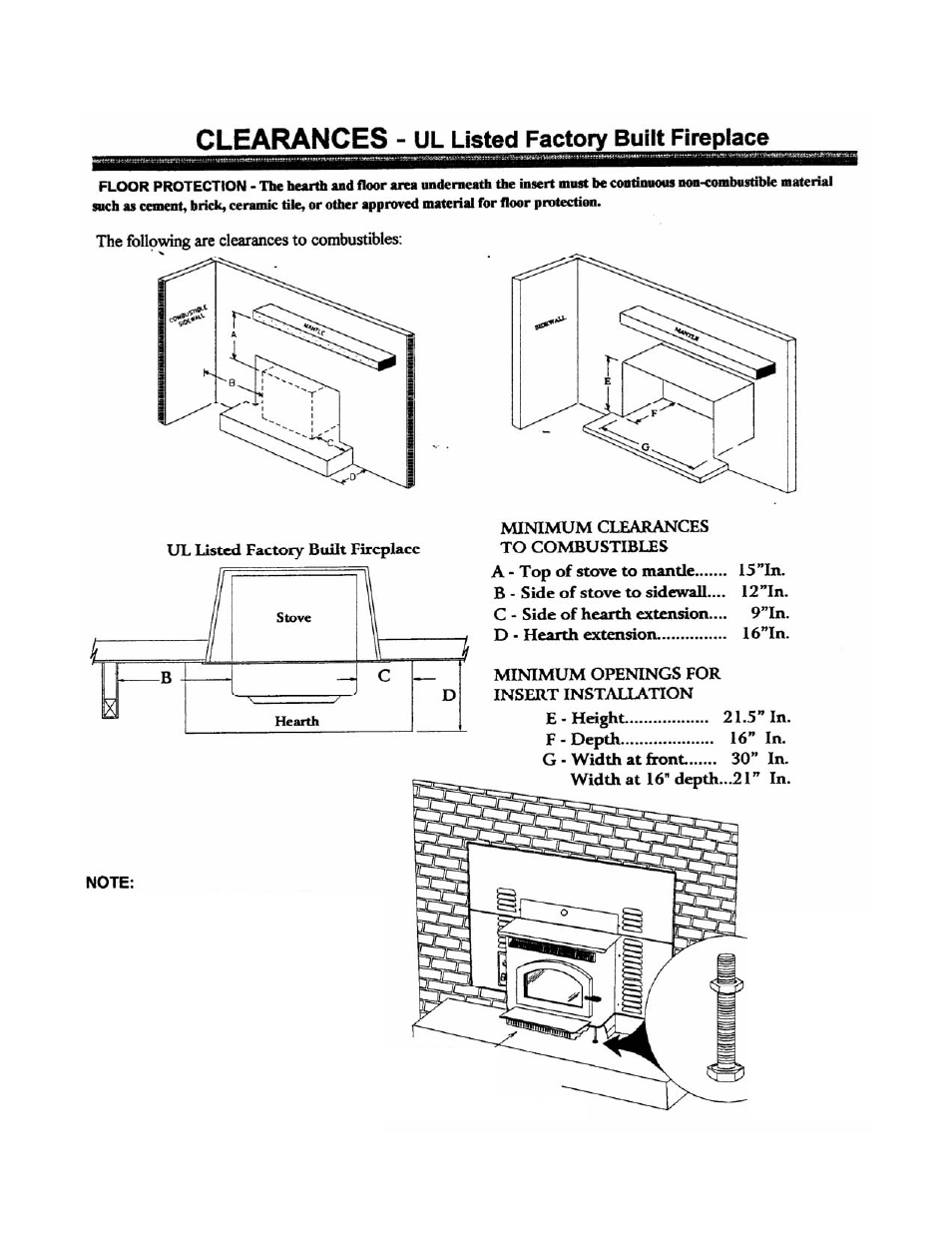

WIN INSERT INSTALLATION cont.
When extending the
unit beyond a raised
hearth, you must use
some type of supp
bolt to hold and lev
the unit.
(not provided)
ort
el
For a raised Hearth, you can have
a decorative skirting made by your
installer to finish off the front of
the unit. The skirting must be
made out of non-combustible
materials and must support the
weight of the unit.
