34
12 VOLT
BATTERY
12 VOLT
SOLAR PANEL
-
- +
+
NEG.
NEG. POS.
POS.
3 AMP / 50V DIODE

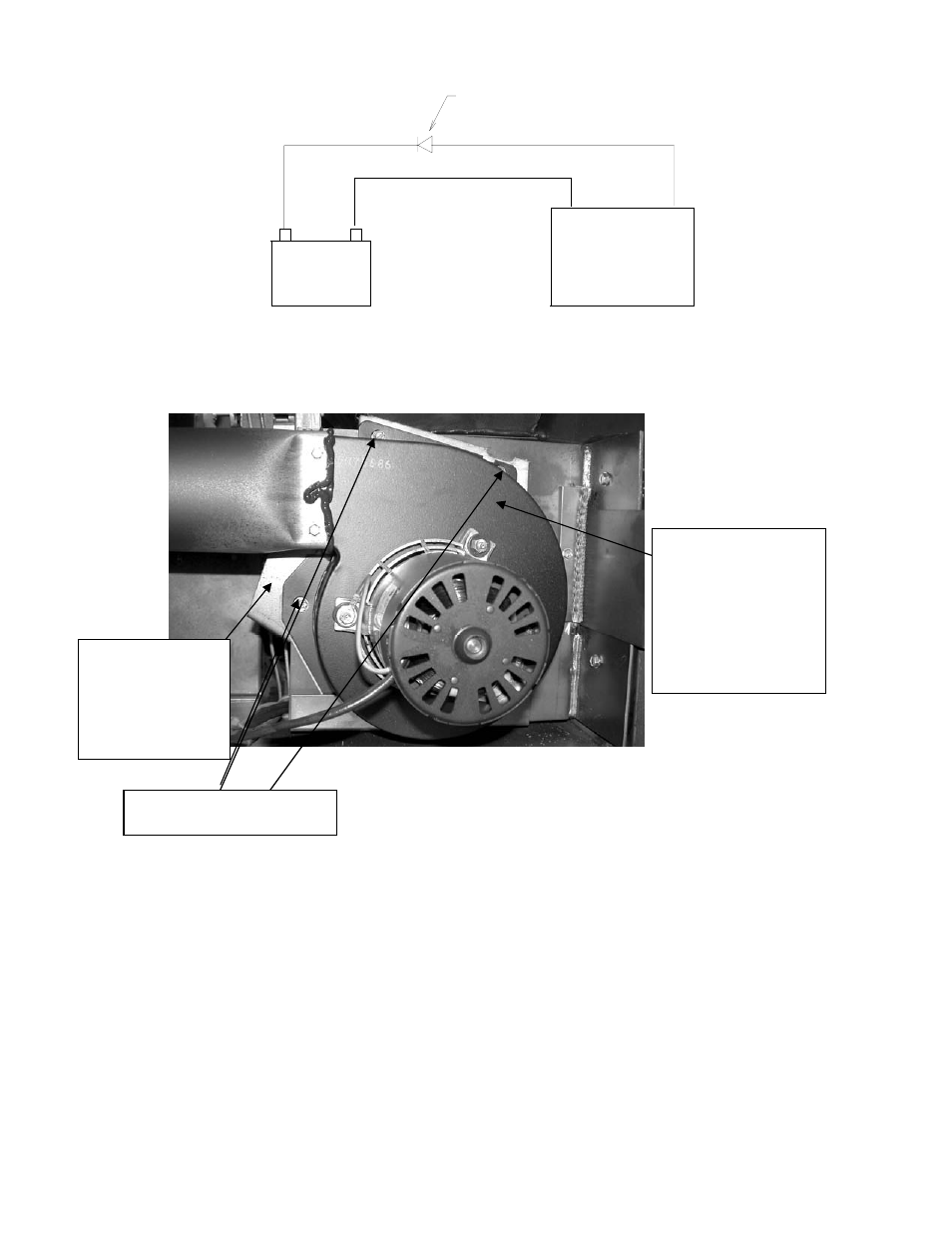

DRAFT SLIDE GATE ADJUSTMENT (Optional equipment)
l operation of the Magnum appliances would be with the
Draft Slide Gate open fu unit). When the gate is in the fully open position,
the plate will be against the mounting plate as shown. If the unit needs a draft correction adjustment, the
bolts are loosened and the slide gate is rotated a few degrees at a time until the proper operation of the
unit is achieved.
NOTE: This adjustment must be made by a qualified Magnum Service Tech.
When rotating the slide gate, be careful not to damage the gasket. Re-tighten the bolts and check for
leaks. The Draft Slide Gate is not shipped installed on the appliance. A qualified Magnum service Tech
would have to determine if this plate was needed. High altitude, high wind, high voltage and fuel quality
issues would be a few reasons for the need of the draft slide gate. Careful attention needs to be made to
not damaging the draft motor gasket when the gate is installed or adjusted. If the gasket is damaged you
must replace the gasket before operating the unit.
IGNITER REPLACEMENT
The norma
lly as shown (not standard on
Draft Slide Gat
(optional)equi
, not shipped
unit. A service tech
will determine if
needed. e
pment
with
Exhaust Draft Motor
(AC model shown)
located inside of right
side panel
NOTE: Always
disconnect power
before making this
adjustment.
# 10 bolt with 5/16 hex head
