Introduction

CM1-86DX2

1.3 Block Diagram

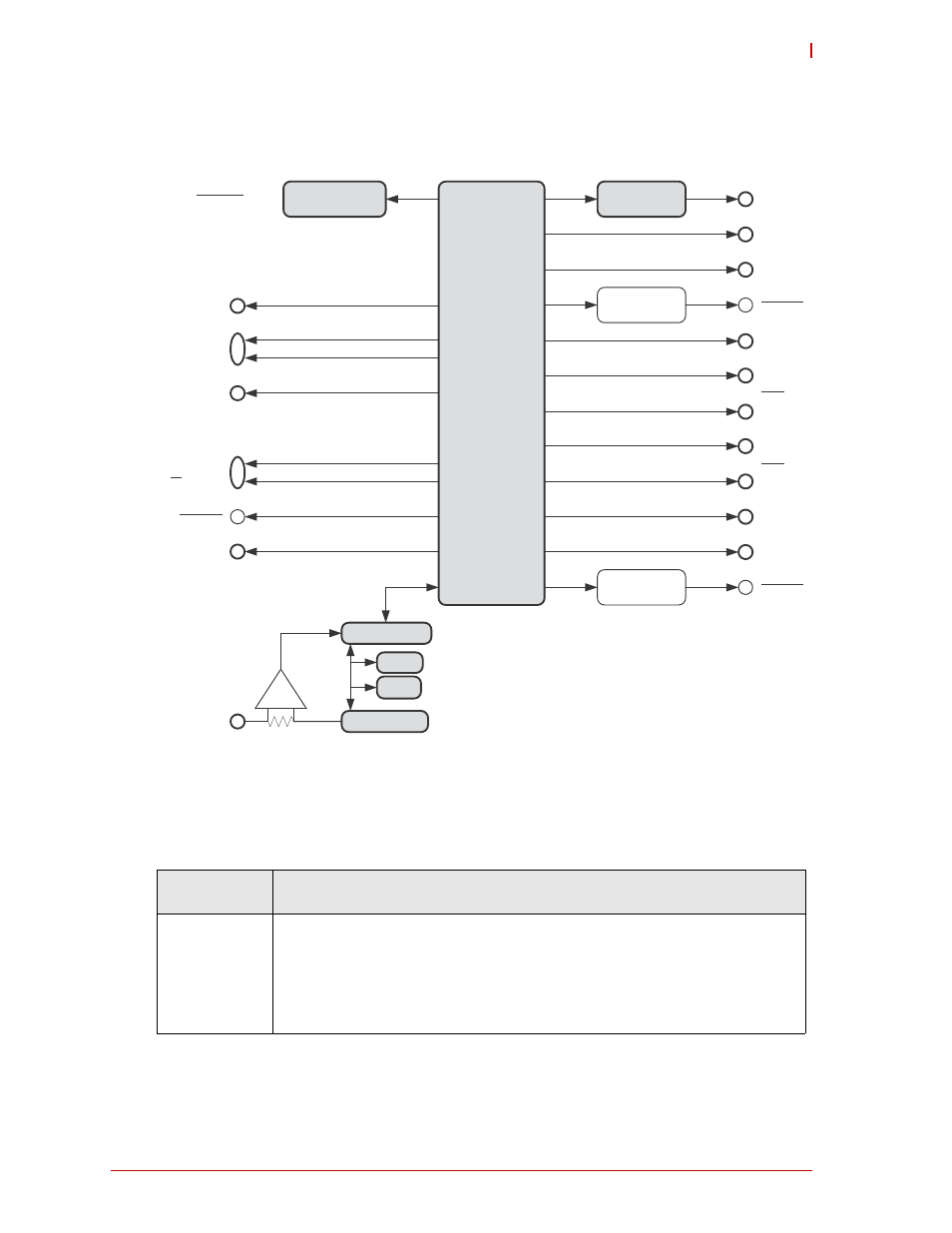

Figure 1-1: Module functional block diagram

1.4 Ordering Information

Table 1-1: CM1-86DX2 Models

Order number

Description

702-0018-10

CM1-86DX2 PC/104 CPU board with DMP Vortex86-DX2, including
heat sink, and 1GByte of memory.

Operating temp. range: -0°C … +60°C

CPU clock: 1 GHz

Memory clock: 333 MHz

Vortex86DX2

ALC886

Audio Codec

SMC / SEMA

DIAG

LM73

Power Supply

5VDC

ATX

Stack

I2C

mPCIe or mSATA

ISA

Optional:

HD Audio

RS232/485

PS/2

SATA

Option: SATA or mSATA

LCD

LVDS

VGA

PC/104

Inverter
(Backlight)

2x COM

Option: 4x COM

Speaker

512MB DDR2-400

Memory Down

VGA

LPT

I2C

8x A/D Input

ADC

I2C

DS90C385A

LCD to LVDS

JTAG

8x GPIO

3x USB 2.0

Optional:

MicroSD Socket

i210IT

Ethernet

PCIe

Optional:

GbE

ETH

PCIe

1x USB 2.0

Optional:
1GB DDR2-400

CM1-86DX2
