Features of the 10/100/1000 Mbit controller
 IEEE 802.3 compliant
 Auto Negotiation
 Audio-Video bridging
 IEEE 1588/802.1AS precision time synchronization
 IEEE 802.3Qav traffic shaper (with software extensions)
 Jumbo Frame support
 Interrupt moderation, VLAN support, IP checksum off load
 Four transmit and four receive queues
 Advanced cable diagnostics, auto MDI-X
 ECC – error correcting memory in packet buffers
 IEEE 802.3az Energy Efficient Ethernet (EEE)
 Wake-on-LAN

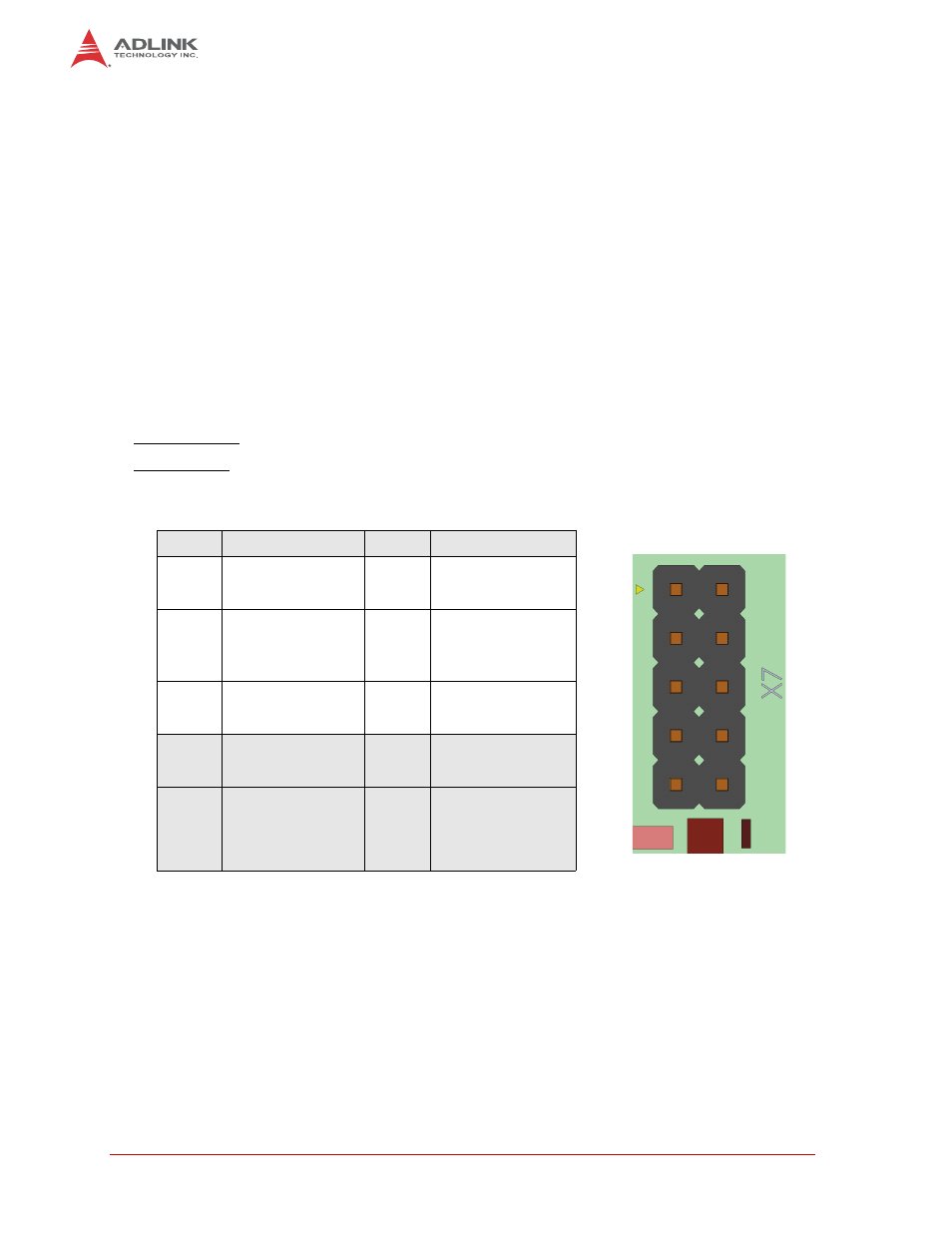

100 Mbit Ethernet Connector (X7)
Connector type: IDC10 pin header 2.54 mm
Adapter cable: Article number 862-0005-10
*The CM1-86DX2-512 model does not offer the USB function on the X7 connector.
Table 3-5: Fast Ethernet Header Signals (X7)
Pin Signal Pin Signal
1 ETH0_TXp 2 ETH0_TXn
3 ETH0_RXp 4 ETH0_PE
(Protection Earth for
shielded Ethernet
cables)
5 NC 6 ETH0_RXn
7* USB2_p 8* USB2_n
9 +VCC_USB2 10 GND_USB2
