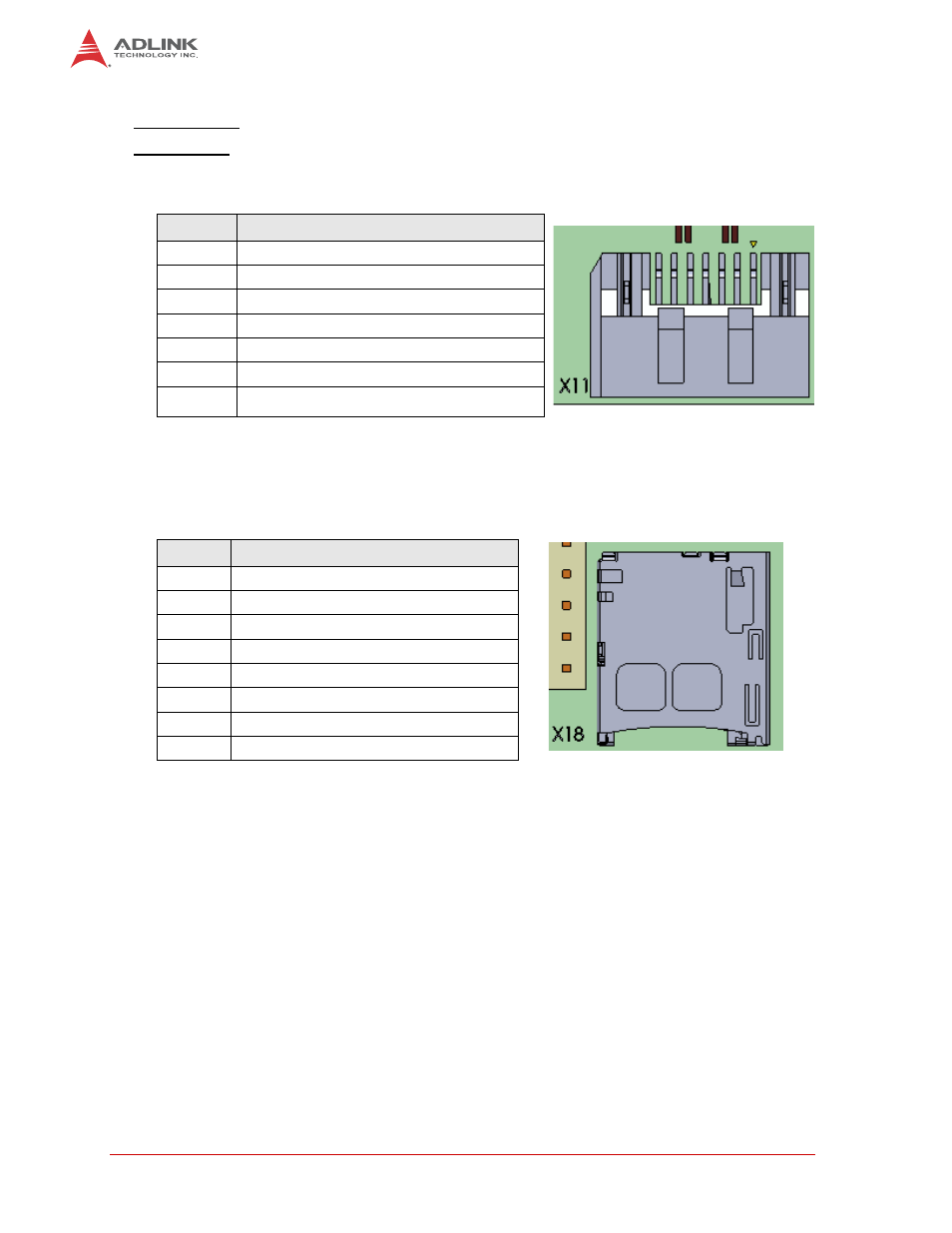

background image

28

Module Description

SATA Connector (X11)

Connector type: SATA

Adapter cable: n/a

MicroSD Connector (X18)

Connector type: MicroSD

Table 3-8: SATA Connector Signals (X11)

Pin

Signal

1

GND

2

Data_TX+

3

Data_TX-

4

GND

5

Data_RX-

6

Data_RX+

7

GND

Table 3-9: MicroSD Connector Signals (X18)

Pin

Signal

1

D2

2

D3

3

CMD

4

VDD

5

CLK

6

GND

7

D0

8

D1
