Module Description 25
CM1-86DX2

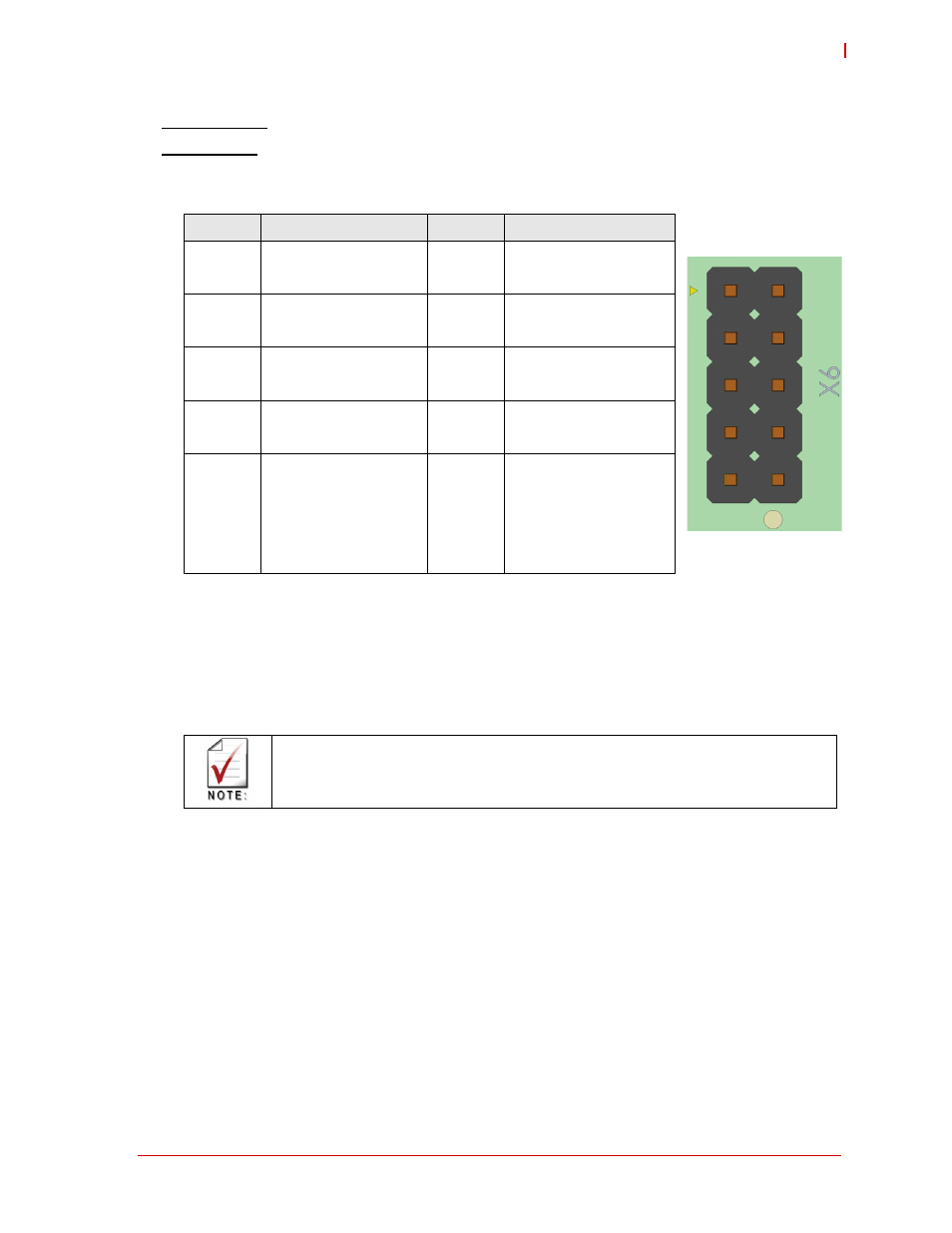

Gbit Ethernet Connector (X6)
Connector type: DC10 pin header 2.54 mm
Adapter cable: Article number 862-0088-10
3.5 On-Board Power Supply
The on-board power supply generates all necessary voltages from the single supply voltage of
5 volts. The generated 3.3 volts are available on the connectors “Flat Panel”, “LVDS” and
“AnalogIn”.
Table 3-6: Gbit Ethernet Header Signals (X6)
Pin Signal Pin Signal
1 ETH1_MX0n 2 ETH1_MX0p
3 ETH1_MX1n 4 ETH1_MX1p
5 ETH1_PE (Protection
Earth for shielded
Ethernet cables) 6 n. c.
7 ETH1_MX2n 8 ETH1_MX2p
9 ETH1_MX3n 10 ETH1_MX3p
This 3.3V must not be used to supply external electronic devices with high power
consumption like other PC/104 boards or displays.
