26 Module Description

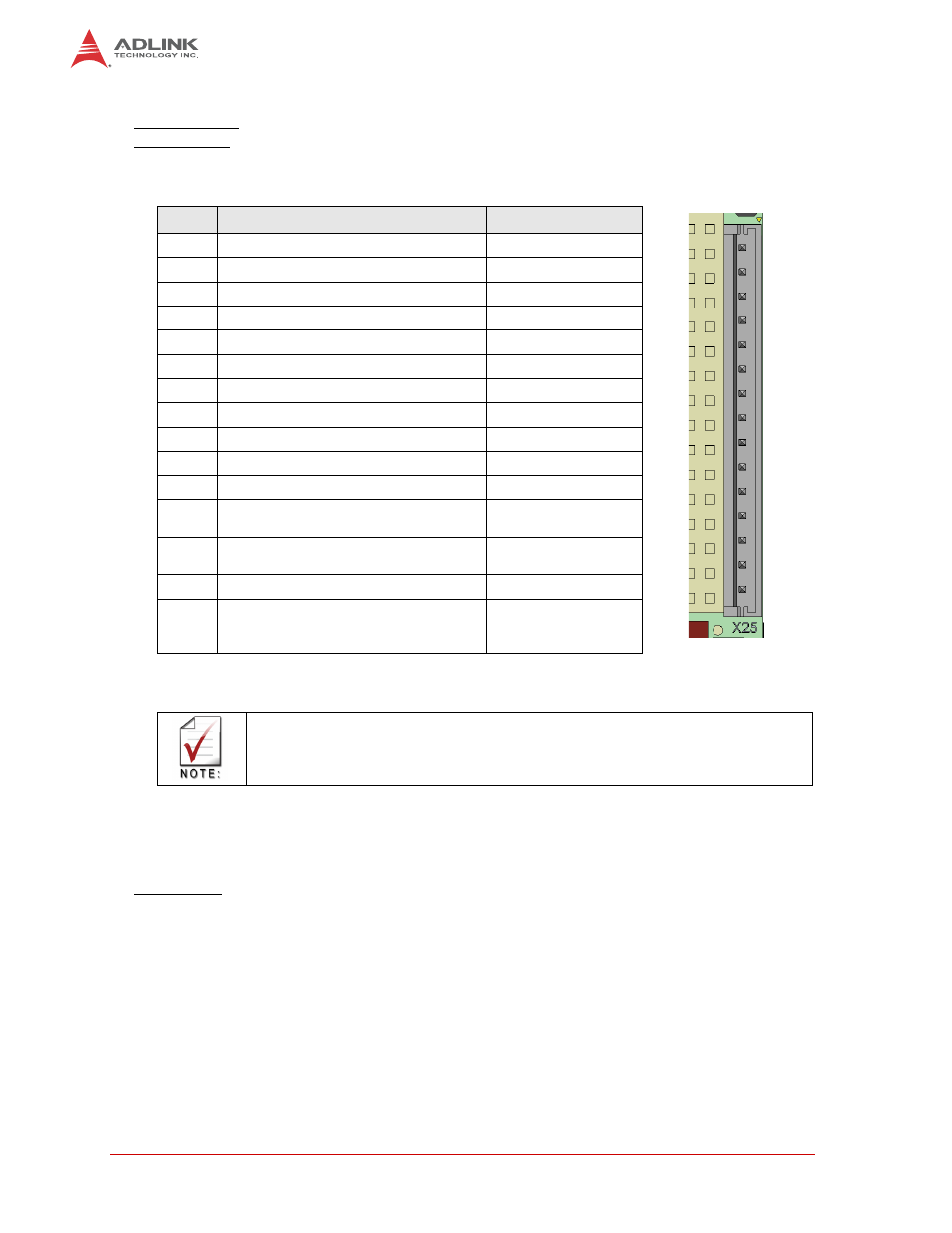

Power Connector (X25)
Connector type: JST B15B-EH-A 15 pin
Adapter cable: Article number 862-0044-10
Real Time Clock Backup (BAT1)
A battery is integrated on board. This battery is necessary to power the real-time clock (RTC) if
the power supply is switched off.
Battery Type: CR1225, 3 Volt
Table 3-7: Power Connector Signals (X25)
Pin Signal (standard) Signal (5V only)
1 +5V +5V
2 GND GND
3 +5V +5V
4 GND GND
5 +5V +5V
6 +5V Standby NC
7 GND GND
8 PSON# GND
9 PWROK NC
10 NC NC
11 GND GND
12 +12V (only for PC104 slot and backlight
power supply) NC
13 +12V (only for PC104 slot and backlight
power supply) NC
14 GND GND
15 -12V (only for PC104 slot) NC
The default cable adapter supports the connection of 12V power supply. If the 5V only
power supply is required, leave these pins open. The board can also be supplied over the
PC/104 bus.
