Mechanical Specifications

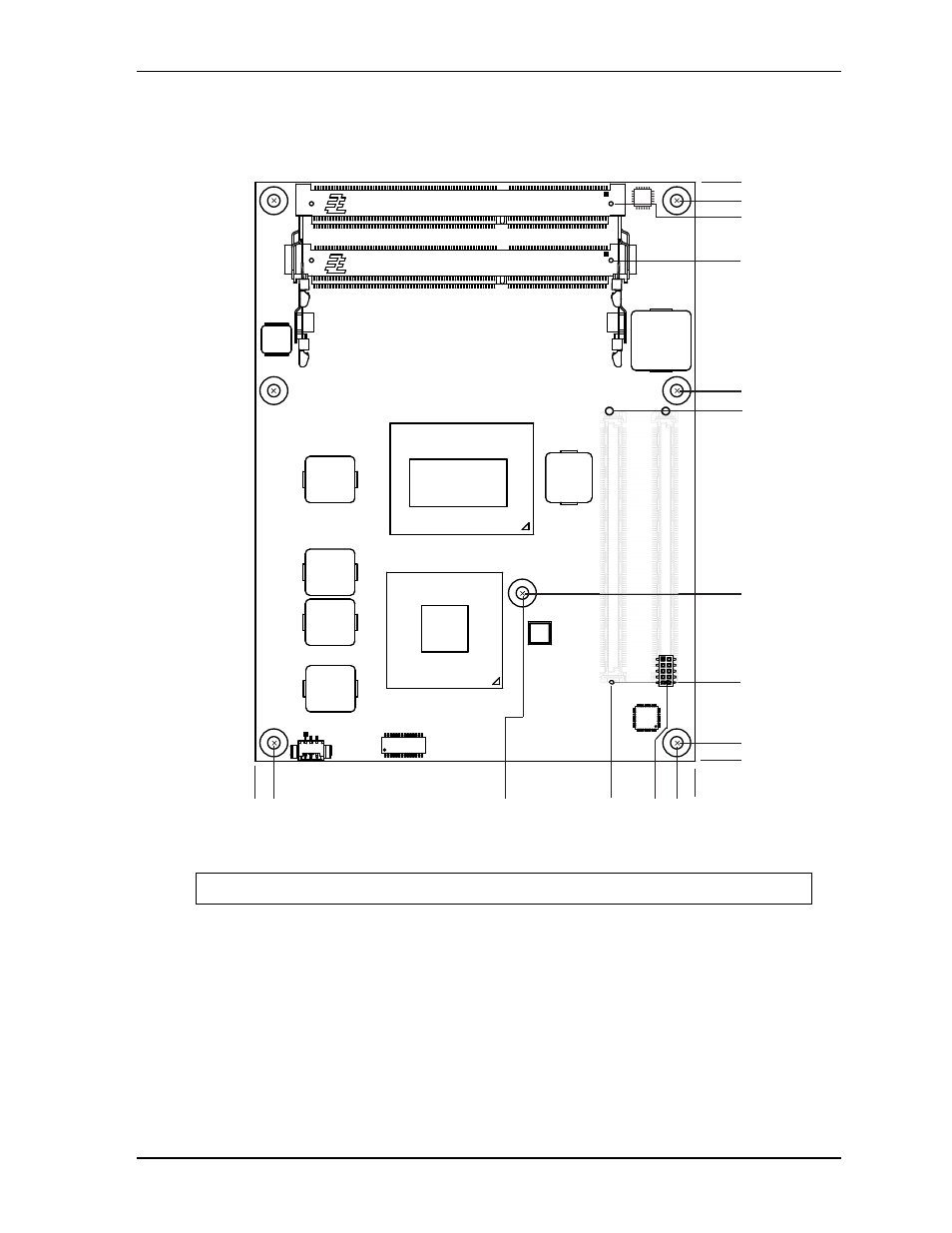

The following figure provides mechanical dimensions of the Express-IBR. Figure 2-13 shows the top-side
view of the board with measurements between mounting holes.
Figure 2-13. Mechanical Dimensions (Top Side)
NOTE All dimensions are given in inches.
Express-IBR_mech_dwg_a
0.16
0.65
1.43
0.00
4.76
4.70
4.15
3.15
2.92
4.92
3.74 3.58 3.50 3.03 2.27 0.16 0.00
