Chapter 2 Product Overview
18 Reference Manual Express-IBR
Thermal/Cooling Requirements
The Express-IBR is designed to operate at its maximum CPU speeds of 1.7GHz, 1.8GHz, 2.1GHz, 2.3GHz,
or 2.5GHz and requires a thermal solution to cool the CPU, PCH, and voltage regulators. ADLINK offers
two optional cooling solutions as well as a heat spreader platform on which to build a cooling solution. (See
Table 2-7 for descriptions of cooling options.)

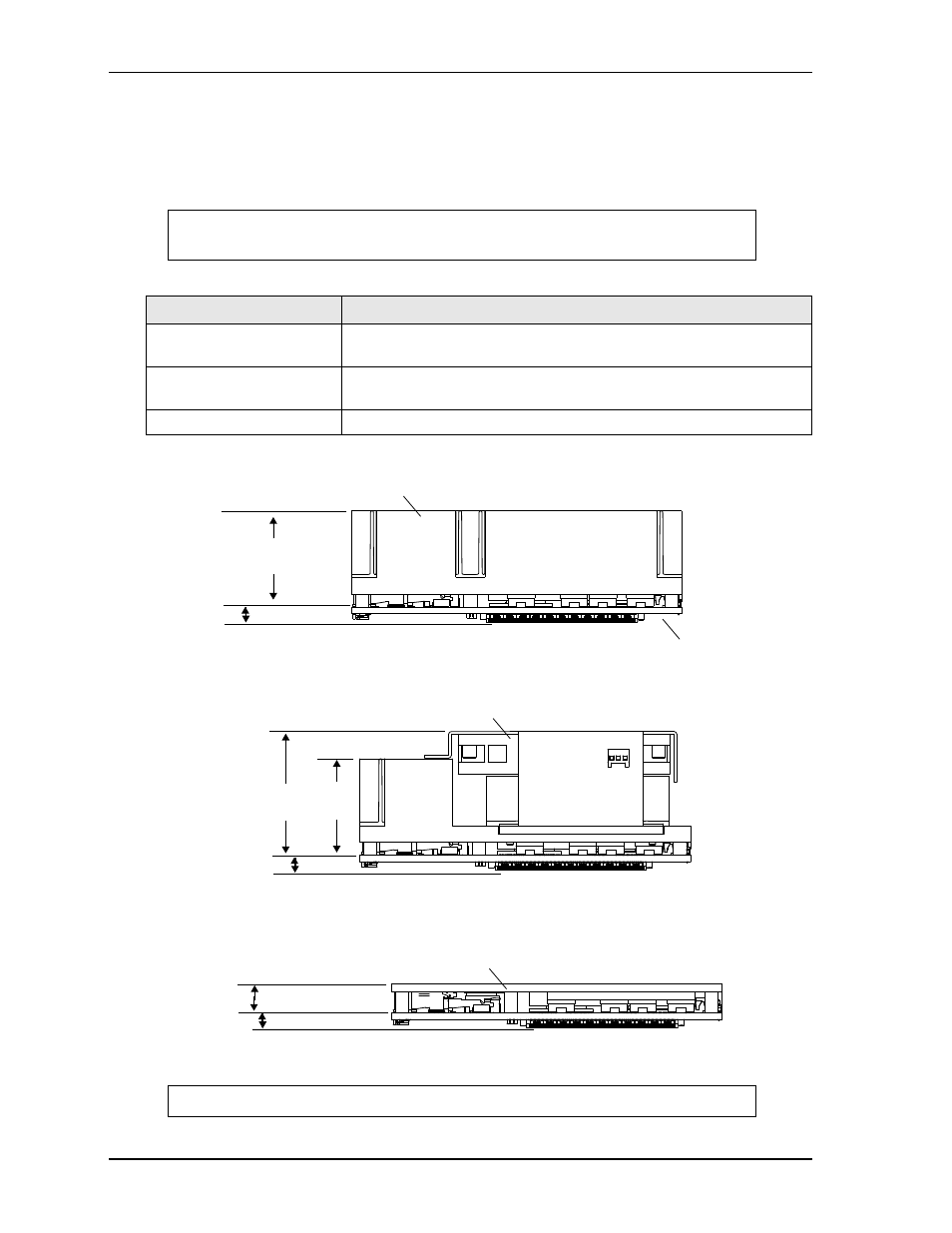

Figure 2-12. Stack Heights of Cooling Assemblies (Side Views)
NOTE The overall system design must keep the ICs within their operating temperature
specifications.
Table 2-7. ADLINK Optional Cooling Solutions
Cooling Solution Description
Passive Heat Sink
(without fan) Qualified to maintain optimal performance up to +70°C.
Active Heat Sink
(with fan) Qualified to maintain optimal performance up to +85°C.
(Note: The i7-3612QE and i7-3615QE CPUs require fans.)
Heat Spreader Provides a simple thermal platform on which to build a cooling solution.
NOTE All heights are given in inches.
IBR_Cooling_Ht_a
0.43
1.84
1.44
1.44
0.22
0.22
0.22
Heat Sink
Fan
Heat Spreader
COM
Board
