94

Motion Creator in LinkMaster

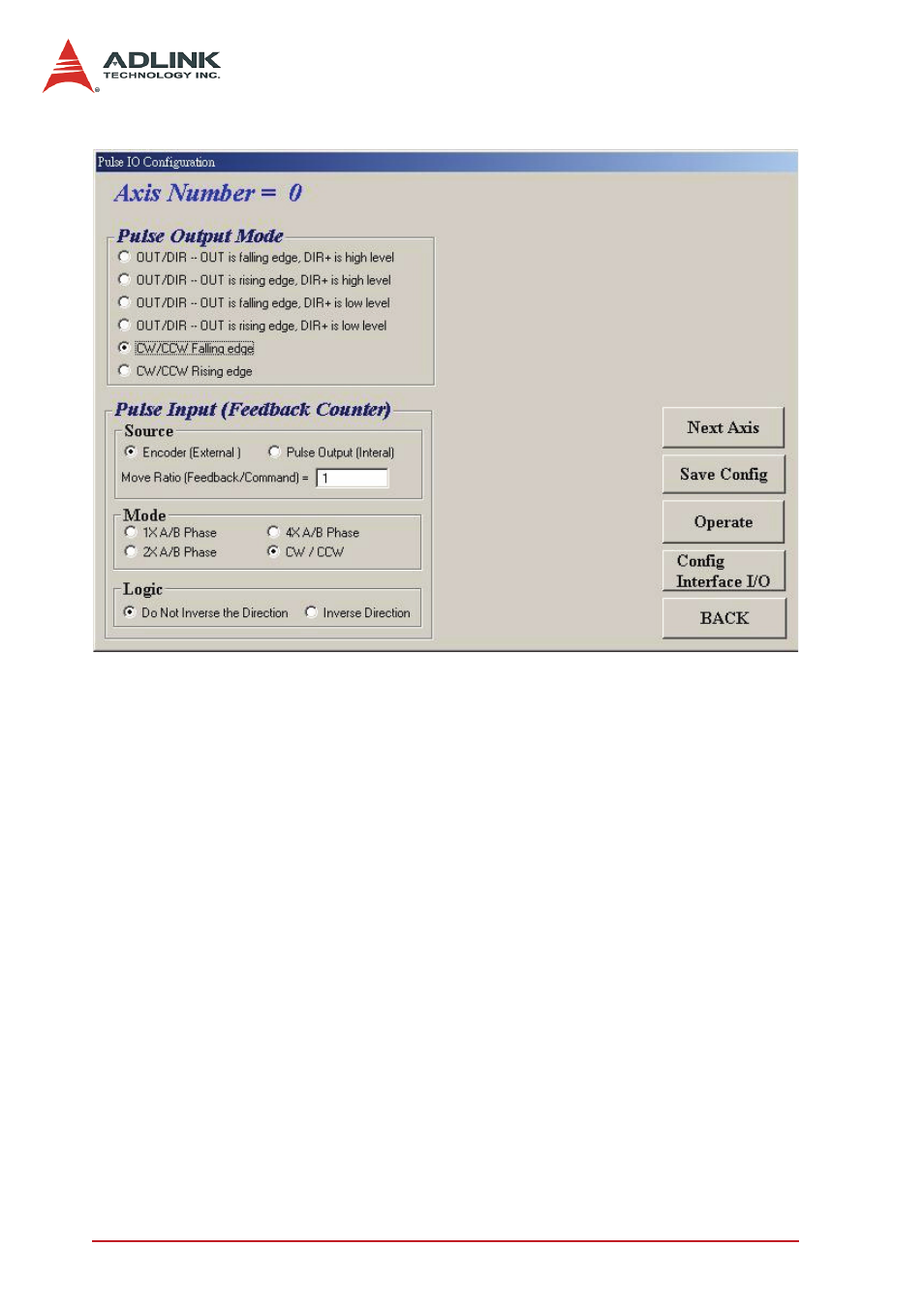

Figure 5-4: Pulse IO Configuration Menu

1. Pulse Output Mode: Select the output mode of the pulse

signal (OUT/ DIR). The related function call is
HSL_M_set_pls_outmode().

2. Pulse Input: Sets the configurations of the Pulse input

signal(EA/EB). The related function calls are
HSL_M_set_pls_iptmode(),
HSL_M_set_feedback_src().

3. Buttons:

X

Next Axis: Change operating axis.

X

Save Config: Save current configuration to HSL-4XMO.ini.

X

Operate: Go to the operation menu, refer to section 5.3.4

X

Config Pulse: Go to the Pulse IO Configuration menu, refer
to section 5.3.3

X

Back: Return to the main menu.
