Operation Theory

53

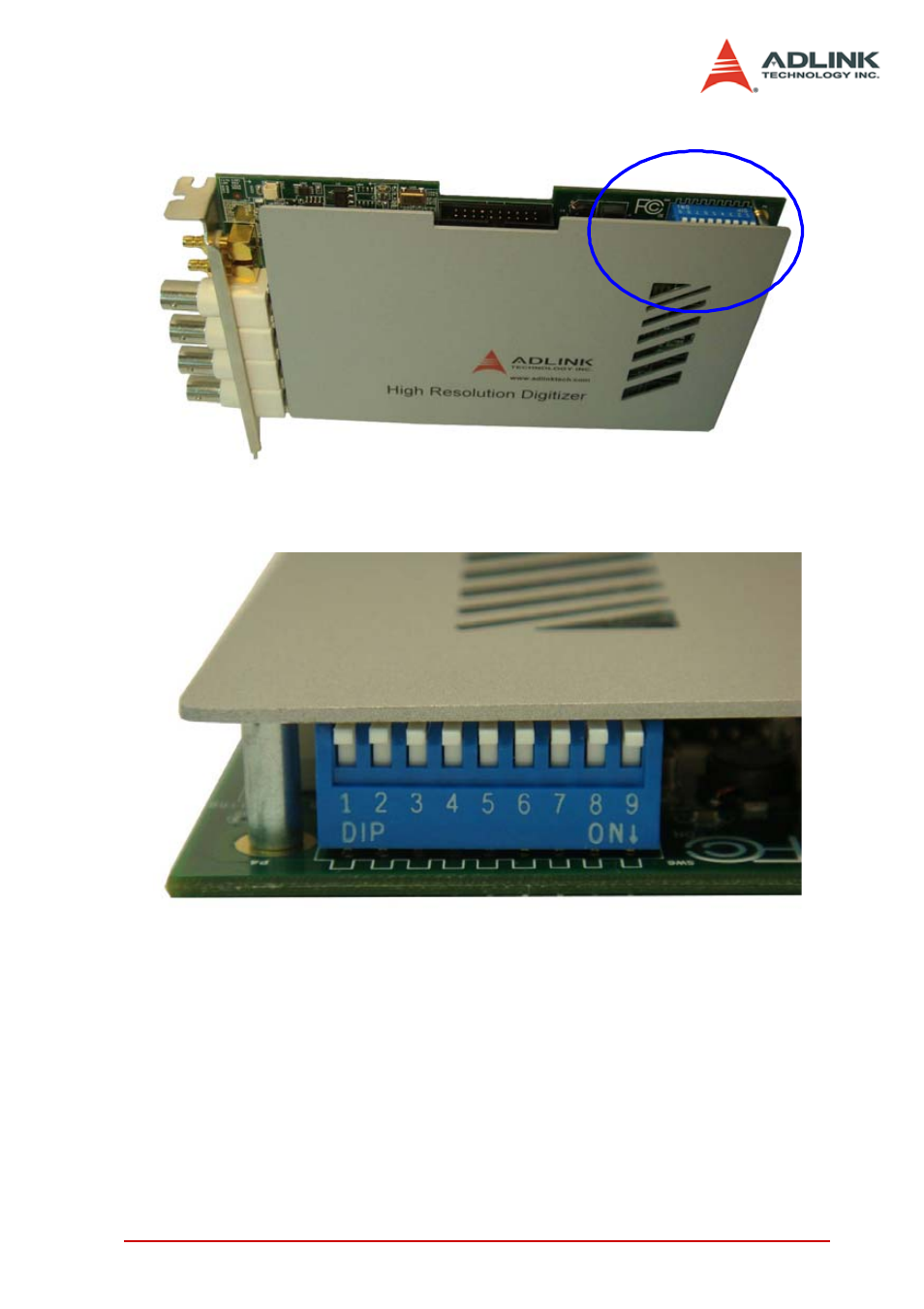

Figure 3-25: The Location of Board ID Switch

Figure 3-26: Enlargement of Board ID setting.

Note:

Only dip switches 1-5 are valid for board ID settings. Dip

switches 6- 9 are unused. When a dip switch is switched

to ‘ON’, it represents ‘1’, the opposite direction represents

‘0’.
