500 Series Display Cases Service and Installation Manual
9
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
13 12 6
2
4
10
9
11
7
3
5
1
16 15 14
8
6

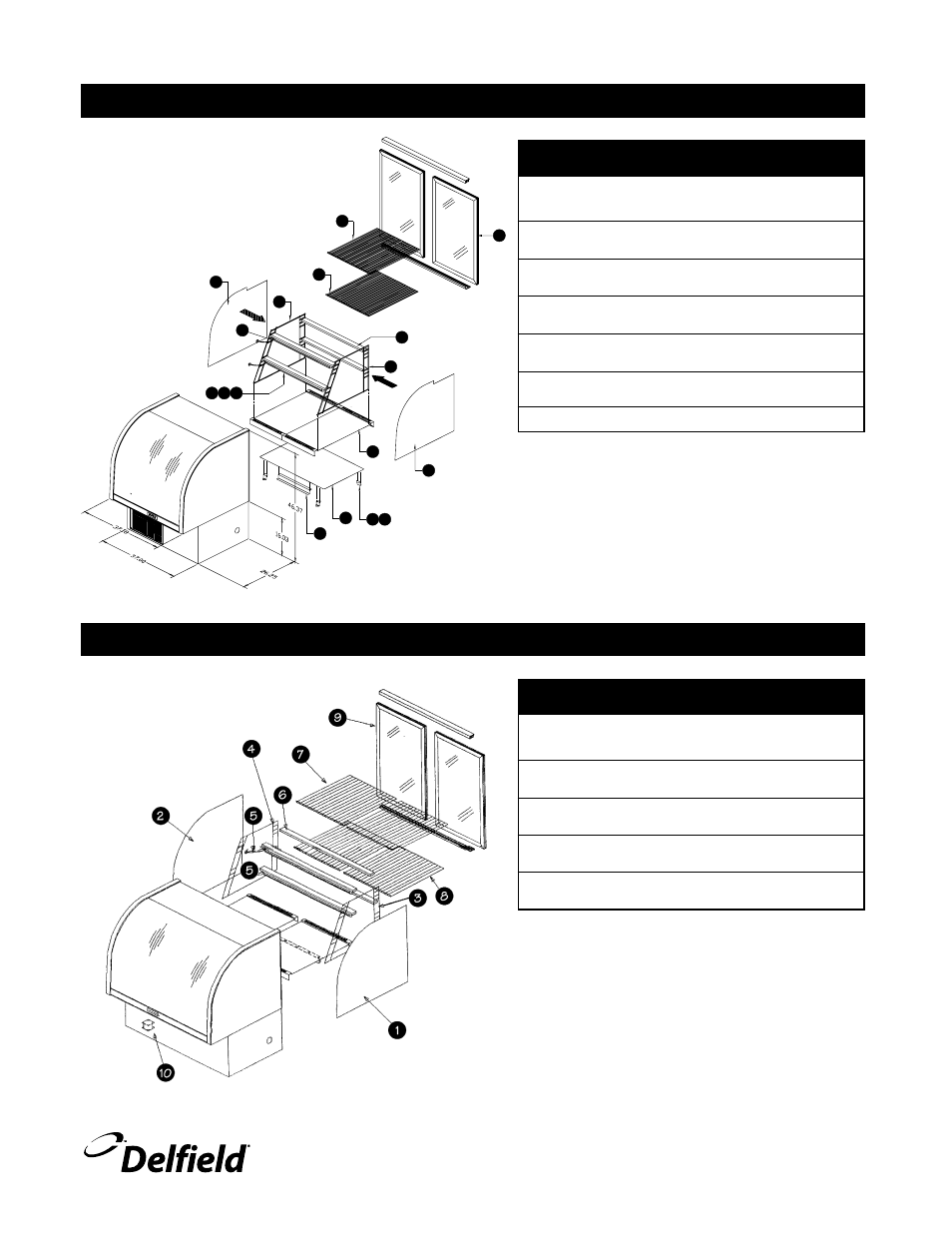

REPLACEMENT PARTS LIST FOR 537-CD
DELFIELD
KEY qUANTITY PART# DESCRIPTION
1 1 001-3133 mirror, acrylic, RH, 500-CD
2 1 001-3134 mirror, acrylic, LH, 500-CD
3 1 397-8121 holder, adj. shelf, RH
4 1 397-8120 holder, adj. shelf, LH
5 2 001-5285 diffuser, air 537-CD/CR
6 2 XMK00127 fixture, flour. light, 24 remote
7 4 001-5407 support, shelf, 537-CD/CR
8 2 001-5026 clip, air diffuser, 537-CD
9 1 397-8137 shelf, adjustable, 21” x 33”
10 1 397-8138 shelf, adjustable, 26” x 33”
11 1 323-7490 door set, with lock, 537-CD/CR
12 4 932-1095 stud, threaded, s/s, 1/4-20 x .75
13 4 932-1401 nut, 1/4-20, locking
Please Note: Items not shown on exploded view are listed on page 17.
Door locks #323-3986 & door keys #323-3988
REPLACEMENT PARTS LIST FOR 549-CD
DELFIELD
KEY qUANTITY PART# DESCRIPTION
1 1 001-3133 mirror, acrylic, RH, 500-CD
2 1 001-3134 mirror, acrylic, LH, 500-CD
3 1 397-8121 holder, adj. shelf, RH
4 1 397-8120 holder, adj. shelf, LH
5 2 XMK00128 fixture, flour. light, 36 remote
6 4 001-5235 shelf support
7 2 397-8122 shelf, top
8 2 397-8123 shelf, bottom
9 1 323-4697 door assembly, with lock
10 1 216-2677 fan, axial
Please Note: Items not shown on exploded view are listed on page 17.
Door locks #323-3986 & door keys #323-3988
