500 Series Display Cases Service and Installation Manual
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
14

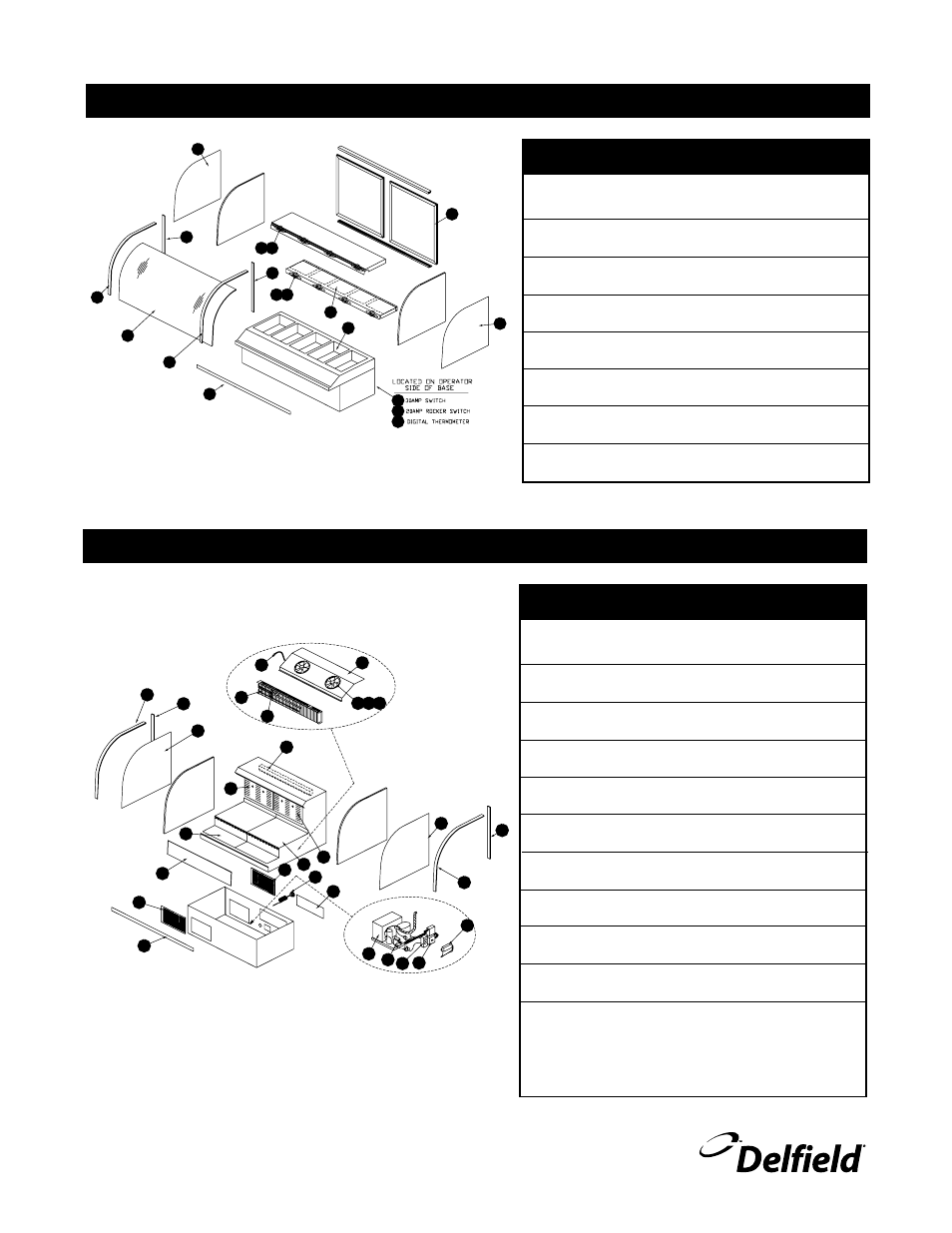

REPLACEMENT PARTS LIST FOR 573-CH
11 11 11 11
9
8
7
16
12
2
11
13
14
1
6
5
3 4
10
3 4
15 DELFIELD
KEY PART# DESCRIPTION
1 323-4069 door set, 73” curved glass
2 345-5443 glass, curved, 1” insulated, 71”
3 219-3959 bulb, 25W, Teflon coated, clear
4 219-3960 lamp holder, twin-threaded
5 219-3970 heater, pad, 115V/90W
6 XMK00106 warmer, food, 208V, no drain
7 219-4212 switch, 30A 120/277V
8 219-0154 switch, rocker, 20A/125V, 15A/250V
9 351-6059 thermometer, digital, solar/batt
10 105-0183 extrusion, polyethylene, blk, vertical, RH
11 105-0173 extrusion, polyethylene, blk, vertical, LH
12 105-0184 extrusion, polyethylene, blk, curved, RH
13 105-0174 extrusion, polyethylene, blk, curved, LH
14 001-5414 trim, side, exterior, RH
15 001-5415 trim, side, exterior, LH
16 001-6867 trim, front, laminate
REPLACEMENT PARTS LIST FOR 549-OR
14
13
16
9
8
14
25 23
24 22
21
12
11
15
20
19
9
10
18
17
18
17
10
4 3 2
1 5
6
7
DELFIELD
KEY PART# DESCRIPTION
1 001-5558 baffle, fan 49”
2 216-2667 motor, fan, morrill
3 351-6075 blade, fan, 7” dia., aluminum
4 397-8070 bracket, fan motor
5 218-2414 harness, fan motor, 78”
6 351-6097 coil, evaporator, custom, 49”
7 351-6273 valve, expansion, 1/4, HI, 404A
8 XMK-00132 fixture, fluorescent light, 36”
9 001-5554 back, interior, louvered
10 001-5555 diffuser, air, LH & RH
11 105-0183 extrusion, polyethylene, blk, vert, RH
12 105-0173 extrusion, polyethylene, blk, vert, LH
13 105-0184 extrusion, polyethylene, blk, curved, RH
14 105-0174 extrusion, polyethylene, blk, curved, LH
15 001-5414 trim, side, exterior, RH
16 001-5415 trim, side, exterior LH
17 001-6855 trim, front, laminate, 549
18 001-5278 louvers, s/s, 15 x 17
19 351-6038 thermometer, dial
20 001-5243 panel, access
21 219-3903 ballast, rapid start, 36” lamp
22 219-3919 switch, 15A/120V
23 351-6247 control, pressure, high
24 509-0025 control, temperature, -30-100
25 352-6731 condensing unit, 1/2 hp, R-404A, med
