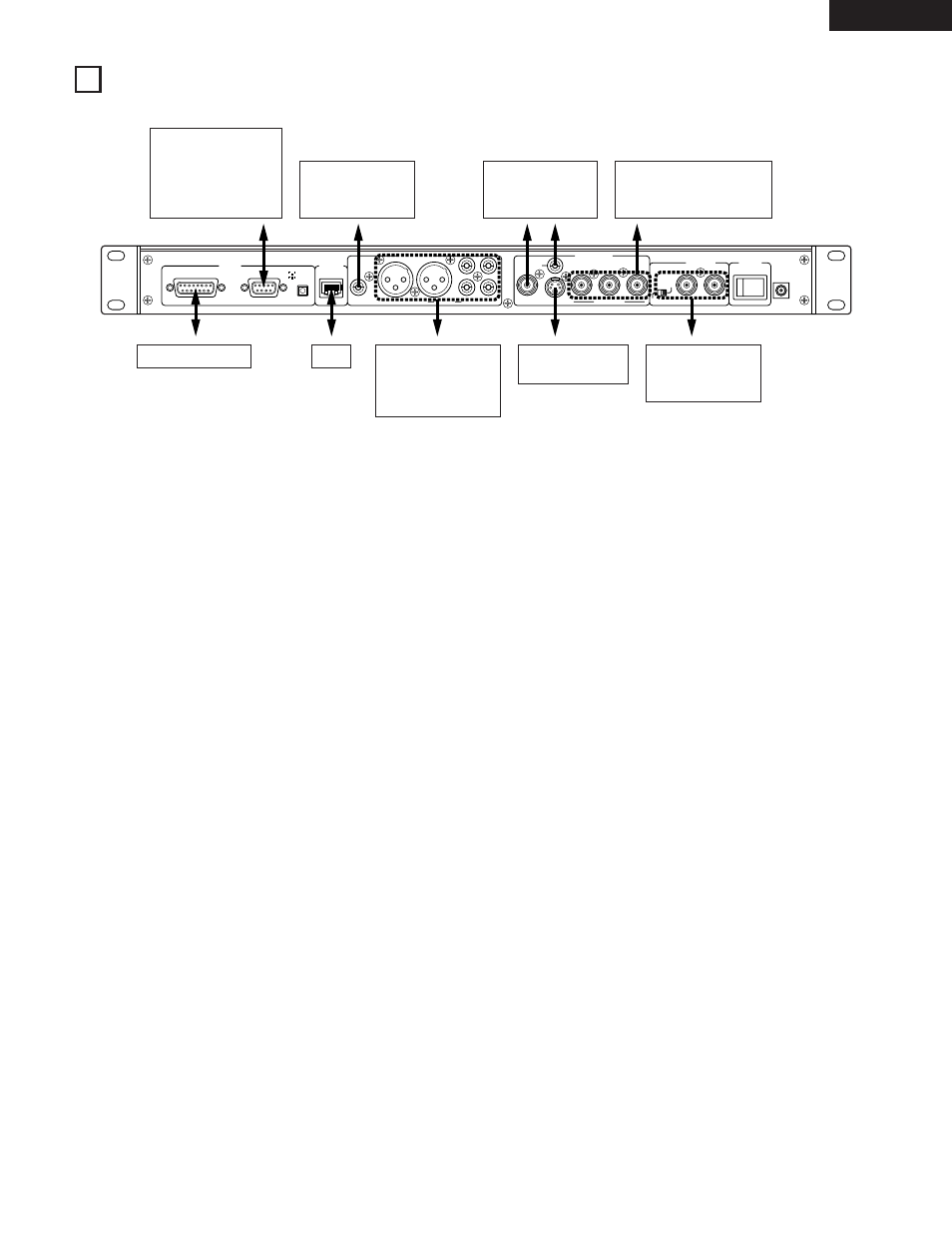

8 CONNECTIONS TO EXTERNAL DEVICES
1. Connect the PARALLEL REMOTE terminal to conduct parallel control.
2. Connect the SERIAL REMOTE terminal to conduct external serial control.
*1) Use a serial straight-through cable for connection with a computer.
*2) This terminal is for both RS232C and RS422A. Be sure to set the RS232C/RS422A selector switch to the proper position.
3. Connect the ETHERNET terminal to conduct 10 Base-T/100 Base-TX LAN control.
4. Connect the DIGITAL AUDIO OUTPUT terminal to use the digital audio output.
5. Connect the ANALOG AUDIO OUTPUT terminals to use the analog audio output.
*1) There are three sets of analog audio outputs that output the same audio signals: two sets of RCA outputs and one set of XLR
outputs.
6. Use the COMPOSITE VIDEO OUTPUT terminal to connect the DN-V1700 to the composite video input of an video monitor (TV, etc.).
*1) To connect to a device other than a video monitor, the connected device must be terminated at 75
Ω
/ohms.
*2) The BNC and RCA terminals output the same composite video signal.
7. Use the S-VIDEO OUTPUT terminal to connect the DN-V1700 to a video monitor (TV, etc.) with an S-Video input. The brightness signal
(Y) and color difference signal (C) are output separately, resulting in a more defined image than with the composite video signal.
8. Use the COMPONENT VIDEO OUTPUT terminal to connect the DN-V1700 to a video monitor (TV, etc.) with a component video input.
The brightness signal (Y) and color difference signals (C) are divided and the different color difference signals are output separately,
resulting in a more defined image than with the composite S-Video signal.
