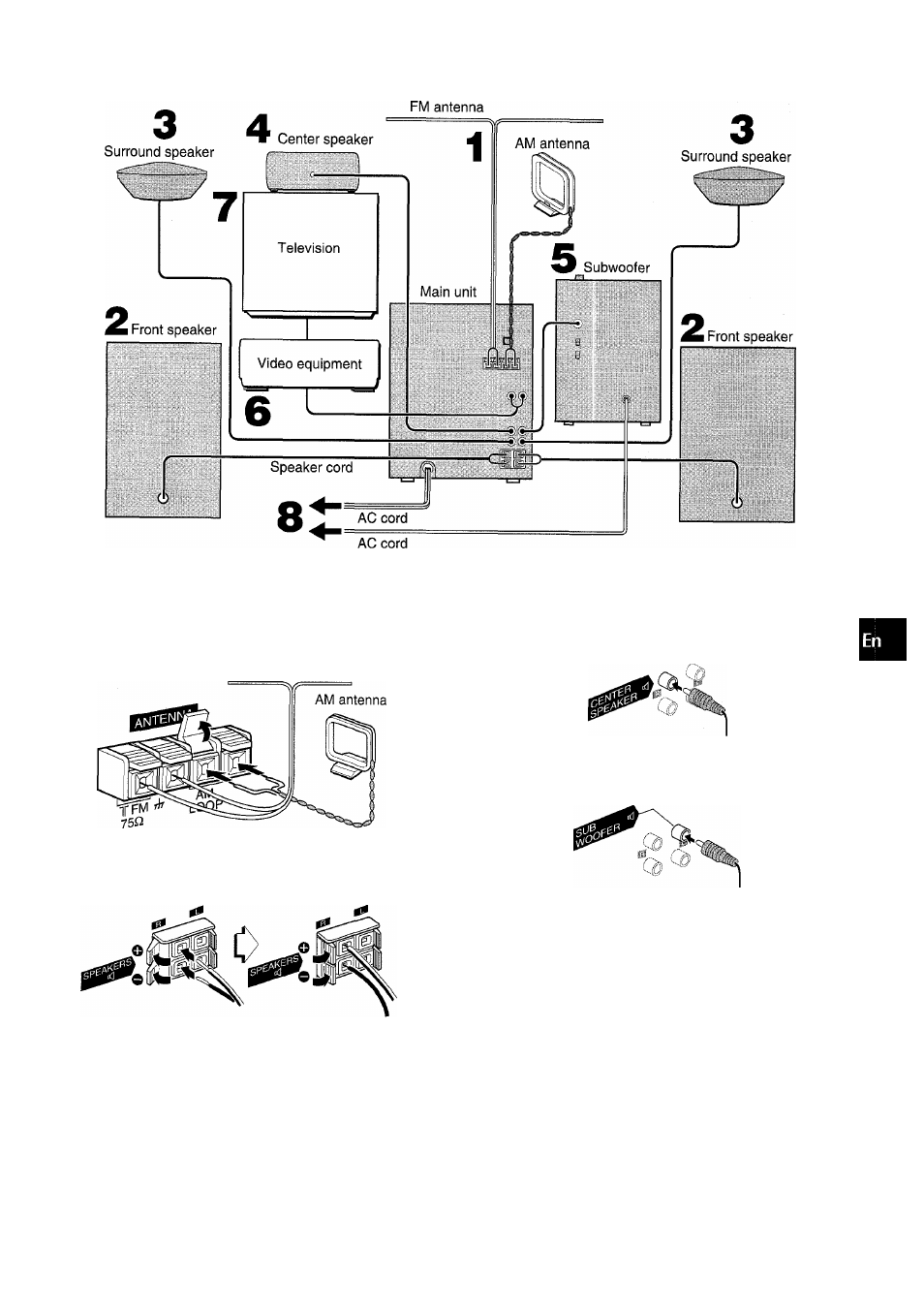

1 Connect the supplied antennas.
Connect the FM antenna to FM 75 W terminals and the AM
antenna to AM LOOP terminal.
FM antenna
2 Connect the front speakers.
The speaker placed on the right side of the unit facing you is
“the right speaker” and another one is “the left speaker”.
The cord with white stripe should be connected to O terminals
and the other cords to O terminals.
3 Connect the surround speakers.
Connect the surround speaker cords to SURROUND
SPEAKERS terminals.
There is no difference between the surround speakers. Both
speakers can be connected as R (right) or L (left).
1
4 Connect the center speaker.
Connect the center speaker cord to CENTER SPEAKER
terminal.
5 Connect the subwoofer.
Connect the subwoofer cord to SUBWOOFER terminal.
• Refer to the Operating lnstractionsofTS-W45 for the details.
6 Connect the video equipment.
Connect VIDEO/AUX jack of this unit to the audio output jack
of the video equipment with an optional audio connecting cord.
7 Connect the Television to the video equipment.
Refer to the Operating Instructions of the connected equipment
for details.
8 Connect the AC cord to an AC outlet.
The game Demo will begin when the AC cord is plugged into
an AC outlet. See page 7 “Game Demo” for details.
