E-Class 57
Approved Media
To achieve optimum print quality and maximum printhead life, Datamax specifies the use
of DATAMAX
®
brand media and ribbons. These supplies are specially formulated for use
in our printers; use of non-Datamax supplies may affect the print quality, performance,
and life of the printer or its components.
For a current list of approved media and ribbons for use in direct thermal and thermal
transfer applications, please contact a Media Representative at (407) 523-5650.

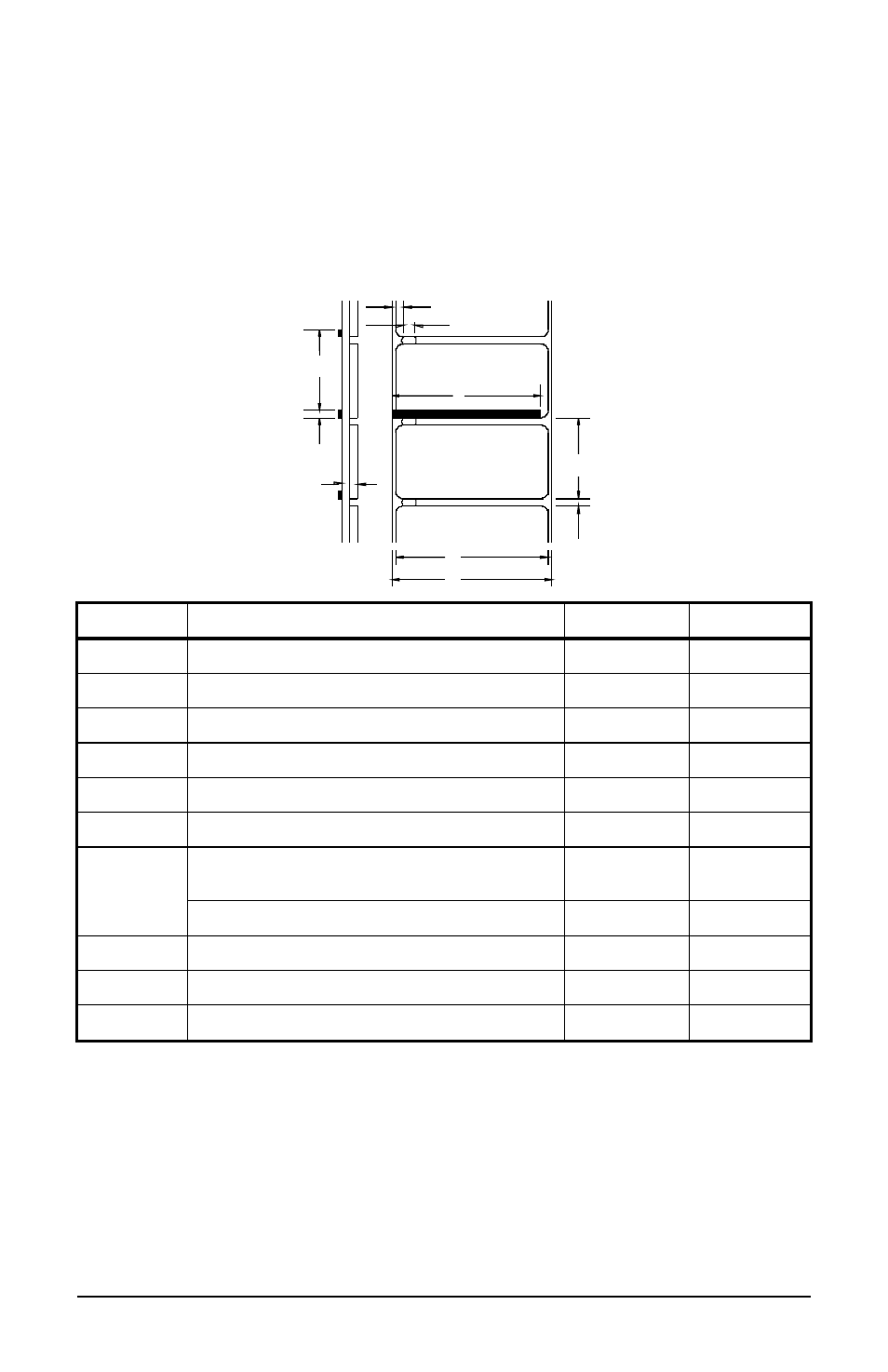

E
A
B
C
D
G
H
I
J
F
Designator Description Maximum
[1]
Minimum
[1]
A Label width 4.09 1.00
B Backing width 4.30 1.00
C Gap between labels .25 .10
D Label length 24
[3]
.375
[4]
E Total thickness .010
[6]
.0025
F Notch opening width .50 .20
Distance from the edge of the media to
the media sensor aperture (left justified)
.175
.125
G
with the Adjustable Media Sensor option 2.94 .125
H Reflective mark width
[2]
4.10 .50
I Distance between reflective marks 24
[3]
.375
[5]
J Reflective mark length .25 .10
[1]
Units of measure are in inches.
[2]
The reflective (black) mark must be carbon based, placed on the backside of the stock,
and the reflectance shall be less than 10% at wavelengths of 950 and 640 nm.
[3]
The label length may vary up to 99 inches with printable area not exceeding the
maximum label length.
[4]
This distance is inclusive of the minimum gap between labels. Min length of 1.25 inches
(31.8mm) with optional Cutter installed.
[5]
This distance is inclusive of the minimum reflective mark.
[6]
.007 inches (.117 mm) w/Standard Cutter, .005 inches (.127 mm) w/LD Cutter
