38 E-Class
TUE NOVEMBER 15, 2005 19:29 236
VER: E4204 - 04.21 07/28/03
BOOT 83-2279-04H
CODE 83-2280-04W
FONT 83-2431-01A
CPLD 59-2170-01C
INTERNAL FLASH MODULE PRESENT
SYSTEM RAM CHECKS____ GOOD
SYSTEM RAM SIZE___ 2015 KBYTES
SYSTEM RAM AVAIL__ 1244 KBYTES
REG POWER SUPPLY__ YES
INPUT VALUES
PAPER_____________ 255
POT_______________ 113
TRAN______________ 255
REFL______________ 149
RIBN______________ 87
TEMP______________ 48
VOLT______________ 223
CONFIGURATION
DIRECT THERMAL
SERIAL PORT SELECTED
19.2; 8BITS
EDGE
CONT FORM LENGTH__ 0
PRESENT ADJUST____ 127
SOP ADJUST________ 127
TOF LOW___________ 0 0
TOF DELTA_________ 10 10
TOF GAIN__________ 12 10
OOS MAXVOLT_______ 3 3
LABEL ALIGNMENT___ NO
ALIGN LENGTH______ 100
STOP LOCATION_____ HOST
IMPUT MODE________ DPL
HEAT______________ 10
COUNTER INFORMATION
ABSOLUTE VALUES 6-18-2004
LENGTH____ 773 INCHES
TIME______ 20 HOURS
RESETTABLE VALUES 6-22-2004
LENGTH____ 576 INCHES
TIME______ 10 HOURS
MEMORY CONFIGURATION
INTERNAL MODULE A______128
SCALABLE FONTS__________64
LABEL SIZE 0416:02157 IN

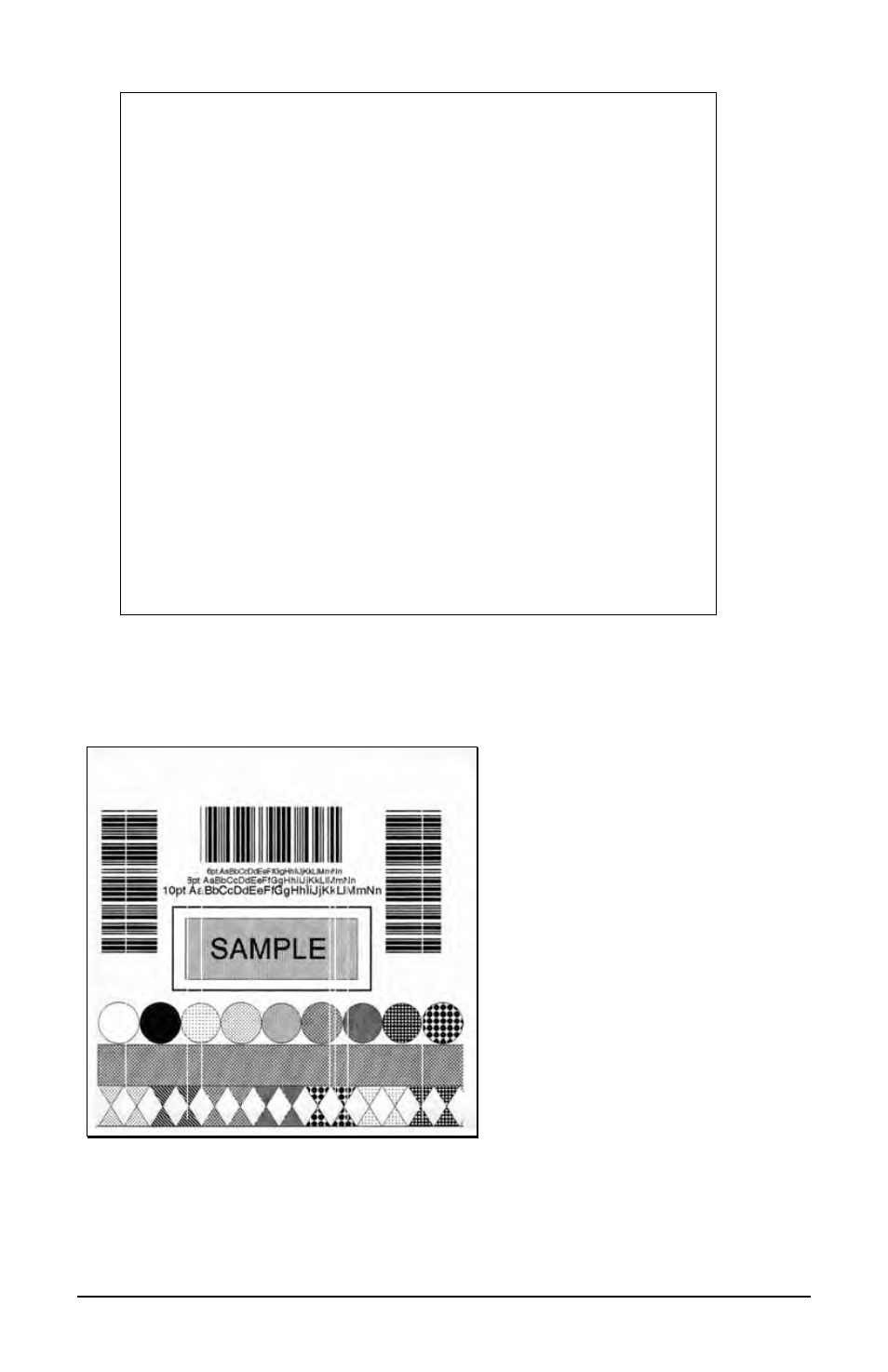

The second label printed is the Test Label. This label is used to check
the condition of the printhead, as shown below:
Faulty Label:
Instead of consistent patterns,
streaks in the direction of print
indicate a dirty or faulty
printhead. See Section 5 for
cleaning instructions.
