E-Class 11

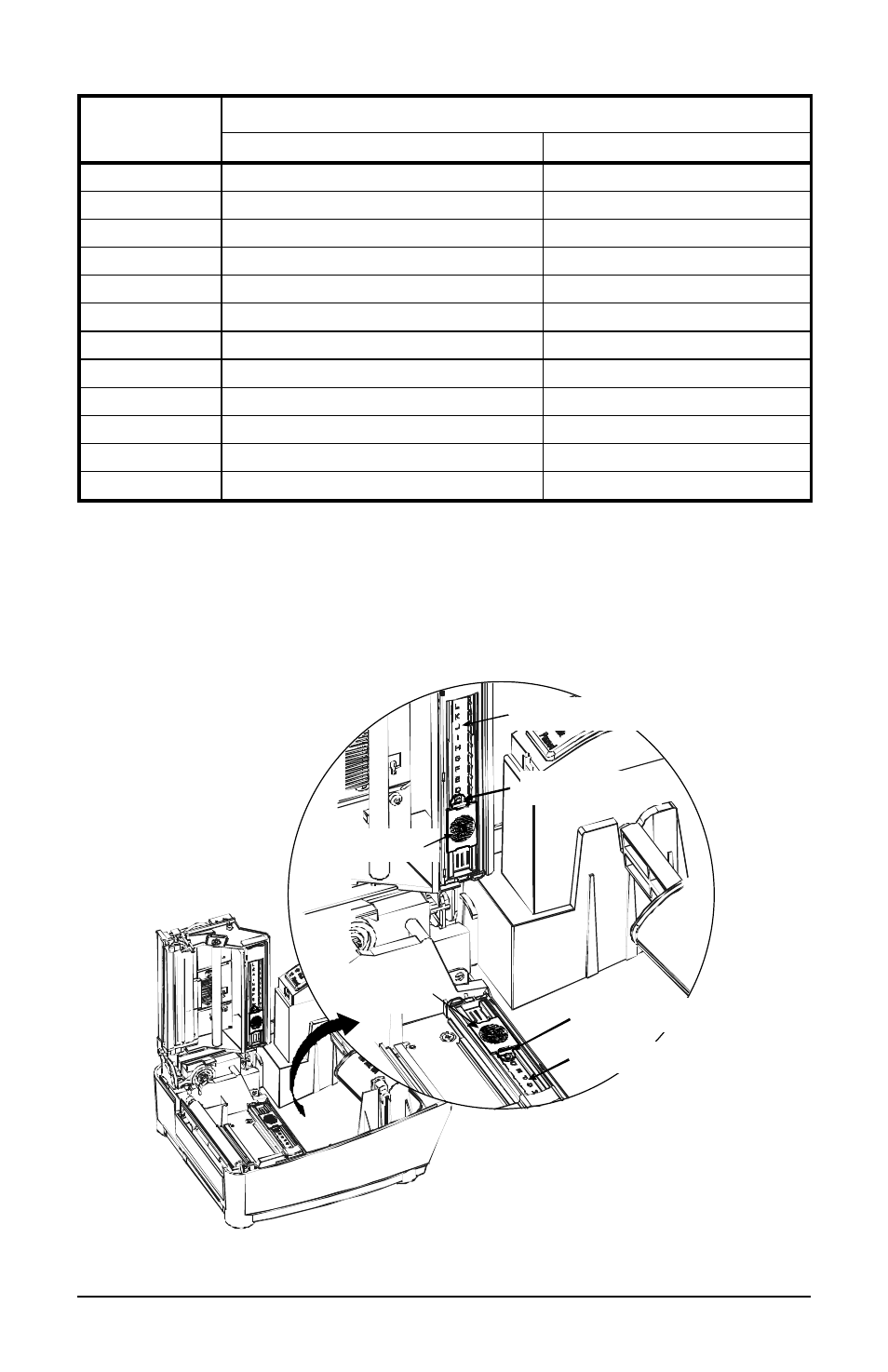

Distance of the TOF Mark from the Media Edge Reference
Letter
(inches) (millimeters)
A .180 4.6
B .500 12.7
C .750 19.1
D 1.00 25.4
E 1.25 31.8
F 1.50 38.1
G 1.75 44.5
H 2.00 50.8
I 2.25 57.2
J 2.50 63.5
K 2.75 69.9
L 3.00 76.2
Position the Adjustable Media Sensor as follows:
1. Based on the measurement made earlier, choose the Reference Letter
that best corresponds to the location of your TOF mark.
Top Slide
Bottom Slide
Reference Letters
Reference Letters
Setting Window
Setting Window
