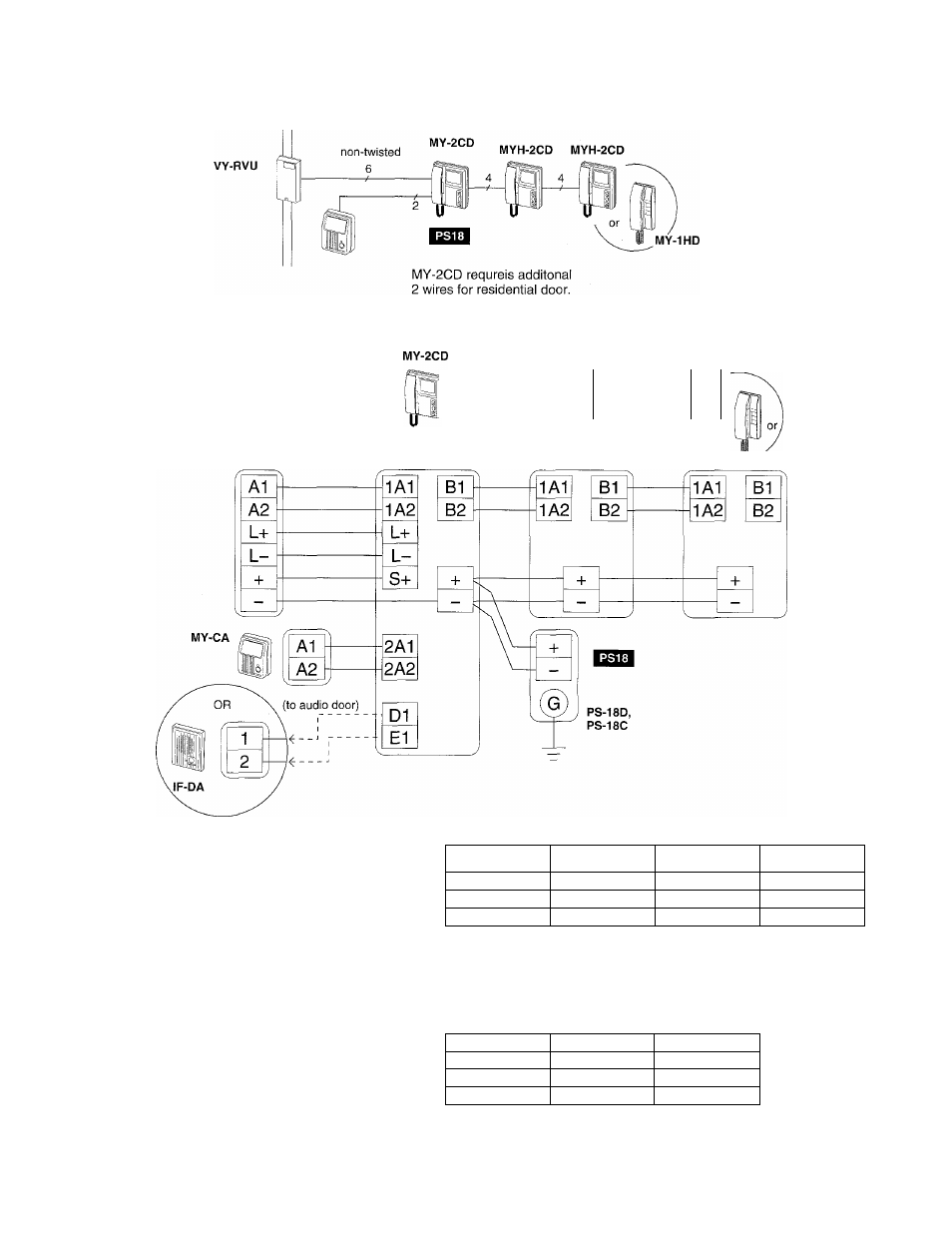

Residential monitor MY-2CD
to next VY-RVYU
VY-RVU
MYH-2CD
MYH-2CD
в
ÍL
j
Í[
о
* Run 6 conductor cable twisted or
non-twisted to MY-2CD.
* Residential door station can be
either PanTilt, wide-angle or audio
only.
* Take G terminal to earth on
PS-18D (18C), which may help to
eliminate noise from +, - lines.
* Connect A1, A2 on VY-RVU to
4-tone chime receive terminals
1 A 1 , 1 A 2 o n MY-2CD.
SW1 setting
MY-2CD
MYH-2CD
or MY-1HD
MYH-2CD
or MY-1HD
1 station
В
-
-
2 station
В
A
-
3 station
ВГ)
В
A(* **)
(*) MY-2CD B : VY system.
(**) MYH-2CD A : Terminated, B : high-impedance
I Wiring distance
VY-RVU ~ Residential monitor
Diameter
1.0mm
1.2mm
Distance
20m
25m
AWG
18AWG
16AWG
Distance
65'
80'
★ The distance is doubled with reinforced wires on
+ , -■
-9-
