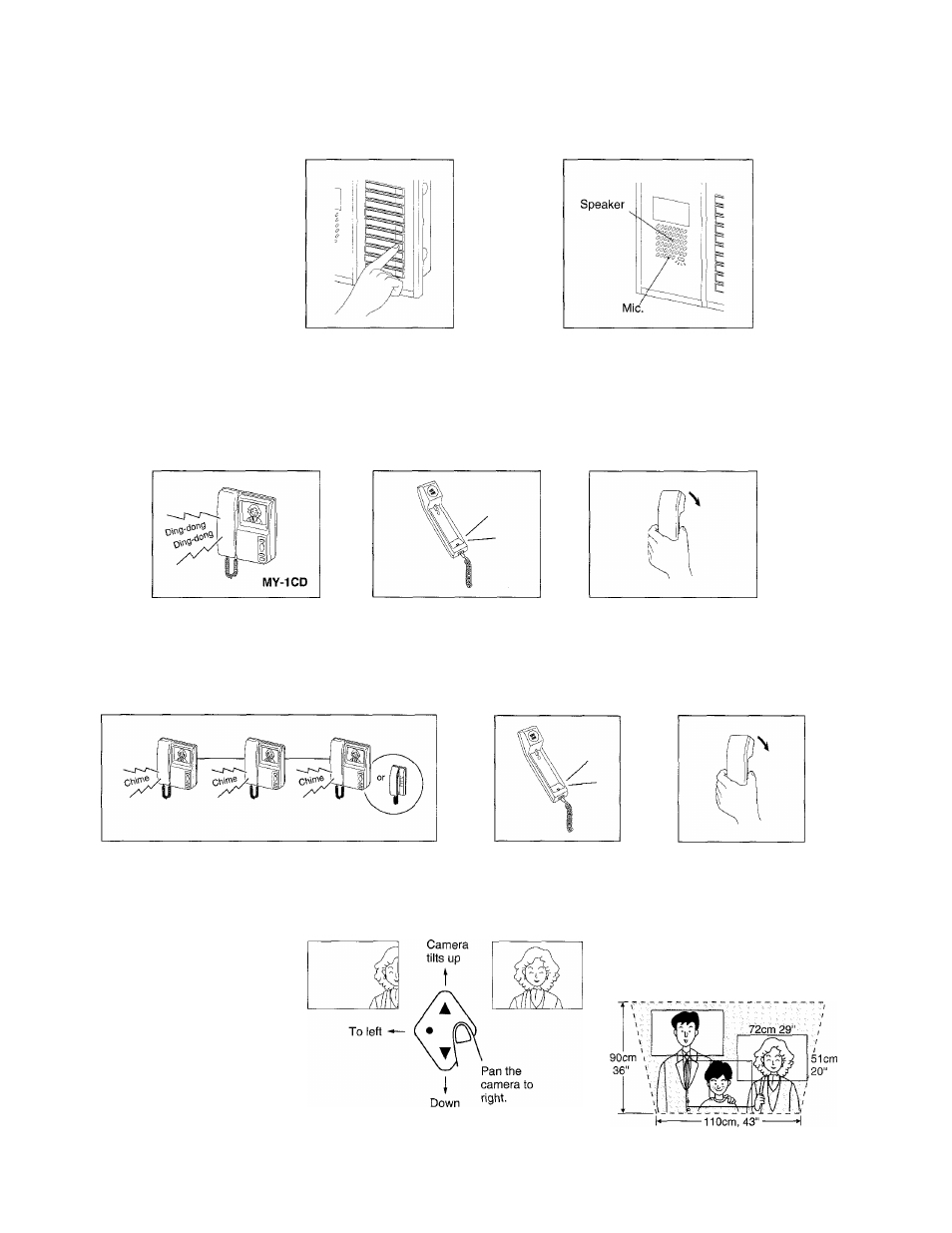

6 OPERATIONS on VY-EM and MY

■ On VY-EM entrance-call panel

Momentarily press a residence call
button.

When a room station replies, speak to
the mic, standing in front of panel

(within 50cm, 20").

•k

The channel to VY-EM can be resumed with 5-sec. time-out timer in any operation.

On MY-1CD residential monitor

Chime, 4-tone is activated.
Video monitor is turned on
with image.

Pick up handset, and

communicate.

Hang up handset.

The monitor is turned off.

On MY-2CD residential monitor

When call button is pressed, 4-tone chime sounds,
and all monitors are turned on with image.

Pick up (any) handset,

and communicate.

The monitor is turned off
upon hanging up.

Pan/tiit viewing

While the image is
alive on the monitor,
operate pan-and-tilting
the VY-EM camera
pressing the edge of
diamond-shaped pad.

The VY-EM camera

returns to initial
position, after hanging
up handset.

image viewing area

-180cm, 72"
